11811BEARING, CAMSHAFT, NO.1

main11811-0V020i201108

(L),*212

main11811-36010i200811

*107

11821BEARING, CAMSHAFT, NO.2

main11821-0V020i201108

(L),*212

main11821-36010i200811

*107

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0P070×2i200912-201107

(L)

main13050-0P071×2i201107

(L)

main13050-0V011i201108-201111

*212,MARK13050-0V011

main13050-0V030i201111-201204

*212,MARK13050-0V030

main13050-0V040i201204

*212,MARK13050-0V040

main13050-31170×2i200811

(J)

main13050-36010i200811-201001

*107

main13050-36011i201001-201110

*107,MARK13050-36011

main13050-36030i201110

*107,MARK13050-36030

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0V013i201108-201201

*212,MARK13070-0V013

main13070-0V040i201201

*212,MARK13070-0V040

main13070-36010i200811-201007

*107

main13070-36011i201007-201201

*107,MARK13070-36011

main13070-36030i201201

*107,MARK13070-36030

13506CHAIN SUB-ASSY

main13506-0P011i200912

(L)

main13506-0V010i201108

*212

main13506-31031i200811

(J)

main13506-36010i200811

*107

13511CAMSHAFT

main13501-0P021i200912-201301

(L)

main13501-0V010i201108-201301

*212

main13501-31100i200811-201301

(J)

main13501-36020i200811-201207

*107

main13501-36050i201207-201301

*107

13512CAMSHAFT, NO.2

main13502-0P021i200912-201301

(L)

main13502-0V010i201108-201301

*212

main13502-31080i200811-201301

(J)

main13502-36010i200811-201103

*107

main13502-36030i201103-201301

*107

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0P010i200912

(L)

main13540-0V010i201108-201301

*212

main13540-31021i200811

(J)

main13540-36010i200811-201301

*107

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0V010i201108

*212

main13552-36010i200811

*107

13559SLIPPER, CHAIN TENSIONER

main13559-0P010i200912

(L)

main13559-0V010i201108

*212

main13559-31020i200811

(J)

main13559-36010i200811

*107

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0P010i200912

(L)

main13561-0V010i201108

*212

main13561-31021i200811

(J)

main13561-36010i200811

*107

13566BGUIDE, TIMING CHAIN

main13566-0V010i201108-201209

*212

main13566-0V011i201209

*212

main13566-36010i200811-201204

*107

main13566-36011i201204

*107

13711VALVE, INTAKE

main13711-0P010×12i200912-201301

(L)

main13711-0V010×8i201108

*212

main13711-31100×12i200811-201301

(J)

main13711-36060×8i200811

*107

13711BSPRING, COMPRESSION(FOR INNER)

main90501-33023×16i200811-201102

*107

main90501-34016×16i201102-201301

*107

main90501-34017×16i201108-201301

(J),*212

main90501-36007×24i200912

(J)

main90501-A0050×24i200912

(L)

main90501-A0090×16i201108-201301

(L),*212

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31043×8i201108

*212

main90913-02101×12i200811

(J); *107

13715VALVE, EXHAUST

main13715-0P010×12i200912-201001

(L)

main13715-0P030×12i201001

(L)

main13715-0V010×8i201108-201301

*212

main13715-31120×12i200811-200906

main13715-31150×12i200906

(J)

main13715-36020×8i200811-201301

*107

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31101×12i200912

(L)

main90913-02112×12i200811

(J); *107

13716CAP, VALVE STEM

main13716-75020×16i200811

*107

13734SEAT, VALVE SPRING

main13734-0P010×16i201108

*212

main13734-62020×24i200811

(J); *107

13741RETAINER, VALVE SPRING

main13741-0P010×24i200912

(L)

main13741-0V010×16i201108

(L),*212

main13741-20021×16i200811

*107

main13741-31020×24i200811

(J)

13741ALOCK, VALVE SPRING RETAINER

main90913-03028×32i200811

(J); *107

main90913-A3001×32i201108

(L),*212

13750ADJUSTER ASSY, VALVE LASH

main13750-0P020×16i201108

*212

main13750-31030×16i200811

(J); *107

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0P010×24i200912

(L)

main13801-23011×16i200811

(J); *107

90105A0118

main90105-A0118

9010908304

main90109-08304

90109A0006

main90109-A0006

9011912370

main90119-12370

90119A0127

main90119-A0127

9155180630

main91551-80630

9167180820

main91671-80820

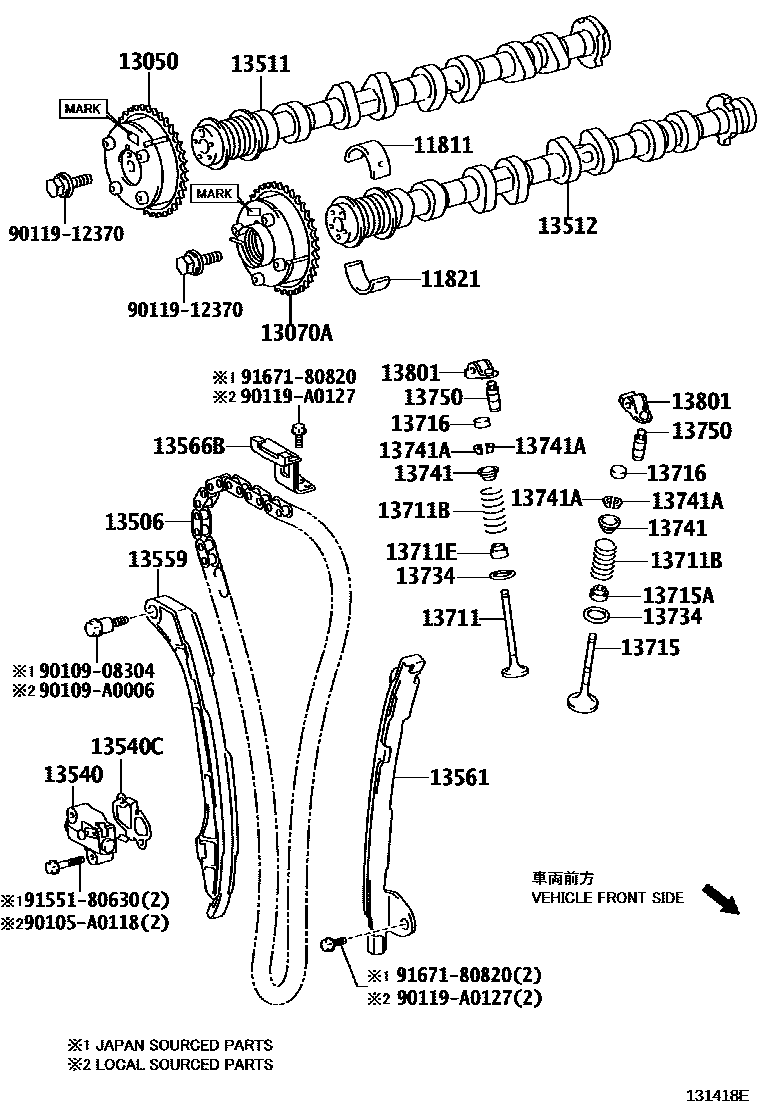

CAMSHAFT & VALVE
