ENGINE OVERHAUL GASKET KIT

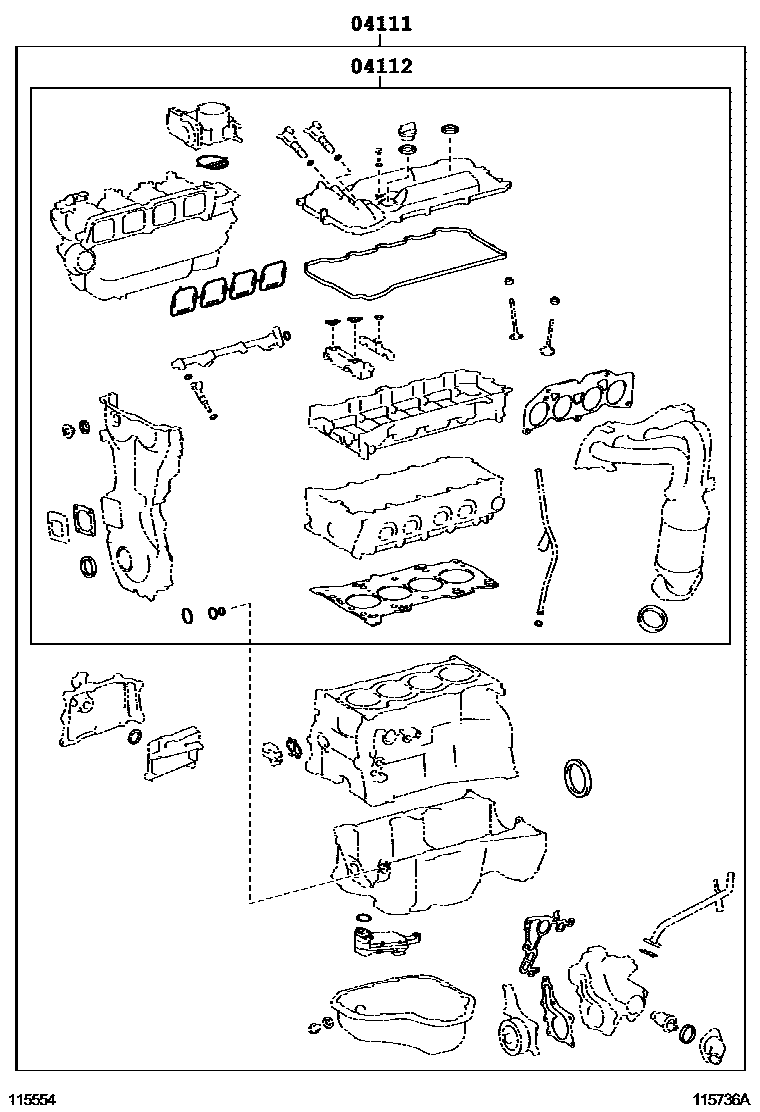

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0P063i200912-201111

(L)

main04111-0P064i201111

(L)

main04111-0V021i201207-201301

*212

main04111-0V030i201108-201207

*212

main04111-31442i200811-201108

(J)

main04111-31443i201108-201111

(J)

main04111-31444i201111

(J)

main04111-36060i200811-201111

*107

main04111-36061i201111-201201

*107

main04111-36062i201201-201301

*107

main04111-0P140i200912-201111

MEXICO SPEC,(L)

main04111-0P181i201111

MEXICO SPEC,(L)

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0P053i200912-201109

(L)

main04112-0P054i201109-201111

(L)

main04112-0P055i201111

(L)

main04112-0V021i201207-201301

*212

main04112-0V030i201108-201207

*212

main04112-31272i200811-201108

(J)

main04112-31273i201108-201111

(J)

main04112-31274i201111

(J)

main04112-36050i200811-201201

*107

main04112-36051i201201-201301

*107

main04112-0P120i200912-201111

MEXICO SPEC,(L)

main04112-0P171i201111

MEXICO SPEC,(L)

2 parts on this diagram · 5 diagrams in section
