SHORT BLOCK ASSEMBLY

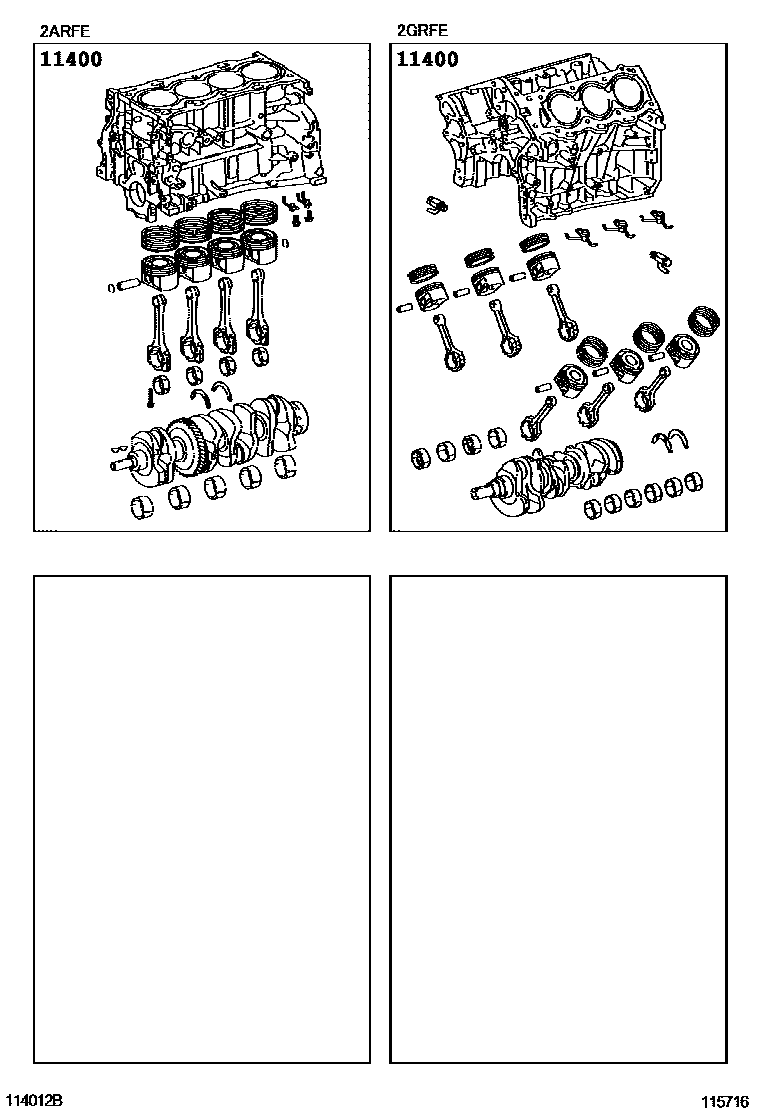

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0P050i200912-201301

*250

main11400-0V010i201108-201301

*212

main11400-31161i200811-200905

main11400-31163i200905-201210

*125 OR *251

main11400-31360i201210-201301

*252

main11400-36060i200811-201301

*107

1 parts on this diagram · 1 diagram in section
