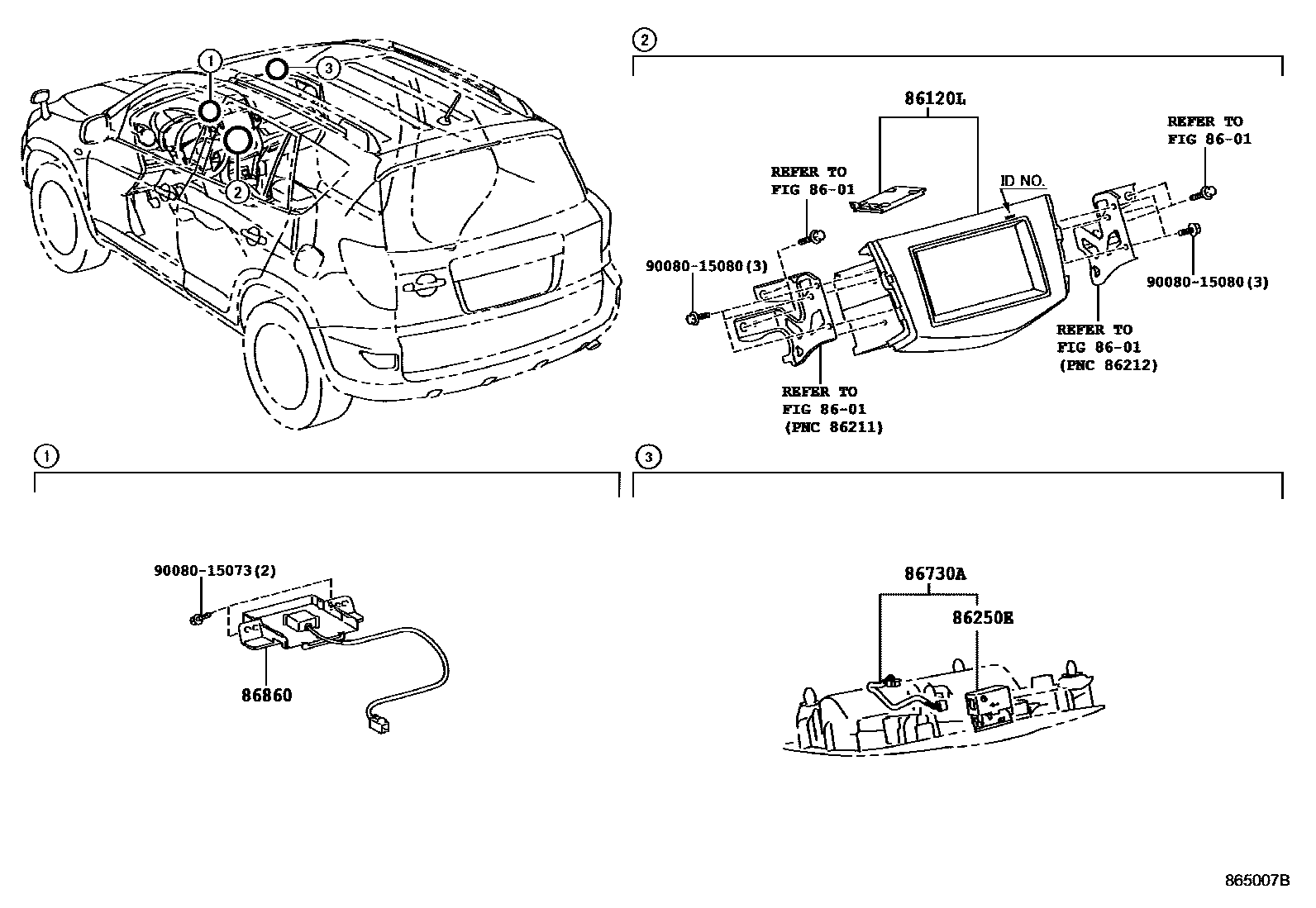

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86120LRECEIVER ASSY, NAVIGATION

main86100-0R030iQEA38201204-201208

DENSO,ID=E7045

main86100-0R031iQEA38201209-201211

DENSO,ID=E7045

main86100-0R032iQEA38201212-201311

DENSO,ID=E7045

main86100-0R033iQEA38201312-201408

DENSO,ID=E7045

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52030iQEA38201204

86730AMICROPHONE ASSY, TELEPHONE

main86730-42020iQEA38201204-201408

86860ANTENNA ASSY, NAVIGATION

main86860-42030iQEA38201204

9008015073

main90080-15073

9008015080

main90080-15080

7 parts on this diagram · 1 diagram in section
