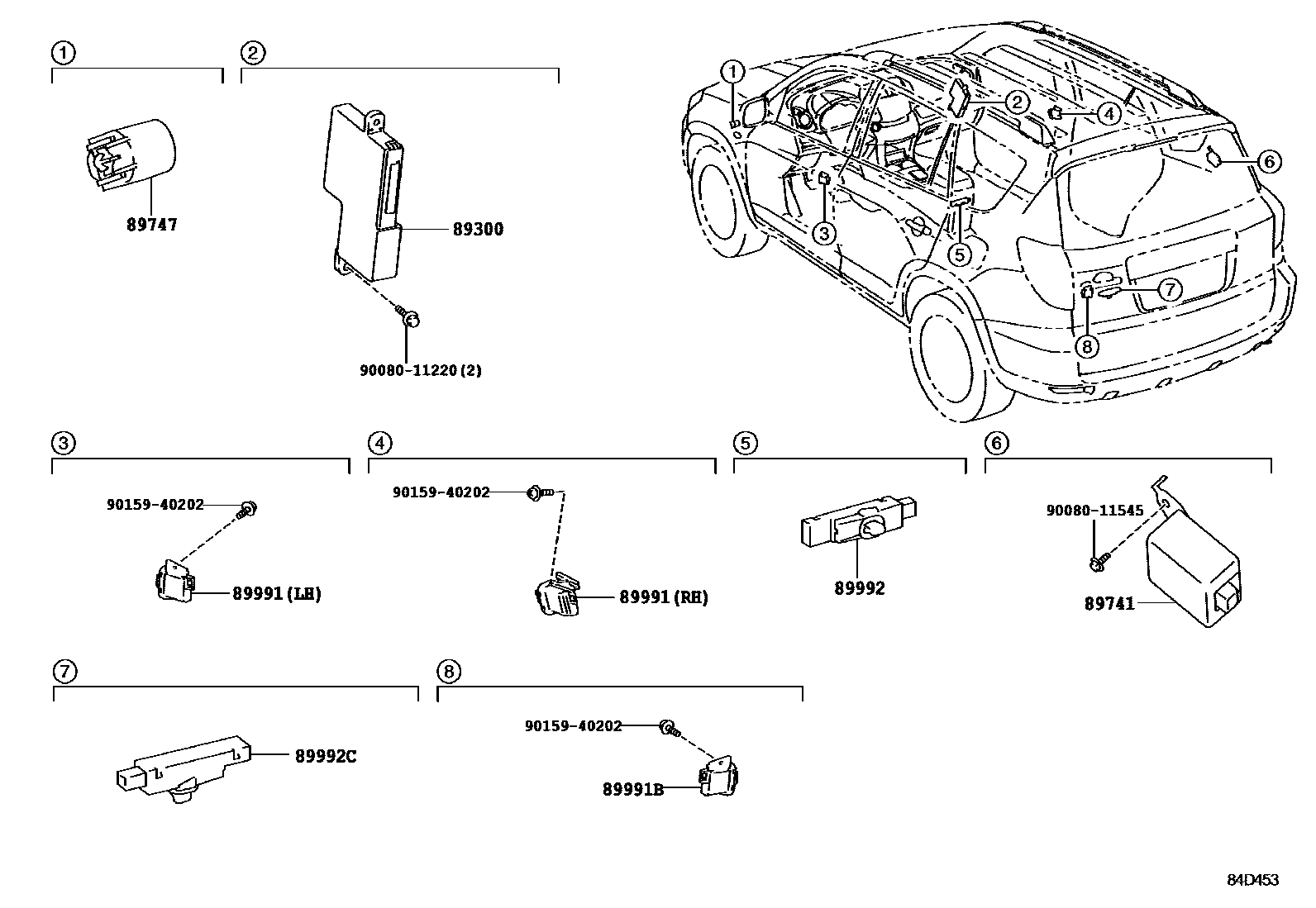

WIRELESS DOOR LOCK

89300BOX ASSY, ECU AGGREGATION

main89300-42112iQEA38201204-201211

main89300-42113iQEA38201211

89741RECEIVER, DOOR CONTROL

main89740-0R010iQEA38201204

89747BUZZER, WIRELESS DOOR LOCK

main89747-02010iQEA38201204

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-06010iQEA38201204-201408

LH

main89991-06020iQEA38201204-201408

RH

89991BOSCILLATOR, DOOR ELECTRICAL KEY(FOR LUGGAGE)

main89991-06020iQEA38201204-201408

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-06040iQEA38201204

89992COSCILLATOR, INDOOR ELECTRICAL KEY, NO.2

main89992-07010iQEA38201204

9008011220

main90080-11220

9008011545

main90080-11545

9015940202

main90159-40202

10 parts on this diagram · 1 diagram in section
