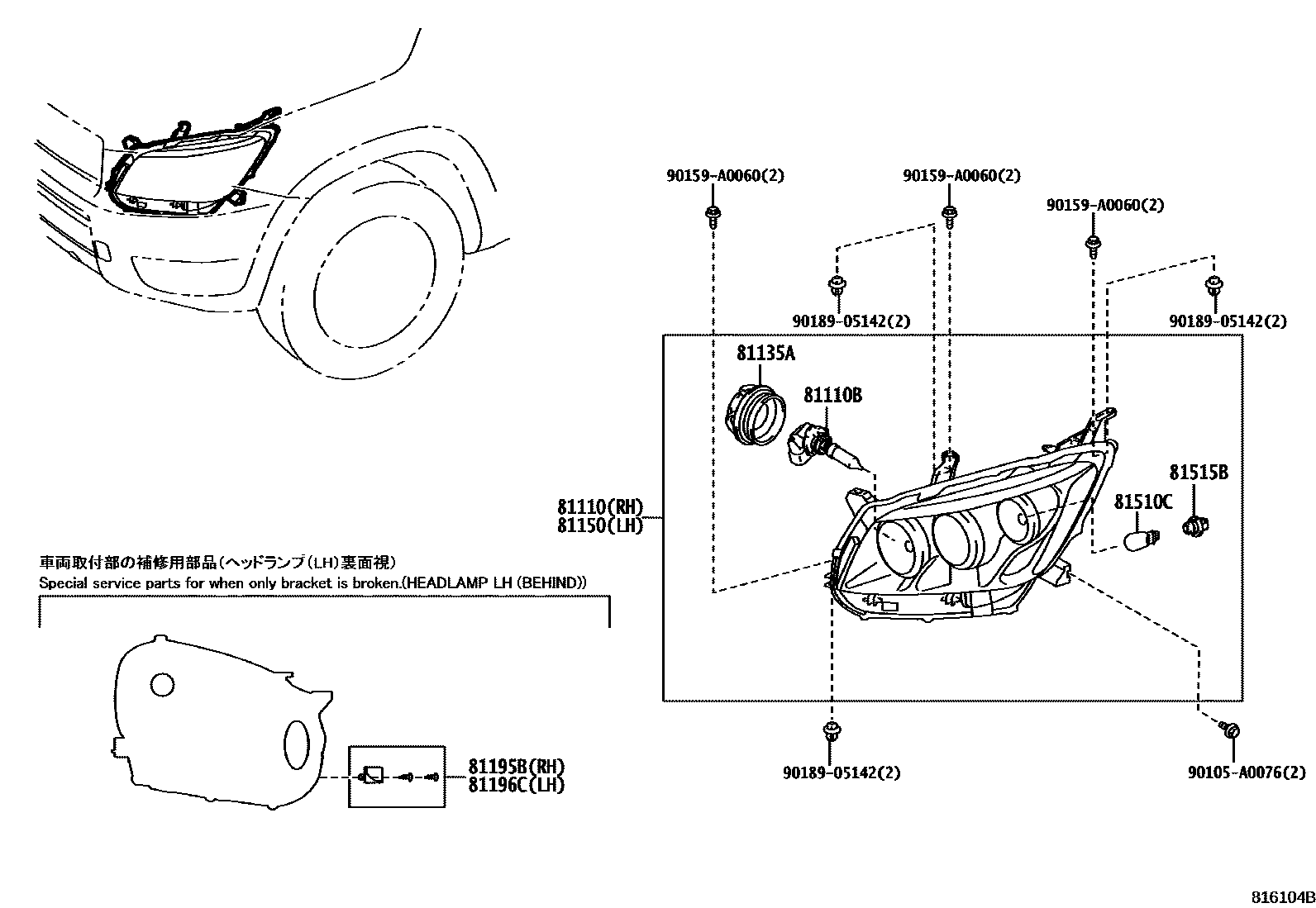

Toyota RAV4 EV — HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
81135ACAP, LOCKING
81150HEADLAMP ASSY, LH
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
81515BSOCKET, FRONT TURN SIGNAL LAMP
90105A0076
90159A0060
9018905142
11 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota RAV4 EV
This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota RAV4 EV. Key components include: HEADLAMP ASSY, RH, BULB(FOR HEADLAMP, NO.1), CAP, LOCKING, HEADLAMP ASSY, LH, RETAINER, RH HEADLAMP PROTECTOR, LOWER RH.
