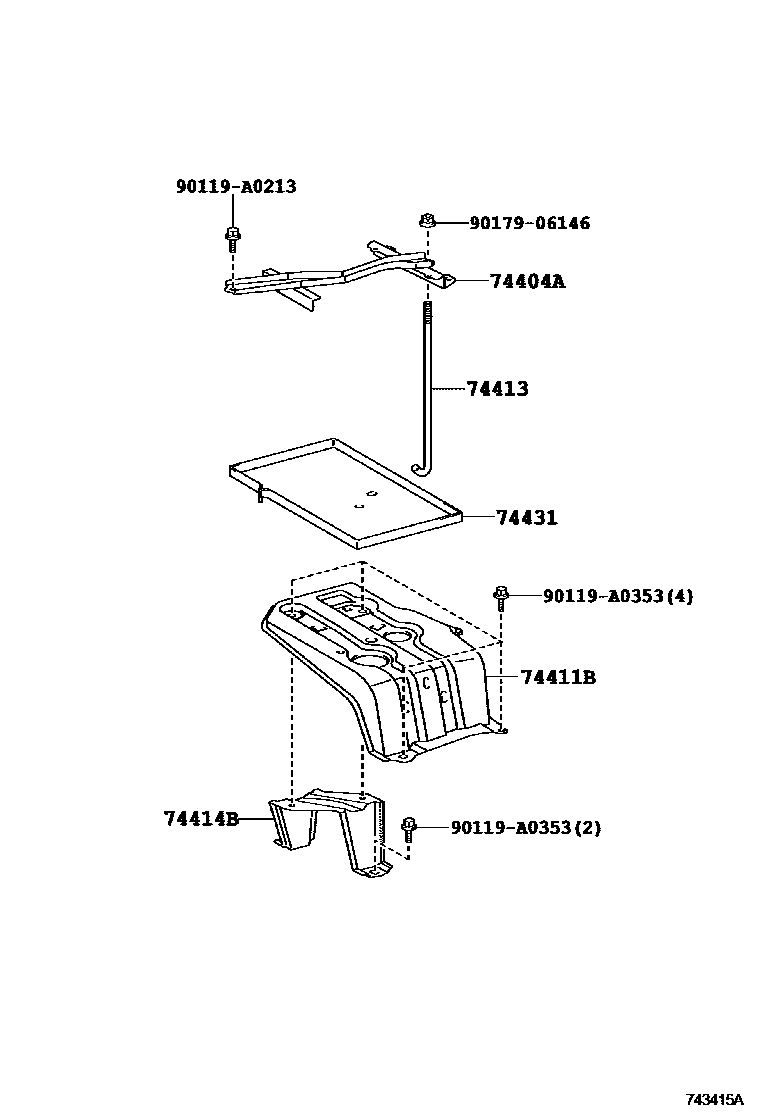

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-0R011iQEA38201204

74411BBRACKET, BATTERY, FRONT

main74411-0R010iQEA38201204-201205

sub74411-0R030

main74411-0R030iQEA38201206

74413BOLT, BATTERY CLAMP

main74451-10060iQEA38201204

74414BREINFORCEMENT, BATTERY BRACKET

main74414-0R040iQEA38201204

74431TRAY, BATTERY

main74431-0R010iQEA38201204

90119A0213

main90119-A0213

90119A0353

main90119-A0353

9017906146

main90179-06146

8 parts on this diagram · 1 diagram in section
