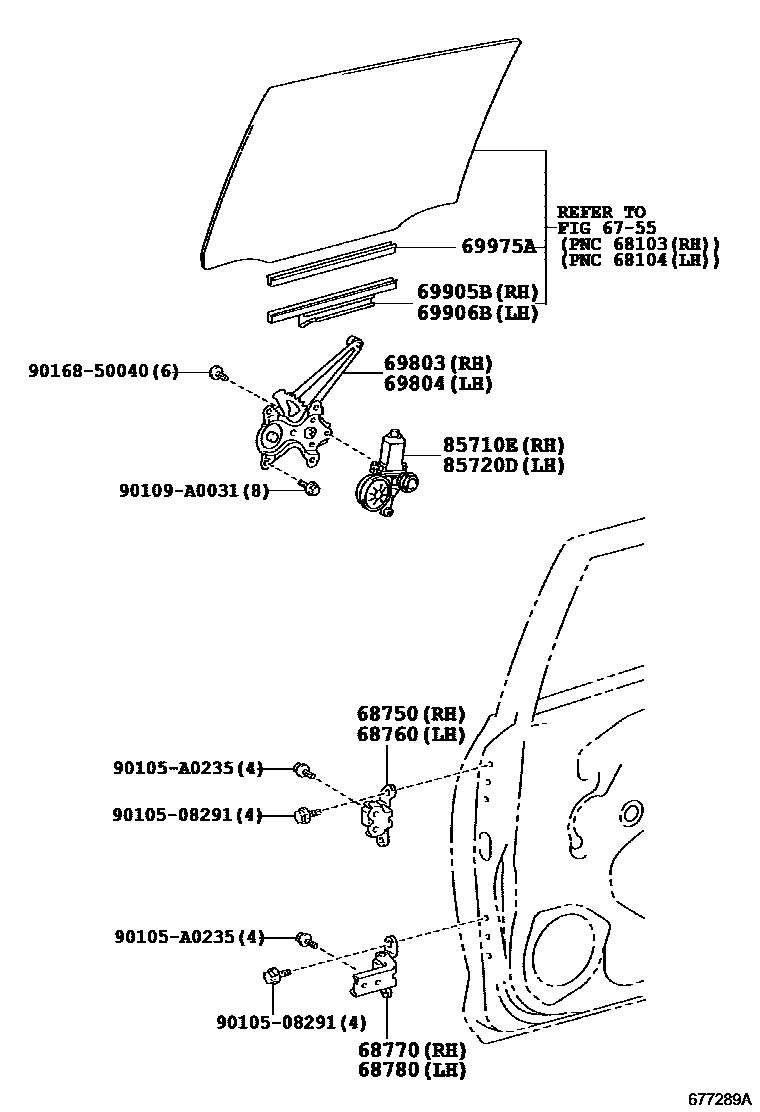

Toyota RAV4 EV — REAR DOOR WINDOW REGULATOR & HINGE
6755REAR DOOR PANEL & GLASS
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69975AFILLER, REAR DOOR GLASS CHANNEL
85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH
85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH
9010508291
90105A0235
90109A0031
9016850040
16 parts on this diagram · 1 diagram in section
REAR DOOR WINDOW REGULATOR & HINGE for Toyota RAV4 EV
This section contains 16 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota RAV4 EV. Key components include: REAR DOOR PANEL & GLASS, HINGE ASSY, REAR DOOR, UPPER RH, HINGE ASSY, REAR DOOR, UPPER LH, HINGE ASSY, REAR DOOR, LOWER RH, HINGE ASSY, REAR DOOR, LOWER LH.
