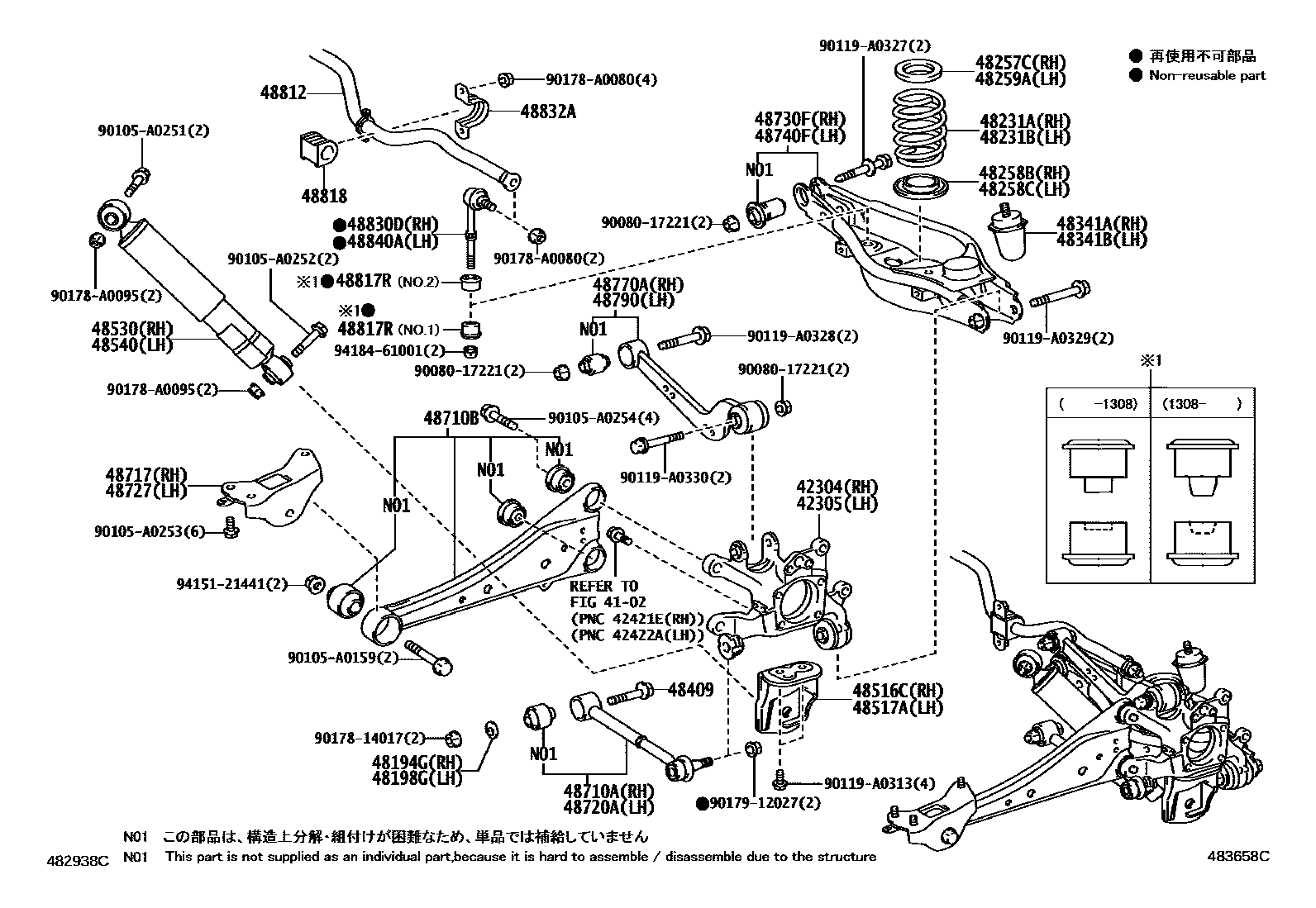

REAR SPRING & SHOCK ABSORBER

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-0R020iQEA38201204-201408

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-0R020iQEA38201204-201408

48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH

main48198-42010iQEA38201204

48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH

main48198-42010iQEA38201204

48231ASPRING, COIL, REAR RH

main48231-0R110iQEA38201204

48231BSPRING, COIL, REAR LH

main48231-0R110iQEA38201204

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-42040iQEA38201204

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-42020iQEA38201204

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-42020iQEA38201204

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-42040iQEA38201204

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-0R010iQEA38201204

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-0R010iQEA38201204

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-42030×2iQEA38201204

48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH

main48505-42010iQEA38201204

48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH

main48506-42010iQEA38201204

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-0R071iQEA38201204

MARK 48531-0R071

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-0R071iQEA38201204

MARK 48531-0R071

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-0R030iQEA38201204

48710BARM ASSY, TRAILING, REAR

main48760-42030iQEA38201204

RH

main48780-42030iQEA38201204

LH

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-0R010iQEA38201204

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-0R030iQEA38201204

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-0R010iQEA38201204

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-0R020iQEA38201302-201404

main48730-0R030iQEA38201405-201408

main48730-42050iQEA38201204-201301

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-0R020iQEA38201302-201404

main48740-0R030iQEA38201405-201408

main48740-42020iQEA38201204-201301

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-42040iQEA38201204

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-42020iQEA38201204

48812BAR, STABILIZER, REAR

main48812-0R010iQEA38201204

48817RCUSHION, STABILIZER(FOR REAR)

main48817-0R010×2iQEA38201204-201212

NO.1

main48817-0R011×2iQEA38201212-201308

NO.1

main48817-0R013×2iQEA38201308

NO.1

main48817-0R040×2iQEA38201204-201212

NO.2

main48817-0R041×2iQEA38201212-201308

NO.2

main48817-0R043×2iQEA38201308

NO.2

48818BUSH, STABILIZER, REAR

main48818-0R010×2iQEA38201204

48830DLINK ASSY, REAR STABILIZER, RH

main48830-0R010iQEA38201204

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-0R010×2iQEA38201204

48840ALINK ASSY, REAR STABILIZER, LH

main48830-0R010iQEA38201204

9008017221

main90080-17221

90105A0159

main90105-A0159

90105A0251

main90105-A0251

90105A0252

main90105-A0252

90105A0253

main90105-A0253

90105A0254

main90105-A0254

90119A0313

main90119-A0313

90119A0327

main90119-A0327

90119A0328

main90119-A0328

90119A0329

main90119-A0329

90119A0330

main90119-A0330

9017814017

main90178-14017

90178A0080

main90178-A0080

90178A0095

main90178-A0095

9017912027

main90179-12027

9415121441

main94151-21441

9418461001

main94184-61001

50 parts on this diagram · 1 diagram in section
