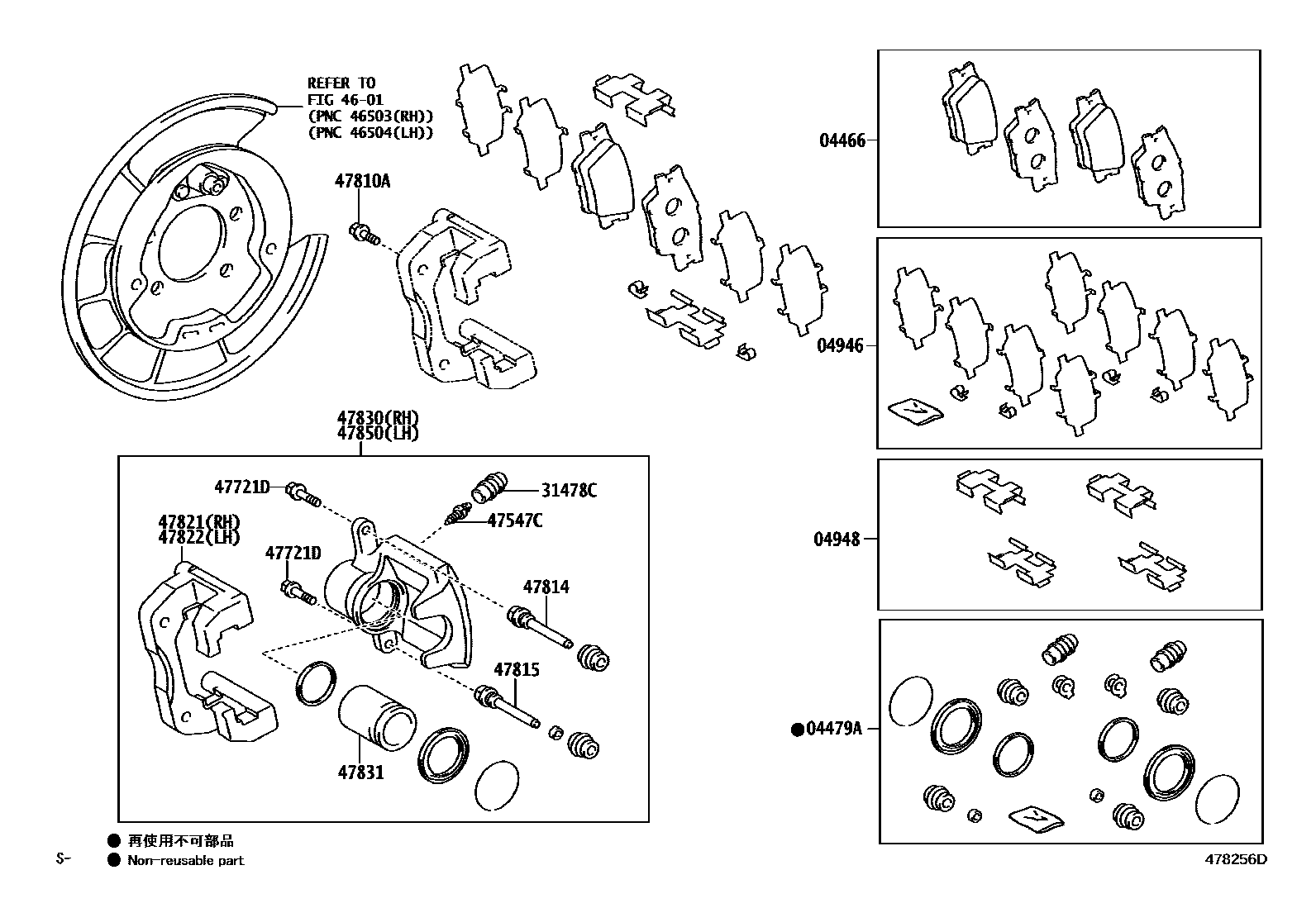

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-42060iQEA38201204

MARK ADVICS PS558

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06285iQEA38201204

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0R010iQEA38201204

04948FITTING KIT, DISC BRAKE, REAR

main04948-0R010iQEA38201204

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-0R010×2iQEA38201204

(L)

main31478-50020×2iQEA38201204

(J)

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12130×2iQEA38201204

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA604×4iQEA38201204

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-A0248×4iQEA38201204-201408

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-06120×2iQEA38201204

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-06120×2iQEA38201204

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0R030iQEA38201204

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0R030iQEA38201204

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0R030iQEA38201204-201408

47831PISTON, REAR DISC BRAKE

main47831-06050×2iQEA38201204

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0R030iQEA38201204

16 parts on this diagram · 1 diagram in section
