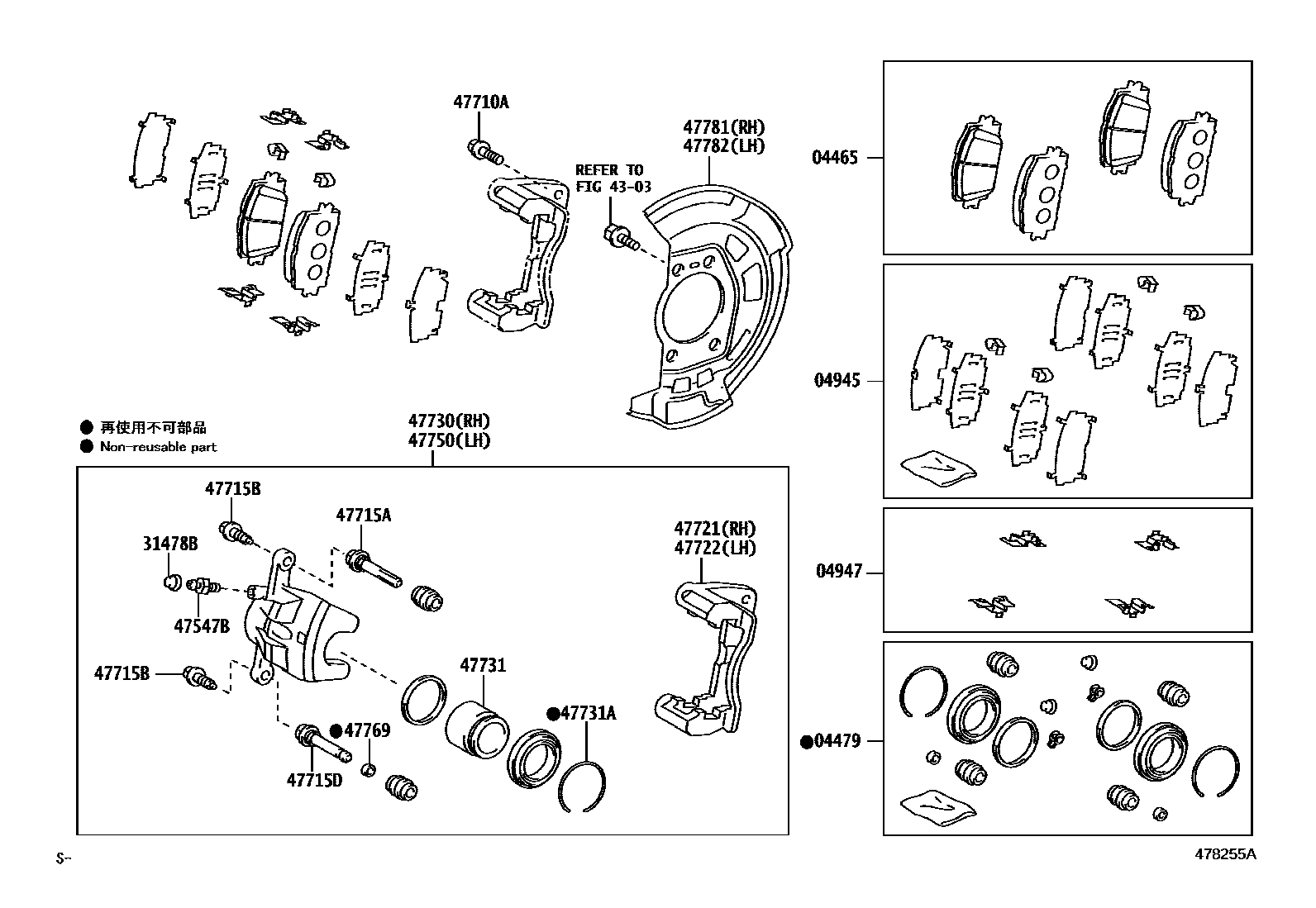

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-02230iQEA38201204

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0R020iQEA38201204

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0R030iQEA38201204

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0R010iQEA38201204

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iQEA38201204

4303FRONT AXLE HUB

→ Go to FIG 43-03

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-06040×2iQEA38201204-201211

main47547-12130×2iQEA38201211

(J)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90080-10067×4iQEA38201204-201408

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-04080×2iQEA38201204

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90016-AA103×4iQEA38201204

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33340×2iQEA38201204

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02410iQEA38201204

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-02410iQEA38201204

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02410iQEA38201204

47731PISTON, FRONT DISC BRAKE

main47731-08020×2iQEA38201204

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90080-52108×2iQEA38201204

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02410iQEA38201204

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iQEA38201204

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0R010iQEA38201204-201408

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0R010iQEA38201204-201408

20 parts on this diagram · 1 diagram in section
