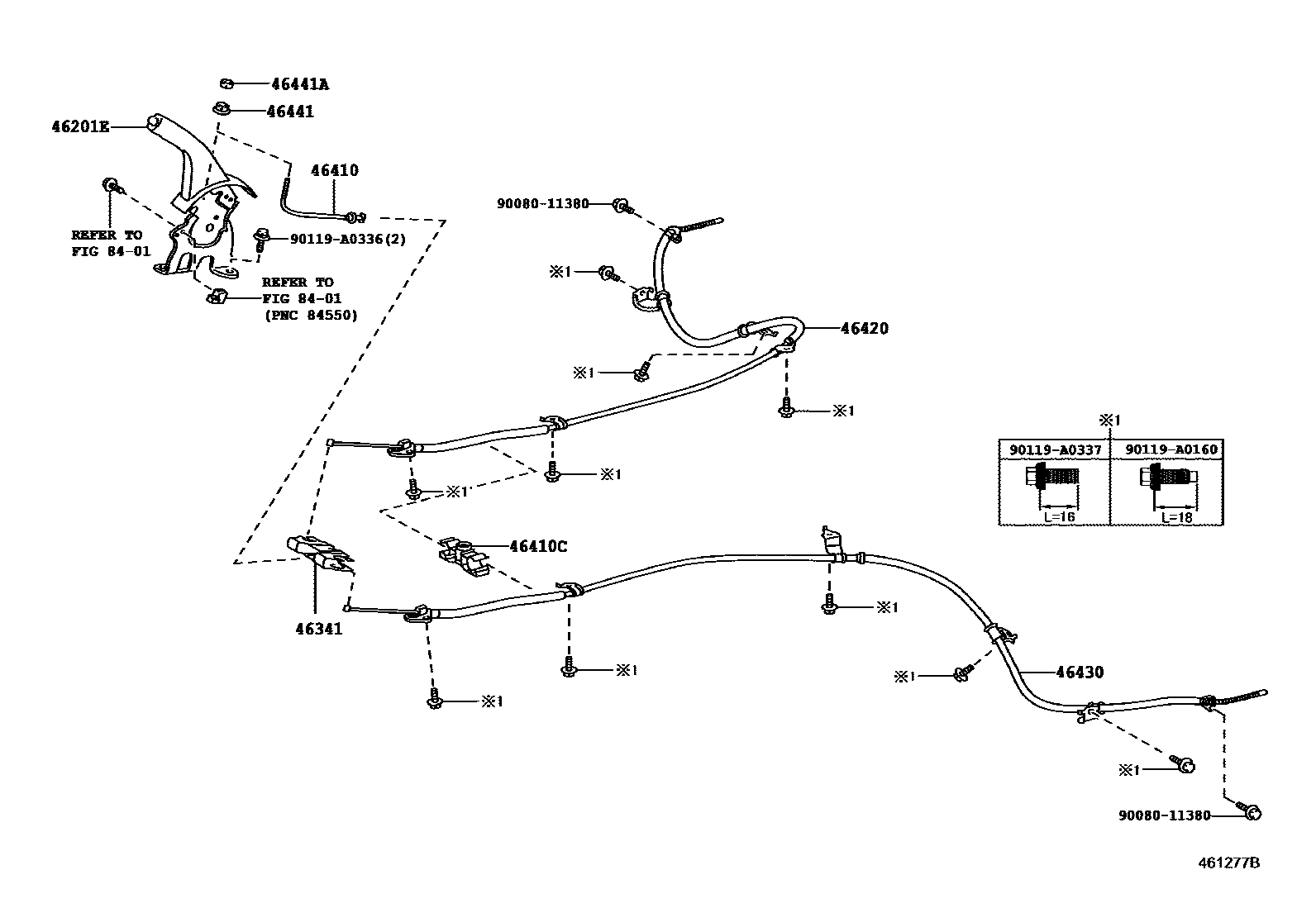

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-42111-B0iQEA38201204-201408

DK.GRAY,TRIM1#

46341EQUALIZER, PARKING BRAKE

main46341-0R010iQEA38201204

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-42051iQEA38201204

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-0R010iQEA38201204

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0R030iQEA38201204-201209

main46420-0R031iQEA38201209-201408

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0R030iQEA38201204-201209

main46430-0R031iQEA38201209

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iQEA38201204

46441ANUT, WIRE ADJUSTING, NO.2

main90178-A0073iQEA38201204

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011380

main90080-11380

90119A0160

main90119-A0160

90119A0336

main90119-A0336

90119A0337

main90119-A0337

13 parts on this diagram · 2 diagrams in section
