WIRING & CLAMP

0001 1MOTOR ROOM 0002 1INSTRUMENT PANEL 0003 1DOOR 0004 1FLOOR,ROOF 0005 1CLAMP & BRAKET 0006 1CONNECTOR

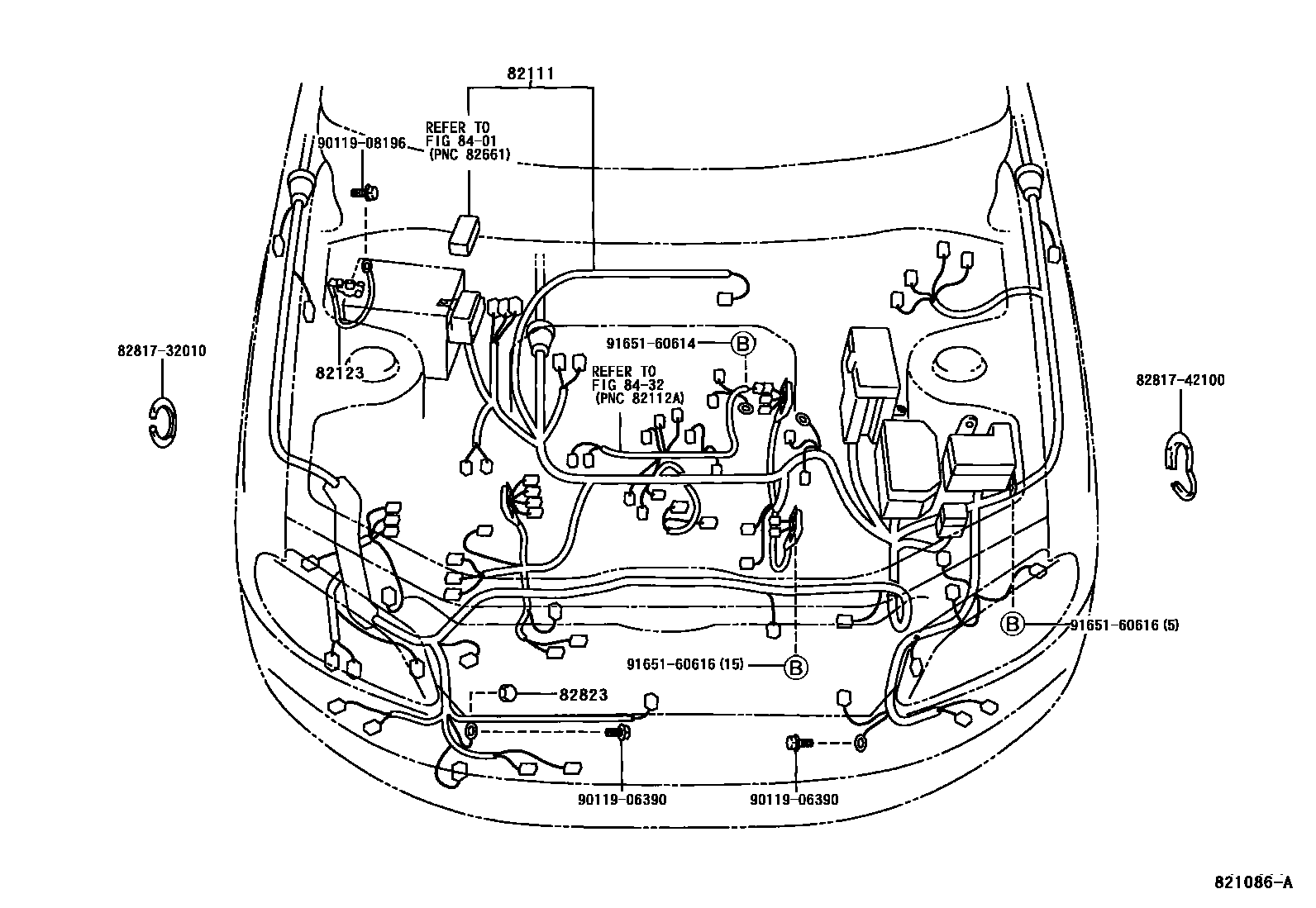

82111WIRE, ENGINE ROOM MAIN

main82111-42310iBEA11..CON199709-199911

main82111-4A060iBEA11..IN199812-200209

main82111-4A061iBEA11200209-200305

82123WIRE, ENGINE, NO.3

main82123-42031iBEA11199911

main82123-42050iBEA11199709-199911

82823CAP, TERMINAL, NO.1

main82823-50040iBEA11199709-199911

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8432INVERTER COOLING

→ Go to FIG 84-32

8281732010PROTECTOR, WIRING HARNESS, NO.1

main82817-32010

8281742100PROTECTOR, WIRING HARNESS, NO.1

main82817-42100

9011906390

main90119-06390

9011908196

main90119-08196

9165160614

main91651-60614

9165160616

main91651-60616

11 parts on this diagram · 6 diagrams in section
