E
EPC Data

SEAT BELT

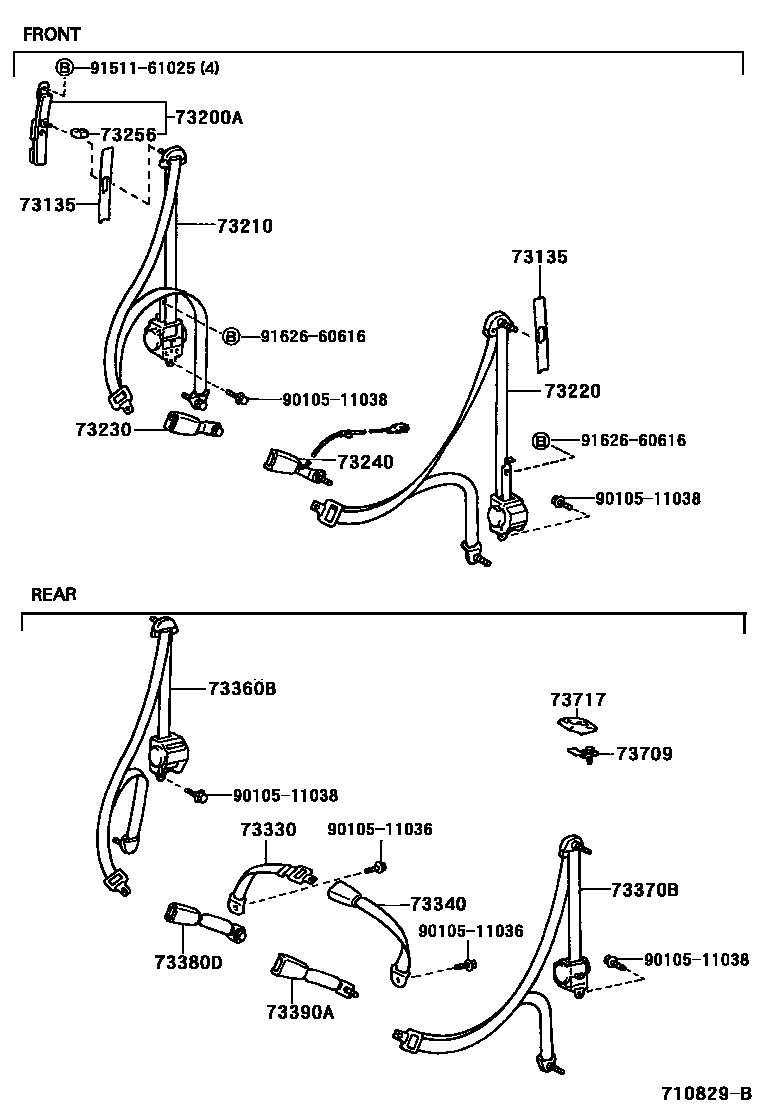

Parts diagram
73135COVER, SHOULDER BELT ANCHORAGE PLATE
main73135-30030-B5×2i200209
LT.GRAY,TRIM1#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-42010-B1×2i199709-200209
SHADOW GRAY,TRIM1#
main73200-52040-B1×2i200209
SHADOW GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-42110-B0i200209
SHADOW GRAY,TRIM1#
main73210-42200-B0i199709-200209
SHADOW GRAY,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-42110-B0i200209
SHADOW GRAY,TRIM1#
main73220-42200-B0i199709-200209
SHADOW GRAY,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-42050-B1i199709
SHADOW GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-42011-B1i199709
SHADOW GRAY,TRIM1#
73256KNOB, SHOULDER BELT ANCHOR ADJUST
main73256-12010-P0×2i199709-200209
SHADOW GRAY,TRIM1#
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-0W010-B1i199709-200209
SHADOW GRAY,TRIM1#
main73330-42030-B1i200209
SHADOW GRAY,TRIM1#
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73340-0W010-B1i199709-200209
SHADOW GRAY,TRIM1#
main73340-42020-B1i200209
SHADOW GRAY,TRIM1#
73360BBELT ASSY, REAR SEAT, OUTER
main73360-0W060-B1i199709-200209
SHADOW GRAY,TRIM1#
main73360-42180-B0i200209
SHADOW GRAY,TRIM1#
73370BBELT ASSY, REAR SEAT, OUTER
main73370-0W040-B1i199709-200209
SHADOW GRAY,TRIM1#
main73370-42080-B0i200209
SHADOW GRAY,TRIM1#
73380DBELT ASSY, REAR SEAT, INNER
main73380-0W050-B1i199709-200209
SHADOW GRAY,TRIM1#
main73380-42030-B2i200209
SHADOW GRAY,TRIM1#
73390ABELT ASSY, REAR SEAT, INNER
main73380-0W050-B1i199709-200209
SHADOW GRAY,TRIM1#
main73380-42030-B2i200209
SHADOW GRAY,TRIM1#
73709BRACKET SUB-ASSY, TETHER ANCHOR
main73708-12060×3i199911
73717COVER, CHILD RESTRAINT SEAT TETHER ANCHOR
main73717-50011-B4×3i199911
SHADOW GRAY,TRIM1#
9010511036
main90105-11036
9010511038
main90105-11038
9151161025
main91511-61025
9162660616
main91626-60616

19 parts on this diagram · 2 diagrams in section
