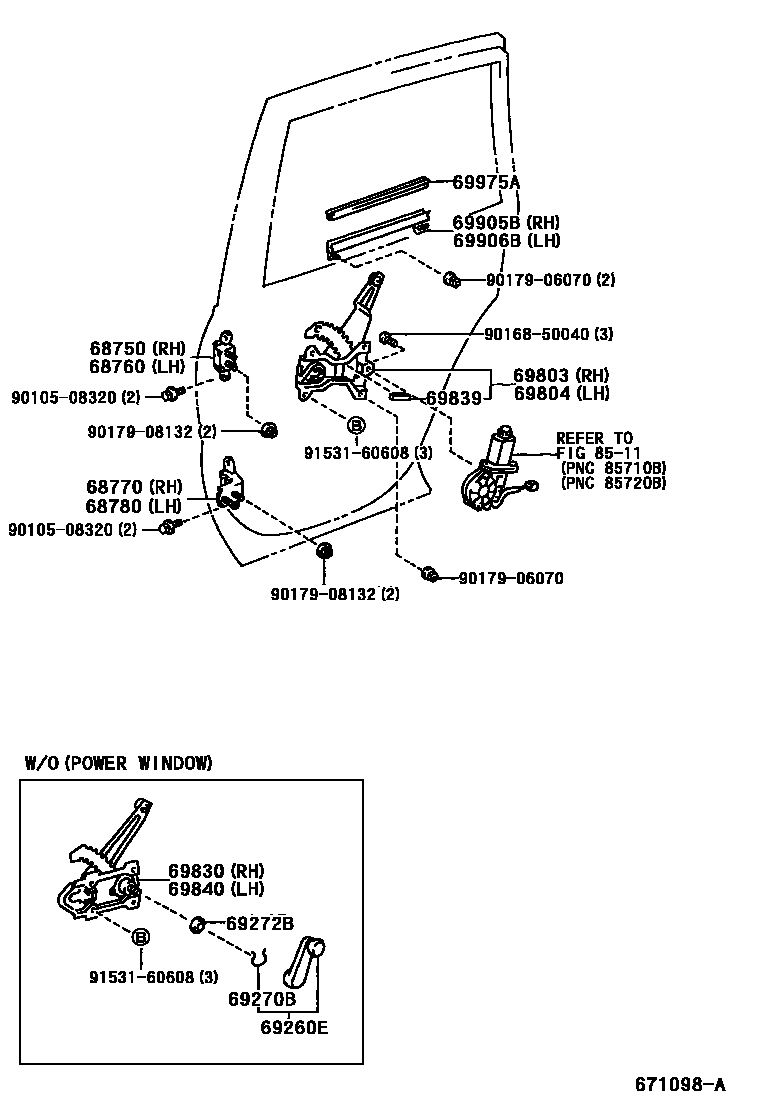

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-42010iBEA11199709-199911

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-42010iBEA11199709-199911

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-22020iBEA11199709-199911

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-22020iBEA11199709-199911

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-20090-B1×2iBEA11199709-200003

SHADOW GRAY,TRIM1#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iBEA11199709-199911

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iBEA11199709-200003

NATURAL WHITE,TRIM1#

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42010iBEA11199709-199911

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42010iBEA11199709-199911

69830REGULATOR ASSY, REAR QUARTER WINDOW, RH

main69830-42010iBEA11199709-199911

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12020×4iBEA11199709-199911

69840REGULATOR ASSY, REAR QUARTER WINDOW, LH

main69840-42010iBEA11199709-199911

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-42010iBEA11199709-199911

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-42010iBEA11199709-199911

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-42010×2iBEA11199709-199911

main69975-42020×2iBEA11200209

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508320

main90105-08320

9016850040

main90168-50040

9017906070

main90179-06070

9017908132

main90179-08132

9153160608

main91531-60608

21 parts on this diagram · 1 diagram in section
