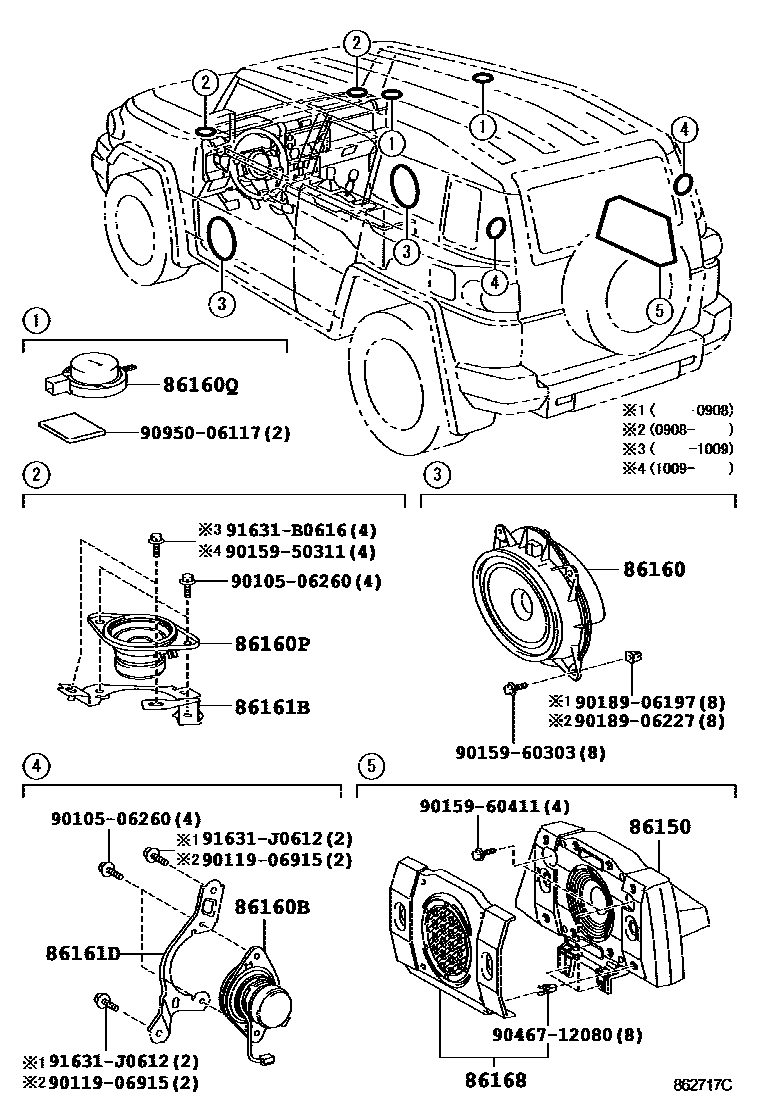

SPEAKER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-0W160i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

main86150-35100i200601-201011

AUDIO-AM/FM CD CHANGER, 9SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-04130×2supersedes 86160-22A00i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

86160BSPEAKER ASSY, REAR

main86160-0WV30i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER),RH

main86160-0WV40i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER),LH

main86160-35280i200601-201011

AUDIO-AM/FM CD CHANGER, 8SPERAKER,RH; AUDIO-AM/FM CD CHANGER, 9SPEAKER,RH

main86160-35290i200601-201011

AUDIO-AM/FM CD CHANGER, 8SPERAKER,LH; AUDIO-AM/FM CD CHANGER, 9SPEAKER,LH

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV10supersedes 86160-35270i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER),RH

main86160-0WV20supersedes 86160-35270i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER),LH

86160QSPEAKER ASSY, ROOF

main86160-28660×2i201011-201407

86161BBRACKET, SPEAKER, FRONT NO.2

main86161-35090i201011-201407

main86161-35100i200601-201011

86161DBRACKET, SPEAKER MOUNTING, NO.1

main86161-35110i200601-201011

AUDIO-AM/FM CD CHANGER, 8SPERAKER,RH; AUDIO-AM/FM CD CHANGER, 9SPEAKER,RH

main86161-35120i200601-201011

AUDIO-AM/FM CD CHANGER, 8SPERAKER,LH; AUDIO-AM/FM CD CHANGER, 9SPEAKER,LH

86168COVER, SPEAKER MOUNTING

main86168-0W010i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER)

main86168-35020i200601-201011

AUDIO-AM/FM CD CHANGER, 9SPEAKER

9010506260

main90105-06260

9011906915

main90119-06915

9015950311

main90159-50311

9015960303

main90159-60303

9015960411

main90159-60411

9018906197

main90189-06197

9018906227

main90189-06227

9046712080

main90467-12080

9095006117

main90950-06117

91631B0616

main91631-B0616

91631J0612

main91631-J0612

19 parts on this diagram · 2 diagrams in section
