MOULDING

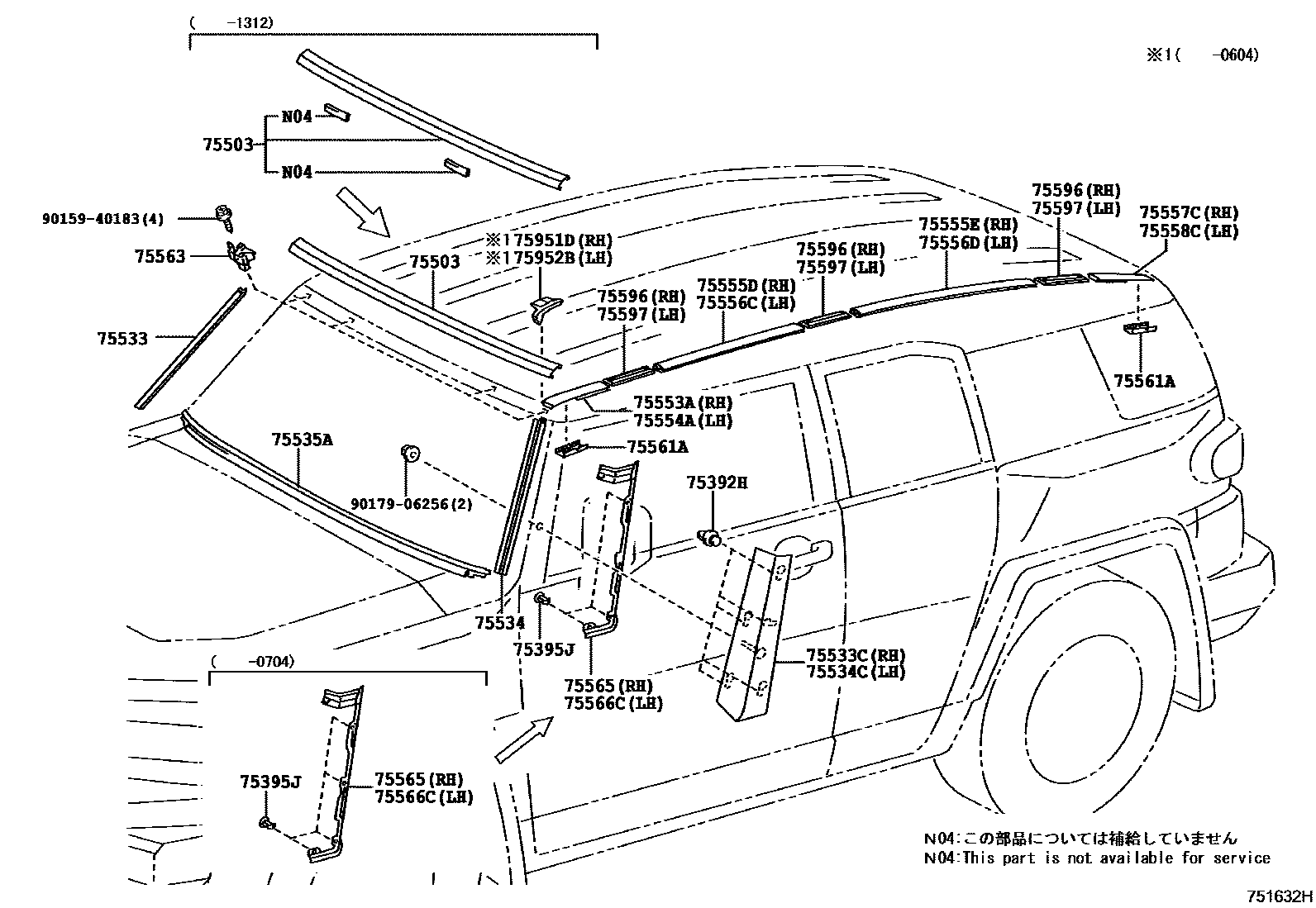

Parts diagram
75392HRETAINER, OUTSIDE MOULDING
main75392-35210×10i200601-201011
75395JCLIP, OUTSIDE MOULDING, NO.1
main67869-35010×8i200601-200704
75503MOULDING SUB-ASSY, WINDSHIELD, OUTSIDE UPPER
main75503-35010i200601-200603
main75503-35011i200604-200807
main75503-35012i200808-201011
main75503-35060-A0i201011-201312
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75503-35060-D0i201108-201208
RED,3L5
main75503-35061-A0i201312-201407
WHITE,058 ,2KC ,2KD ,2KP ,2KY ,2LF ,2LS
main75503-35020i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75503-35030i200909-201001
SPECIAL EDITION
main75503-35060-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75503-35061-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75503-35070i201101-201107
SPECIAL EDITION
75533MOULDING, WINDSHIELD, OUTSIDE RH
main75532-35010i200601-201011
main75532-35020i200601-201011
CANADA SPEC
75533CGARNISH, FRONT PILLAR, OUTER RH
main61110-35010i201011-201407
75534MOULDING, WINDSHIELD, OUTSIDE LH
main75532-35010i200601-201011
main75532-35020i200601-201011
CANADA SPEC
75534CGARNISH, FRONT PILLAR, OUTER LH
main61120-35010i200601-201011
75535AMOULDING, WINDSHIELD, OUTSIDE LOWER
main75535-35010i200601-201004
main75535-35011i201005-201011
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
main75553-35020i200601-200803
main75553-35040i200804-201108
main75553-35040-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75553-35040-D0i201108-201208
RED,3L5
main75553-35030i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75553-35040-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75553-35040-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75553-35060i200909-201001
SPECIAL EDITION
main75553-35090i201101-201107
SPECIAL EDITION
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
main75554-35020i200601-200803
main75554-35040i200804-201108
main75554-35040-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75554-35040-D0i201108-201208
RED,3L5
main75554-35030i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75554-35040-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75554-35040-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75554-35060i200909-201001
SPECIAL EDITION
main75554-35090i201101-201107
SPECIAL EDITION
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-35010i200601-200803
main75555-35030i200804-201108
main75555-35030-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75555-35030-D0i201108-201208
RED,3L5
main75555-35020i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75555-35030-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75555-35030-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75555-35050i200909-201001
SPECIAL EDITION
main75555-35080i201101-201107
SPECIAL EDITION
75555EMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75556-35010i200601-200803
main75556-35030i200804-201108
main75556-35030-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75556-35030-D0i201108-201208
RED,3L5
main75556-35020i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75556-35030-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75556-35030-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75556-35040i201006-201008
SPECIAL EDITION
main75556-35070i201101-201107
SPECIAL EDITION
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75555-35010i200601-200803
main75555-35030i200804-201108
main75555-35030-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75555-35030-D0i201108-201208
RED,3L5
main75555-35020i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75555-35030-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75555-35030-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75555-35050i200909-201001
SPECIAL EDITION
main75555-35080i201101-201107
SPECIAL EDITION
75556DMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-35010i200601-200803
main75556-35030i200804-201108
main75556-35030-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75556-35030-D0i201108-201208
RED,3L5
main75552-35090i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75556-35030-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75556-35030-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75556-35040i201006-201008
SPECIAL EDITION
main75556-35070i201101-201107
SPECIAL EDITION
75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
main75557-35020i200601-200803
main75557-35040i200804-201108
main75557-35040-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75557-35040-D0i201108-201208
RED,3L5
main75557-35030i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75557-35040-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75557-35040-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75557-35050i200909-201001
SPECIAL EDITION
main75557-35080i201101-201107
SPECIAL EDITION
75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
main75558-35010i200601-200803
main75558-35030i200804-201108
main75558-35030-A0i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75558-35030-D0i201108-201208
RED,3L5
main75558-35020i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75558-35030-B0i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75558-35030-J0i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75558-35040i200909-201001
SPECIAL EDITION
main75558-35070i201101-201107
SPECIAL EDITION
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-42030×4i200601-200807
main75561-60010×4i200807-201011
75563RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1
main75563-35010×4i200601-201011
75565PROTECTOR, ROOF SIDE GARNISH, NO.1
main75565-35010i200601-201011
75566CPROTECTOR, ROOF SIDE GARNISH, NO.2
main75566-35010i201011-201407
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
main75596-35020×3i200601-201011
main75596-35020-A0×3i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75596-35020-D0×3i201108-201208
RED,3L5
main75596-35020-B0×3i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75596-35020-J0×3i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75596-35040×3i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75596-35050×3i201006-201008
SPECIAL EDITION
main75596-35080×3i201101-201107
SPECIAL EDITION
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
main75596-35020×3i200601-201011
main75596-35020-A0×3i201011-201407
WHITE,058 ,2KB ,2KC ,2KD ,2KP ,2KQ ,2KY ,2LF ,2LS
main75596-35020-D0×3i201108-201208
RED,3L5
main75596-35020-B0×3i201210-201303
SPECIAL EDITION,CEMENT GRAY ME.,1H5
main75596-35020-J0×3i201402-201407
SPECIAL EDITION,SMOKY BLUE,8X0
main75596-35040×3i200610-200701
SPECIAL EDITION(USA/HAWAII/P.RICO)
main75596-35050×3i201006-201008
SPECIAL EDITION
main75596-35080×3i201101-201107
SPECIAL EDITION
75951DPAD, WINDSHIELD MOULDING, NO.6
main75951-35010i200601-200604
75952BPAD, WINDSHIELD MOULDING, NO.7
main75952-35010i200601-200604
9015940183
main90159-40183
9017906256
main90179-06256

26 parts on this diagram · 2 diagrams in section
