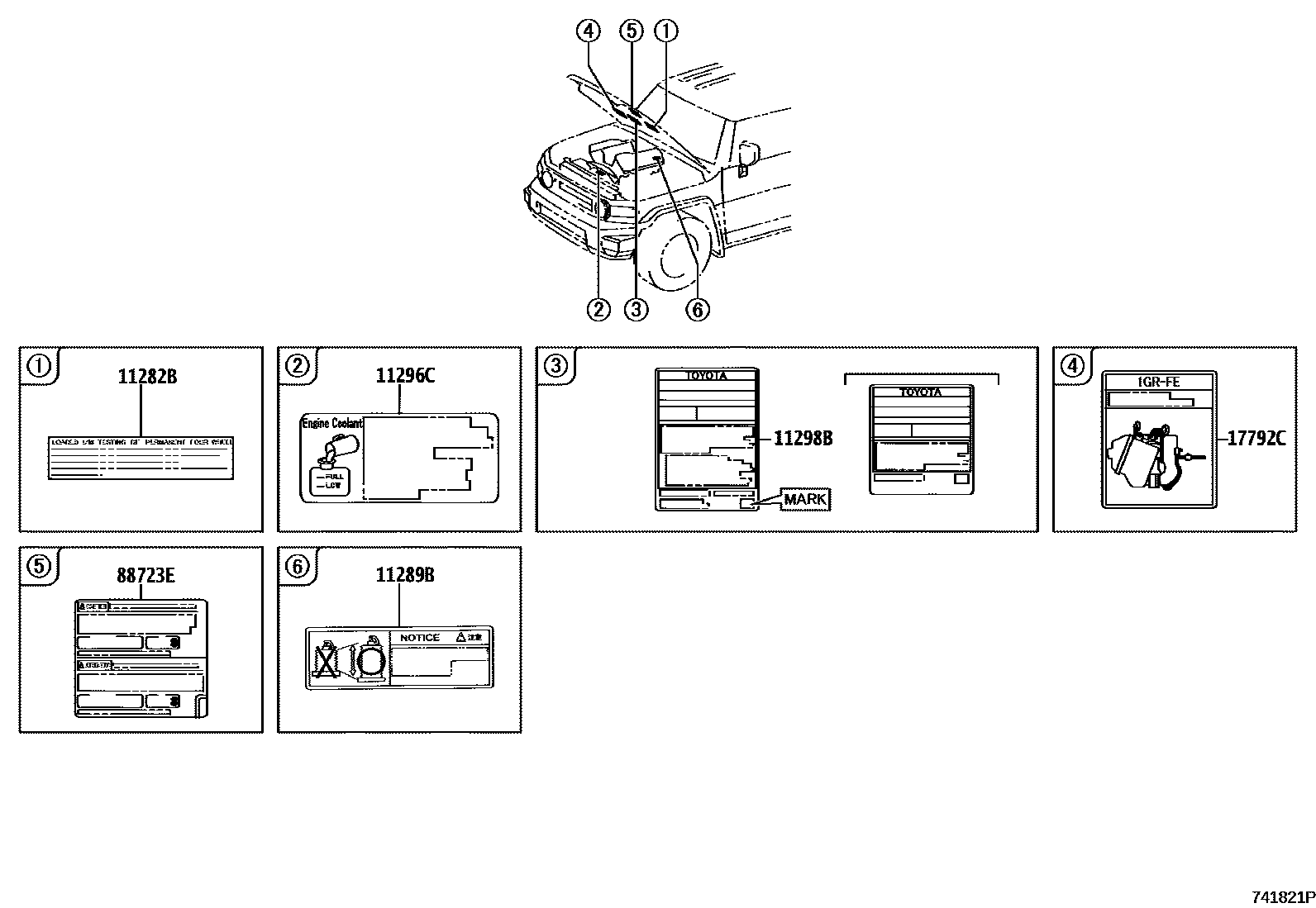

CAUTION PLATE

0001 1 0002 1 0003 1

11282BLABEL, LOADED TESTING CAUTION

main11282-74010i1GRFE..GSJ10;1GRFE..GSJ15..MTM200908-201011

11289BLABEL, SPARK PLUG NOTICE

main11289-31010i1GRFE..GSJ1#200601-200908

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1GRFE..GSJ1#200601-200703

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-31250i1GRFE..GSJ1#200601-200604

MARK = 7A

main11298-31251i1GRFE..GSJ1#200604-200707

MARK = A2

main11298-31420i1GRFE..GSJ1#; 1GRFE..GSJ1#..ATM201011-201107

MEXICO SPEC

main11298-31480i1GRFE..GSJ1#200707-200808

main11298-31690i1GRFE..GSJ1#200808-200908

main11298-31810i1GRFE..GSJ1#200908-201011

main11298-31830i1GRFE..GSJ1#; 1GRFE..GSJ1#..ATM201208-201308

MEXICO SPEC

main11298-31B90i1GRFE..GSJ1#; 1GRFE..GSJ1#..ATM201108-201208

MEXICO SPEC

main11298-31F00i1GRFE..GSJ1#; 1GRFE..GSJ1#..ATM201308-201407

MEXICO SPEC

17792CLABEL, ENGINE VACUUM HOSE INFORMATION

main17792-31250i1GRFE..GSJ1#200601-200808

88723ELABEL, COOLER SERVICE CAUTION

main88723-35070iGSJ1#201011-201407

6 parts on this diagram · 3 diagrams in section
