BACK DOOR PANEL & GLASS

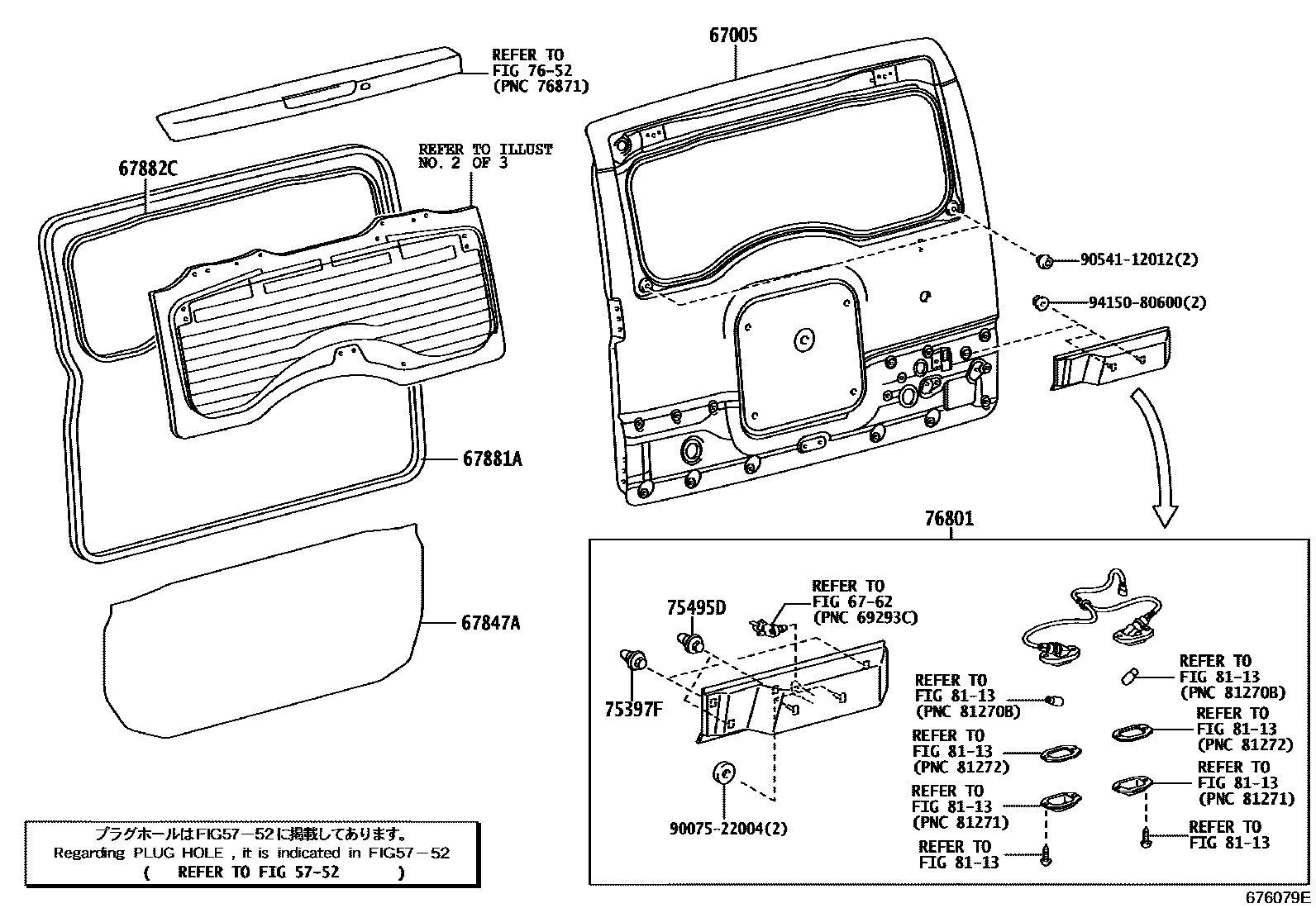

Parts diagram
5752
67005PANEL SUB-ASSY, BACK DOOR
main67005-35390i200601-200804
sub67005-35391
main67005-35391i201011-201108
CANADA SPEC&CONVENIENCE PACKAGE
sub67005-35392
sub90950-01958
main67005-35391i201011-201108
MEXICO SPEC
sub67005-35392
sub90950-01958
main67005-35391i201011-201108
MEXICO SPEC&CONVENIENCE PACKAGE
sub67005-35392
sub90950-01958
main67005-35391i201011-201108
CANADA SPEC
sub67005-35392
sub90950-01958
main67005-35391i200805-201011
sub67005-35392
sub90950-01958
main67005-35392i201108-201407
CANADA SPEC&CONVENIENCE PACKAGE
main67005-35392i201108-201407
CANADA SPEC
main67005-35392i201108-201407
MEXICO SPEC
main67005-35392i201108-201407
MEXICO SPEC&CONVENIENCE PACKAGE
6762
67847ACOVER, BACK DOOR SERVICE HOLE
main67847-35030i200601-201407
67881AWEATHERSTRIP, BACK DOOR
main67881-35050i200601-201204
sub67881-35051
main67881-35051i201205-201407
67882CWEATHERSTRIP, BACK DOOR, NO.2
main67882-35010i200601-200905
sub67882-35011
main67882-35011i200906-201203
sub67882-35012
main67882-35012i201204-201407
75397FCLIP, OUTSIDE MOULDING, NO.3
main75397-35010i200601-201407
75495DCLIP, OUTSIDE MOULDING, NO.4
main75495-35010i200601-201407
7652
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
main76801-35480i200601-201405
NO PAINT REQ.
sub76801-35481
main76801-35481i201406-201407
NO PAINT REQ.
sub76801-35482
8113
9007522004
main90075-22004
9054112012
main90541-12012
9415080600
main94150-80600

14 parts on this diagram · 3 diagrams in section
