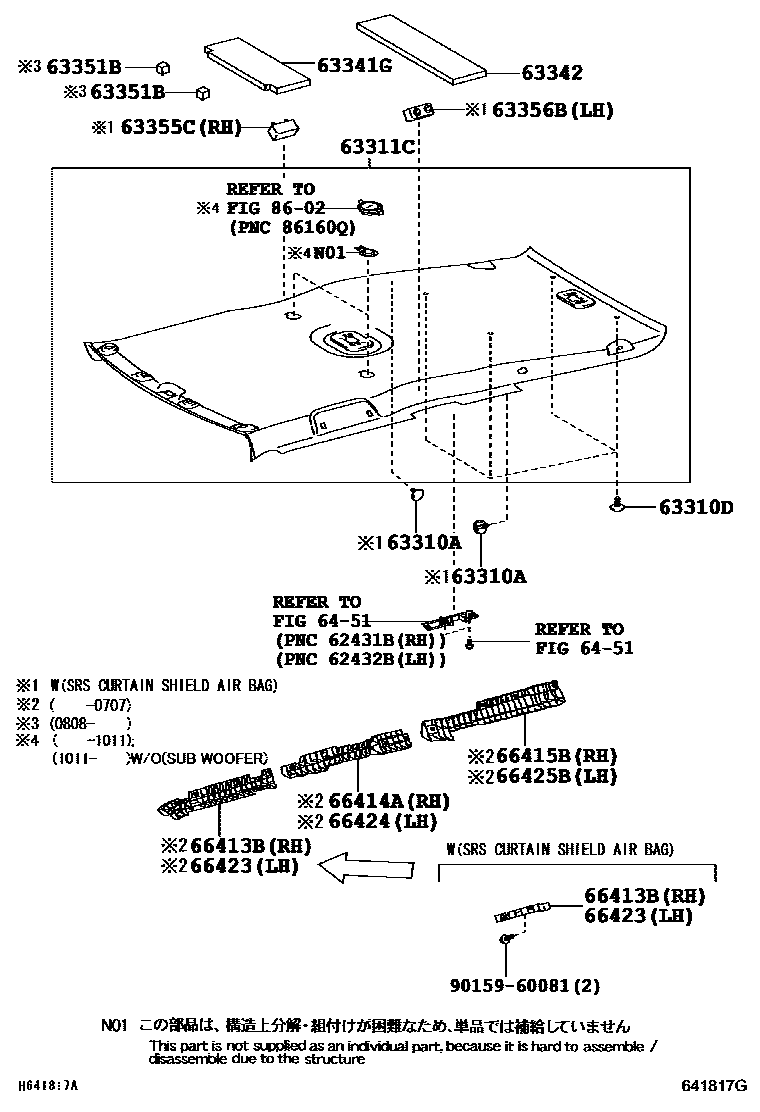

ROOF HEADLINING & SILENCER PAD

63310APLUG, HOLE(FOR ROOF HEADLINING ASSY)

main74618-35021-B1×2i200707-201011

LT.GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05164-B0×4i200601-201011

LT.GRAY,TRIM1#

63311CHEADLINING, ROOF

main63311-35381-B0i200707-200808

LT.GRAY,TRIM1#

main63311-35410-B0i200808-200907

LT.GRAY,TRIM1#

main63311-35411-B0i200908-201011

LT.GRAY,TRIM1#

main63311-35380-B0supersedes 63311-35370-B0i200601-200707

SRS AIR BAG-WITH(CURTAIN SHIELD),LT.GRAY,TRIM1#

main63311-35430-B0supersedes 63311-35411-B0i201011-201407

AUDIO-JBL 10SPEAKER WITH(SUB WOOFER),LT.GRAY,TRIM1#

main63311-35460-B0i201208-201407

VSC-WITH(A-TRC & CRAWL CONTROL),LT.GRAY,TRIM1#

main63311-35470-B0i201208-201407

VSC-WITH(A-TRC & CRAWL CONTROL)&AUDIO-JBL 10SPEAKER WITH(SUB WOOFER),LT.GRAY,TRIM1#

63341GPAD, ROOF SILENCER

main63341-35150i200601-201011

63342PAD, ROOF SILENCER, NO.2

main63341-35140i200601-201011

63351BPAD, ROOF HEADLINING

main63351-35060×2i200808-201011

63355CPAD, ROOF HEADLINING, RH

main63355-35060i200707-201011

63356BPAD, ROOF HEADLINING, LH

main63355-35060i200707-201011

6451INSIDE TRIM BOARD

→ Go to FIG 64-51

66413BSPACER, SIDE RAIL, FRONT RH

main66413-35040supersedes 66413-35030i200707-201011

66414ASPACER, SIDE RAIL, REAR RH

main66414-35030i200601-200707

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-35030i200601-200707

66423SPACER, SIDE RAIL, FRONT LH

main66423-35040supersedes 66423-35030i200707-201011

66424SPACER, SIDE RAIL, REAR LH

main66424-35030i200601-200707

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-35030i200601-200707

8602SPEAKER

→ Go to FIG 86-02

9015960081

main90159-60081

17 parts on this diagram · 1 diagram in section
