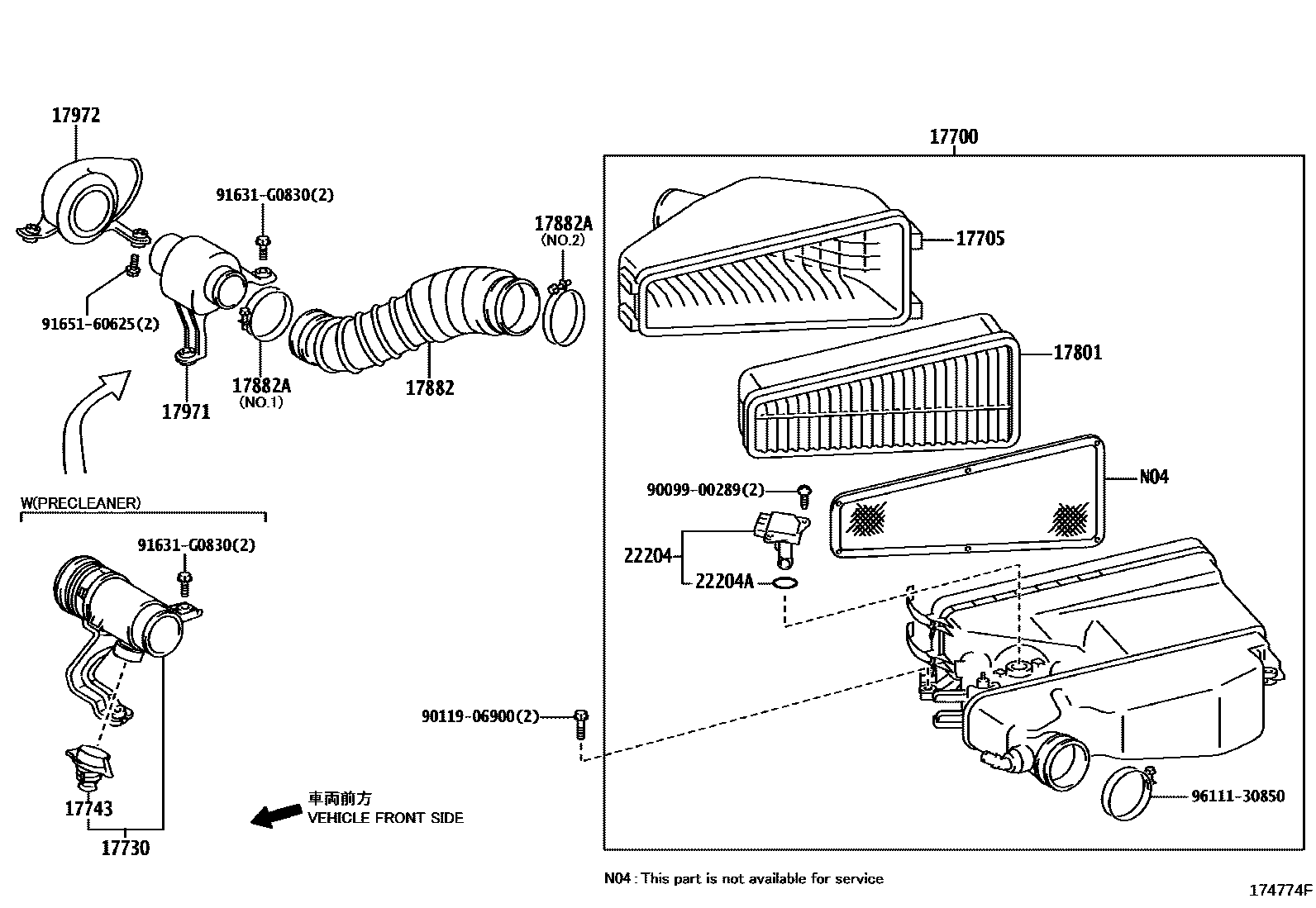

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-31530i1GRFE..GSJ1#200601-200604

sub17700-31531

main17700-31531i1GRFE..GSJ1#200605-200908

sub17700-31532

main17700-31870i1GRFE..GSJ1#200908-201104

sub17700-31871

main17700-31871i1GRFE..GSJ1#201104-201407

17705CAP SUB-ASSY, AIR CLEANER

main17705-31090i1GRFE..GSJ1#200601-200908

sub17705-0P010

main17705-31380i1GRFE..GSJ1#200908-201104

sub17705-31381

main17705-31381i1GRFE..GSJ1#201104-201407

17730PRECLEANER ASSY, AIR W/HOSE

main17730-31030

17743VALVE, DUST RELIEF

main17743-50010i1GRFE..GSJ1#200908-201407

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31090i1GRFE..GSJ1#200601-200908

main17801-38050i1GRFE..GSJ1#200908-201106

sub17801-38051

main17801-38051i1GRFE..GSJ1#201107-201407

17882HOSE, AIR CLEANER, NO.2

main17882-31080i1GRFE..GSJ1#200601-200908

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-30980i1GRFE..GSJ1#200601-200908

NO.1

main96111-31120i1GRFE..GSJ1#200601-200908

NO.2

17971INLET, COOL AIR, NO.1

main17971-31020i1GRFE..GSJ1#200601-200908

17972INLET, COOL AIR, NO.2

main17971-31030i1GRFE..GSJ1#201108-201407

main17972-31010i1GRFE..GSJ1#200601-201108

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i1GRFE..GSJ1#201104-201407

MARK 22204-0T040

sub22204-28010

main22204-0V010i1GRFE..GSJ1#201104-201407

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1GRFE..GSJ1#201104-201407

MARK 22204-0V020

main22204-22010i1GRFE..GSJ1#200601-200908

main22204-28010i1GRFE..GSJ1#201104-201407

MARK 22204-28010

main22204-37010i1GRFE..GSJ1#200908-201104

sub22204-28010

22204ARING, O(FOR INTAKE AIR FLOW METER)

main90099-14141i1GRFE..GSJ1#200601-200908

9009900289

main90099-00289

9011906900

main90119-06900

91631G0830

main91631-G0830

9165160625

main91651-60625

9611130850

main96111-30850

16 parts on this diagram · 2 diagrams in section
