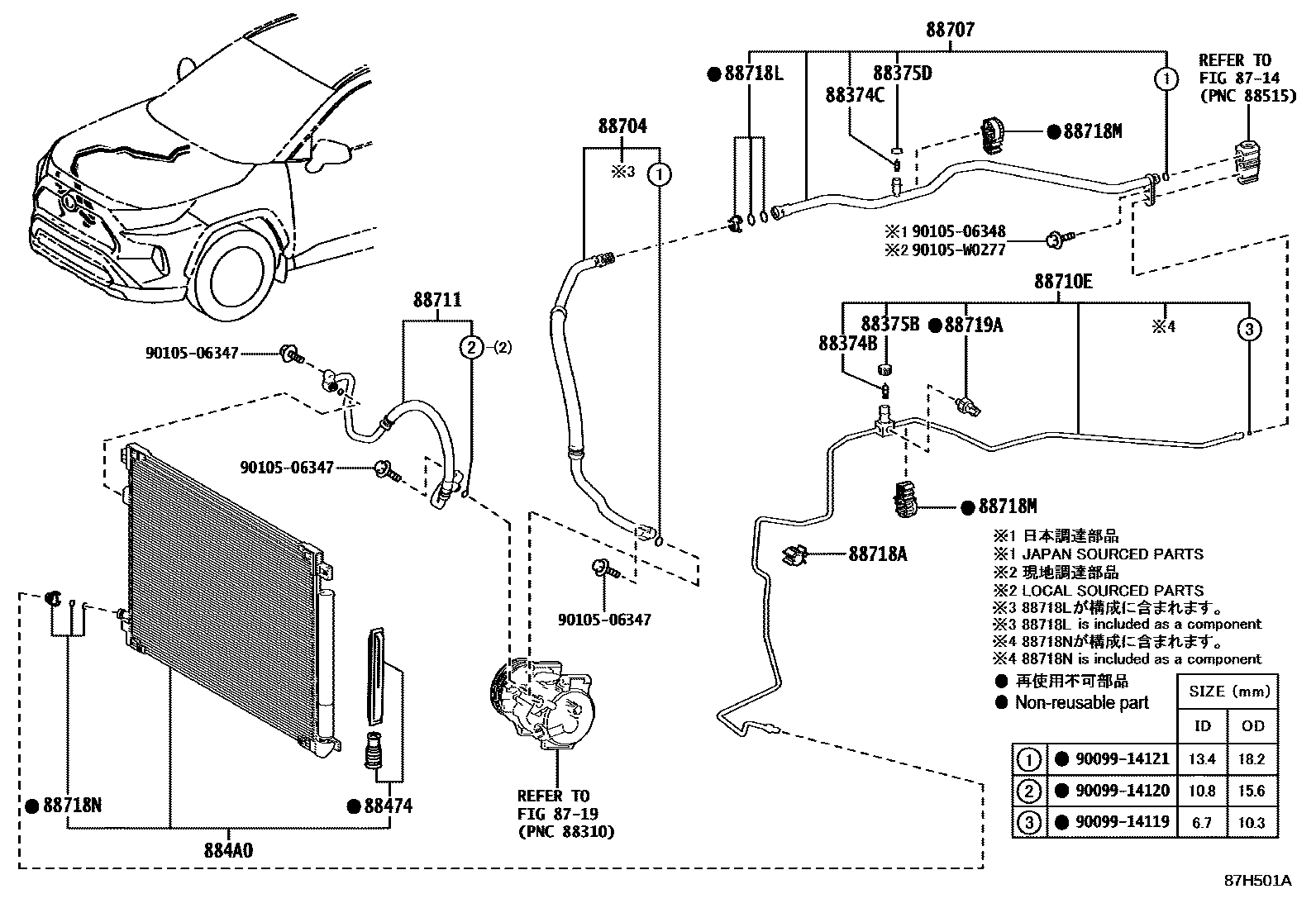

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iAXAA5#,AXAH5#,AXAL54202210-202310

88374CVALVE, SERVICE, NO.2

main88374-30010iAXAA5#,AXAH5#,AXAL54201811-202007

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAXAH52; AXAH54..G,M202008-202210

KOREA SPEC

main88375-30320iAXAA5#,AXAH54,AXAL54202008-202210

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAXAH52; AXAH54..G,M202310

KOREA SPEC

main88375-30310iAXAA5#,AXAH54,AXAL54202310

88474DRYER, COOLER

main88474-12010iAXAA5#,AXAH5#,AXAL54202112-202210

main88474-12020iAXAA5#,AXAH5#,AXAL54202008-202112

884A0CONDENSER ASSY, COOLER

main884A0-33020iAXAA5#201811-202007

main884A0-42040iAXAH5#,AXAL54201811-202007

main884A0-42060iAXAA5#202210-202310

main884A0-42070iAXAH5#,AXAL54202112-202210

T=11.5

main884A0-33010iAXAA52..M201811-202007

KOREA SPEC

88704HOSE SUB-ASSY, SUCTION

main88704-42730iAXAA5#202008-202210

main88704-42740iAXAH5#,AXAL54201811-202007

main88704-42840iAXAH5#,AXAL54202210-202310

main88704-42841iAXAH5#,AXAL54202403

88707PIPE SUB-ASSY, SUCTION

main88707-42170iAXAA5#..M201811-201910

main88707-42180iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-42110iAXAA5#..M201811-201910

main88710-42130iAXAA5#..M201910-202007

main88710-42150iAXAH54,AXAL54201902-202007

main88710-42160iAXAH52201811-202007

main88710-42440iAXAA52..G,X;AXAA54..G,V202210-202310

main88710-42441iAXAA54..G,V202310

main88710-42460iAXAA52..M;AXAA54..M,X202210-202310

main88710-42461iAXAA52;AXAA54..M,X202310

main88710-42480iAXAH54,AXAL54202210-202310

main88710-42490iAXAH52; AXAH54..G,M202310

KOREA SPEC

main88710-42120iAXAA52..M201811-202007

KOREA SPEC

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-42050iAXAA5#202210-202310

main88711-42060iAXAH5#,AXAL54202008-202112

main88711-48350iAXAH5#,AXAL54202310

main88711-78040iAXAH5#,AXAL54202112-202210

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-2F110iAXAA5#,AXAH5#,AXAL54201811-202007

88718LCLAMP, PIPING

main88718-52280iAXAA5#; AXAA5#,AXAH5#,AXAL54202210-202310

88718MCLAMP, PIPING

main88718-33490×2iAXAA5#..M201811-201910

main88718-33530iAXAA54..X201811-202007

main88718-33540iAXAA54..M,X;AXAA52,AXAH54,AXAL54202310

88718NCLAMP, PIPING

main88718-1E150iAXAA5#,AXAH5#,AXAL54201811-202007

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iAXAA5#,AXAH5#,AXAL54201811-202007

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

90105W0277

main90105-W0277

23 parts on this diagram · 8 diagrams in section
