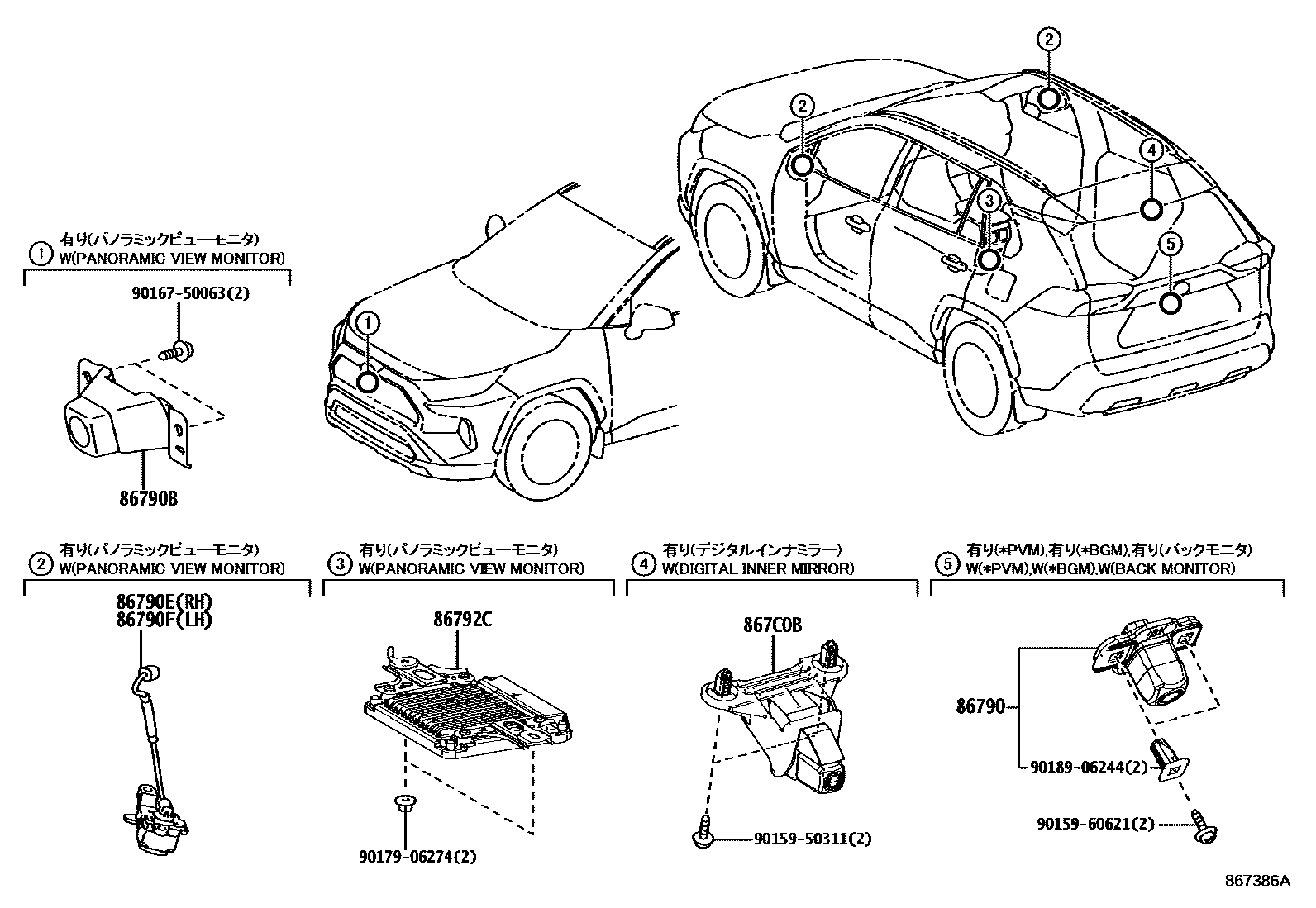

CAMERA & REAR MONITOR DISPLAY
86790CAMERA ASSY, TELEVISION
main867B0-42030supersedes 86790-42120iAXAA5#,AXAH54,AXAL54..M,X; AXAH52;AXAA5#,AXAH54,AXAL54..G,V201811-202007
BACK MONITOR-WITH(BACK GUIDE MONITOR)
main867B0-42090supersedes 86790-42250iAXAA5#,AXAH54,AXAL54..M,S,V,X; AXAH52;AXAA5#,AXAH54,AXAL54..G,P202112-202210
BACK MONITOR-WITH(BACK GUIDE MONITOR)
MARK=867B0-42110
MARK=867B0-42112
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790BCAMERA ASSY, TELEVISION, FR
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790ECAMERA ASSY, TELEVISION, SIDE RH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86790FCAMERA ASSY, TELEVISION, SIDE LH
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
86792CCOMPUTER, PARKING ASSIST
AUDIO-JBL 8INCH XM&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 9INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 9INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION) & *RCTB
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)&LANE CHANGE ASSIST-*BSM(EXTENSION EDITION)& *RCTB; BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
867C0BCAMERA ASSY, INNER MIRROR, RR
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK
INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR; INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & HOMELINK
9015950311
main90159-50311
9015960621
main90159-60621
9016750063
main90167-50063
9017906274
main90179-06274
9018906244
main90189-06244
11 parts on this diagram · 2 diagrams in section
