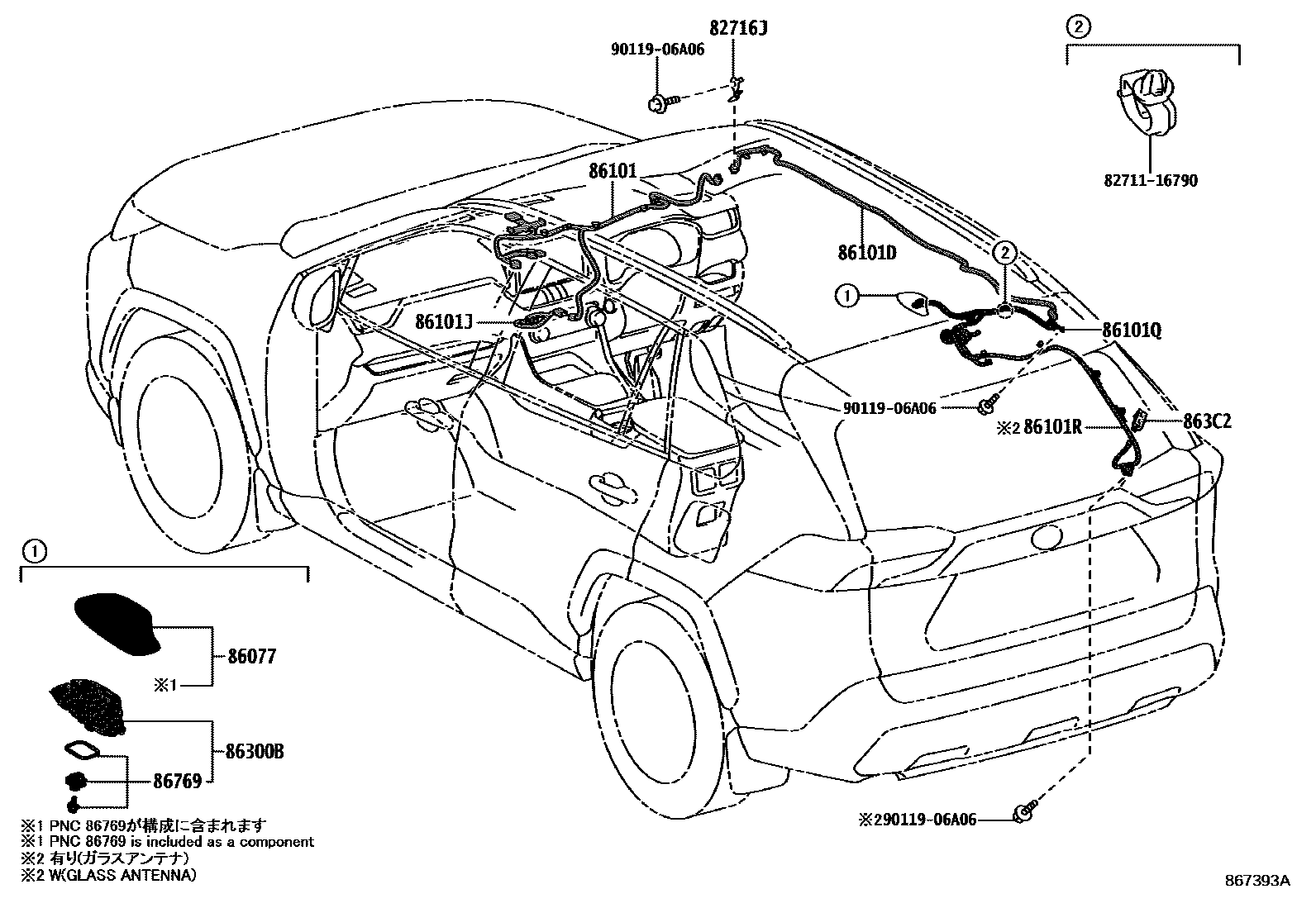

ANTENNA
82716JBRACKET, WIRING HARNESS CLAMP
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1D6
GRAY ME.,1G3
ASH GRAY ME.,2QU ,2QV ,2QW ,2QX
main86077-12060-C2supersedes 86077-47010-C0iAXAA5#;AXAH54,AXAL54..G,X; AXAH54,AXAL54..M201910-202007
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA
RED MC.,3T3
URBAN KHAKI,6X3
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
GRAYISH BLUE,8W2
SUPER WHITE 2,040
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,WHITE PEARL CS.,070; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,WHITE PEARL CS.,070; WHITE PEARL CS.,070
main86077-47010-B1supersedes 86077-12060-B4iAXAA5#..G; AXAA54,AXAH54,AXAL54..G,S; AXAH52; AXAH54..G202008-202210
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,GRAY ME.,1G3; GRAY ME.,1G3; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,GRAY ME.,1G3; KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD,GRAY ME.,1G3
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,SILVER ME.,1D6; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,SILVER ME.,1D6; SILVER ME.,1D6
main86077-47010-C0supersedes 86077-47020-C0iAXAA5#,AXAH54,AXAL54..G,V; AXAA54,AXAH54,AXAL54..G,V; AXAH52201811-202007
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2QJ ,2QY ,2QZ ,2RA; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,ATTITUDE BLACK MC.,218
main86077-47010-D1supersedes 86077-12060-D2iAXAA5#,AXAH54,AXAL54..G,V; AXAA54,AXAH54,AXAL54..G,V; AXAH52201811-202007
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,RED MC.,3T3; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,RED MC.,3T3; RED MC.,3T3
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,URBAN KHAKI,6X3; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,URBAN KHAKI,6X3; URBAN KHAKI,6X3
main86077-47010-J4iAXAA5#,AXAH54,AXAL54..M; AXAA5#,AXAH54,AXAL54..M,X; AXAA52,AXAH54..M; AXAA54..V; AXAH52202008-202112
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,CYAN METALLIC,8W9; AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT,CYAN METALLIC,8W9; AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT,CYAN METALLIC,8W9; AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT,CYAN METALLIC,8W9; CYAN METALLIC,8W9; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,CYAN METALLIC,8W9
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,DK. BLUE MC.,8X8; DK. BLUE MC.,8X8; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,DK. BLUE MC.,8X8; KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD,DK. BLUE MC.,8X8
main86077-47010-J6iAXAA5#,AXAH54,AXAL54..M,S,X; AXAA5#..M; AXAA5#..M,X; AXAA52..X;AXAA54,AXAH54,AXAL54..M,S,X; AXAA54,AXAH54,AXAL54..M,S; AXAH52; AXAH54..M202112-202210
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH,GRAYISH BLUE,8W2; AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,GRAYISH BLUE,8W2; GRAYISH BLUE,8W2; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH,GRAYISH BLUE,8W2; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,GRAYISH BLUE,8W2; HAWAII SPEC&AUDIO-6SPEAKER 7INCH,GRAYISH BLUE,8W2; KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD,GRAYISH BLUE,8W2; PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH,GRAYISH BLUE,8W2
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ASH GRAY ME.,2QU ,2QV ,2QW ,2QX
ATTITUDE BLACK MC.,218
RED MC.,3T3
URBAN KHAKI,6X3
CYAN METALLIC,8W9
DK. BLUE MC.,8X8
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH,ASH GRAY ME.,2QU ,2QV ,2QW ,2QX; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH,ASH GRAY ME.,2QU ,2QV ,2QW ,2QX
86101CORD SUB-ASSY, ANTENNA
KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD
KOREA SPEC&AUDIO-6SPEAKER 8INCH KOREA
main86101-42B60iAXAA5#,AXAH54,AXAL54..G; AXAA5#,AXAH54,AXAL54..M,P,S,X; AXAA5#..M; AXAA5#..M,X; AXAA52..X;AXAA54,AXAH54,AXAL54..M,P,S,X; AXAA54,AXAH54,AXAL54..M; AXAA54..V202112-202210
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH; AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH; HAWAII SPEC&AUDIO-6SPEAKER 7INCH; PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH; PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH
AUDIO-6SPEAKER 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2; AUDIO-JBL 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2
AUDIO-JBL 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2
AUDIO-6SPEAKER 8INCH XM; AUDIO-JBL 8INCH XM; AUDIO-JBL 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2
AMERICAN SAMOA SPEC; AUDIO-JBL 10.5INCH XM&DATA COMMUNICATION MODULE-WITHOUT; GUAM,SAIPAN SPEC
86101DCORD SUB-ASSY, ANTENNA, NO.3
KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD
main86101-42B10iAXAA5#,AXAH54,AXAL54..G; AXAA5#,AXAH54,AXAL54..M,P,S,X; AXAA5#..M; AXAA5#..M,X; AXAA52..X;AXAA54,AXAH54,AXAL54..M,P,S,X; AXAA54,AXAH54,AXAL54..M; AXAA54..V202112-202210
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH; AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH; HAWAII SPEC&AUDIO-6SPEAKER 7INCH; PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH; PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-42D50iAXAA5#,AXAH54; AXAA5#,AXAH54..G,M,V; AXAA5#,AXAH54..G,V; AXAA54,AXAH54..G,V201811-201910
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH; AUDIO-6SPEAKER 7INCH&DATA COMMUNICATION MODULE-WITHOUT; AUDIO-6SPEAKER 8INCH; AUDIO-6SPEAKER 8INCH&DATA COMMUNICATION MODULE-WITHOUT; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH
AUDIO-6SPEAKER 7INCH DVD&DATA COMMUNICATION MODULE-WITHOUT
AMERICAN SAMOA SPEC; AUDIO-JBL 10.5INCH XM&DATA COMMUNICATION MODULE-WITHOUT; GUAM,SAIPAN SPEC
KOREA SPEC&AUDIO-6SPEAKER 8INCH KOREA
AUDIO-6SPEAKER 8INCH XM; AUDIO-JBL 8INCH XM
AUDIO-6SPEAKER 8INCH XM; AUDIO-JBL 8INCH XM; AUDIO-JBL 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2
86101QCORD SUB-ASSY, ANTENNA, NO.4
AUDIO-6SPEAKER 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2; AUDIO-JBL 8INCH XM&DATA COMMUNICATION MODULE-4G AIRBAG-LINK NA/AU-T1/2
KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA
main86101-42A60iAXAA5#,AXAH54,AXAL54..G; AXAA5#,AXAH54,AXAL54..M,P,S,X; AXAA5#..M; AXAA5#..M,X; AXAA52..X;AXAA54,AXAH54,AXAL54..M,P,S,X; AXAA54,AXAH54,AXAL54..M; AXAA54..V202112-202210
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 7INCH; AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 7INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH; HAWAII SPEC&AUDIO-6SPEAKER 7INCH; PUERTO RICO SPEC&AUDIO-6SPEAKER 7INCH; PUERTO RICO SPEC&AUDIO-6SPEAKER 8INCH
AMERICAN SAMOA SPEC; AUDIO-JBL 10.5INCH XM&DATA COMMUNICATION MODULE-WITHOUT; GUAM,SAIPAN SPEC
86101RCORD SUB-ASSY, ANTENNA, NO.5
AUDIO-6SPEAKER 7INCH DVD
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-47180supersedes 86760-10010iAXAA5#,AXAH54,AXAL54..G,V; AXAA54,AXAH54,AXAL54..G,V; AXAH52201811-202007
AMERICAN SAMOA SPEC&AUDIO-6SPEAKER 8INCH; GUAM,SAIPAN SPEC&AUDIO-6SPEAKER 8INCH
KOREA SPEC&AUDIO-6SPEAKER 8INCH DVD KOREA
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
AUDIO-6SPEAKER 7INCH DVD
86769HOUSING, ROOF ANTENNA
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9011906A06
main90119-06A06
12 parts on this diagram · 1 diagram in section
