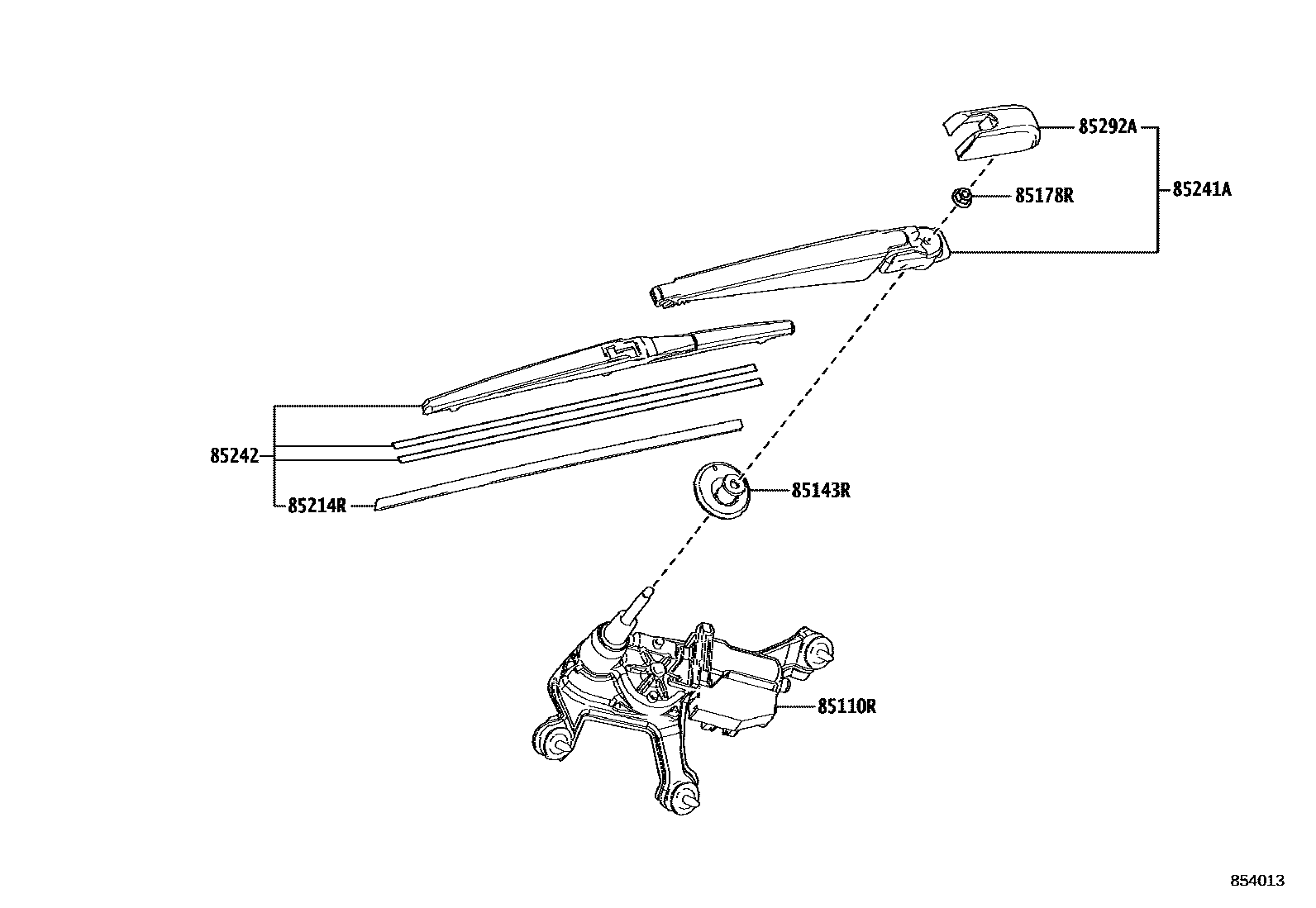

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-42100iAXAA5#,AXAH5#201811-201911

main85130-42101iAXAA5#,AXAH5#,AXAL54201911-202007

main85130-42102iAXAA5#,AXAH5#,AXAL54202303-202310

85143RGROMMET, REAR WIPER MOTOR

main85143-42050iAXAA5#,AXAH5#,AXAL54201811-202007

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iAXAA5#,AXAH5#,AXAL54201811-202007

85214RRUBBER, REAR WIPER

main85214-42040iAXAA5#,AXAH5#,AXAL54201811-202007

85241AARM, REAR WIPER

main85241-42100iAXAA5#,AXAH5#,AXAL54201811-202007

85242BLADE, RR WIPER

main85242-72010iAXAA5#,AXAH5#,AXAL54201811-202007

85292ACAP, REAR WIPER ARM HEAD

main85292-42020iAXAA5#,AXAH5#,AXAL54201811-202007

7 parts on this diagram · 2 diagrams in section
