CLEARANCE & BACK SONAR
5252FRONT BUMPER & BUMPER STAY
5253REAR BUMPER & BUMPER STAY
89340ACOMPUTER ASSY, CLEARANCE WARNING
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
main89340-42260iAXAA5#,AXAH54,AXAL54..M; AXAH52;AXAA5#,AXAH54,AXAL54..G,V; AXAH54,AXAL54..P202210-202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)
AUDIO-JBL 10.5INCH XM&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
89341KSENSOR, ULTRASONIC, FRONT CORNER
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SUPER WHITE 2,040; SUPER WHITE 2,040
main89341-33220-A1×2iAXAA5#,AXAH54,AXAL54..M; AXAH52;AXAA5#,AXAH54,AXAL54..G; AXAH54,AXAL54..P202210-202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM WHITE PEARL MC.,2PS; PLATINUM WHITE PEARL MC.,089
WHITE PEARL CS.,070
ATTITUDE BLACK MC.,218 ,2QW; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2VV
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),RED MC.,3T3; RED MC.,3T3
main89341-33220-G5×2supersedes 89341-K0060-G2iAXAA5#,AXAH54,AXAL54..M; AXAA54..V; AXAH52202210-202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),URBAN KHAKI,6X3; URBAN KHAKI,2QU ,6X3; URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SILVER ME.,1D6; SILVER ME.,1D6
main89341-33220-P2×2iAXAA5#,AXAH54,AXAL54..M; AXAH52;AXAA5#,AXAH54,AXAL54..G; AXAH54,AXAL54..P202210-202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAY ME.,2QZ; GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAYISH BLUE,2VV; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAYISH BLUE,8W2; GRAYISH BLUE,8W2
SUPER WHITE 2,040
WHITE PEARL CS.,070
GRAY ME.,1G3
SILVER ME.,1D6
ATTITUDE BLACK MC.,218
RED MC.,3T3
URBAN KHAKI,6X3
DK. BLUE MC.,8X8
GRAYISH BLUE,8W2
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SUPER WHITE 2,040; SUPER WHITE 2,040
main89341-K0060-A4×2iAXAA5#,AXAH54,AXAL54..M; AXAH52;AXAA5#,AXAH54,AXAL54..G; AXAH54,AXAL54..P202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM WHITE PEARL MC.,089; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),PLATINUM WHITE PEARL MC.,2PS; PLATINUM WHITE PEARL MC.,089
main89341-K0060-B1×2iAXAA5#,AXAH54,AXAL54..M; AXAH52;AXAA5#,AXAH54,AXAL54..G; AXAH54,AXAL54..P202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAY ME.,1G3; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAY ME.,2QZ; GRAY ME.,1G3
main89341-K0060-B2×2iAXAA5#,AXAH54,AXAL54..M; AXAH52;AXAA5#,AXAH54,AXAL54..G; AXAH54,AXAL54..P202310
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SILVER ME.,1D6; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),SILVER ME.,2QY; SILVER ME.,1D6
ATTITUDE BLACK MC.,218; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),RED MC.,3T3; RED MC.,3T3
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),URBAN KHAKI,6X3; URBAN KHAKI,2QU ,6X3; URBAN KHAKI,6X3
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAYISH BLUE,2VV; CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),GRAYISH BLUE,8W2; GRAYISH BLUE,8W2
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DK. BLUE MC.,8X8; DK. BLUE MC.,8X8
HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),CYAN METALLIC,2QV ,8W9
CLEARANCE & BACK SONAR-WITH(FRONT&REAR),CYAN METALLIC,8W9
89341LSENSOR, ULTRASONIC, FRONT CENTER
MAT BLACK
GRAY,##
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DUMMY-MAT BLACK; DUMMY-MAT BLACK
DUMMY-MAT BLACK
GRAY METALLIC
HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2VV,##
KOREA SPEC&AUDIO-6SPEAKER 7INCH DVD,GRAY
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV
89342SENSOR, ULTRASONIC, REAR CORNER
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),MAT BLACK; MAT BLACK
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DUMMY-MAT BLACK; DUMMY-MAT BLACK
DUMMY-MAT BLACK
HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2VV
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV
89342ASENSOR, ULTRASONIC, REAR CENTER
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),MAT BLACK; MAT BLACK
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),DUMMY-MAT BLACK; DUMMY-MAT BLACK
DUMMY-MAT BLACK
HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)
HV EMOTIONAL PACKAGE&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2QJ ,2QY ,2QZ ,2RA
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR),ATTITUDE BLACK MC.,2PS ,2QY ,2QZ ,2VV
89343CBUZZER, CLEARANCE WARNING, NO.1
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); KOREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
89343DBUZZER, CLEARANCE WARNING, NO.2
main89747-30040iAXAA5#,AXAH54,AXAL54..G; AXAA5#,AXAH54,AXAL54..M,V; AXAA52,AXAH54..M; AXAH52201811-202007
CLEARANCE & BACK SONAR-WITH(FRONT&REAR); CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR); KOREA SPEC&CLEARANCE & BACK SONAR-WITH(FRONT&REAR)
89348DCLIP, ULTRASONIC SENSOR
CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

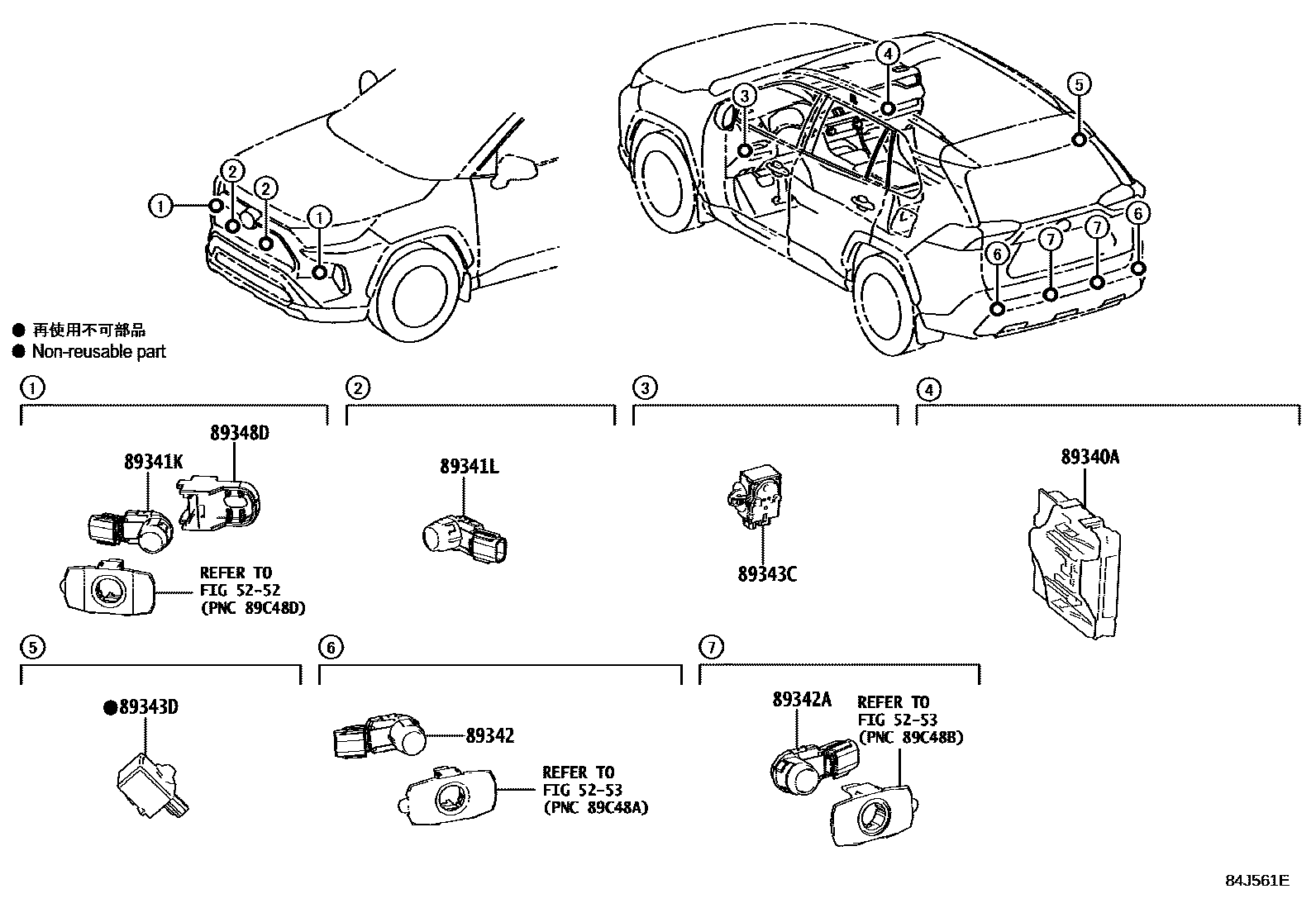

10 parts on this diagram · 2 diagrams in section
