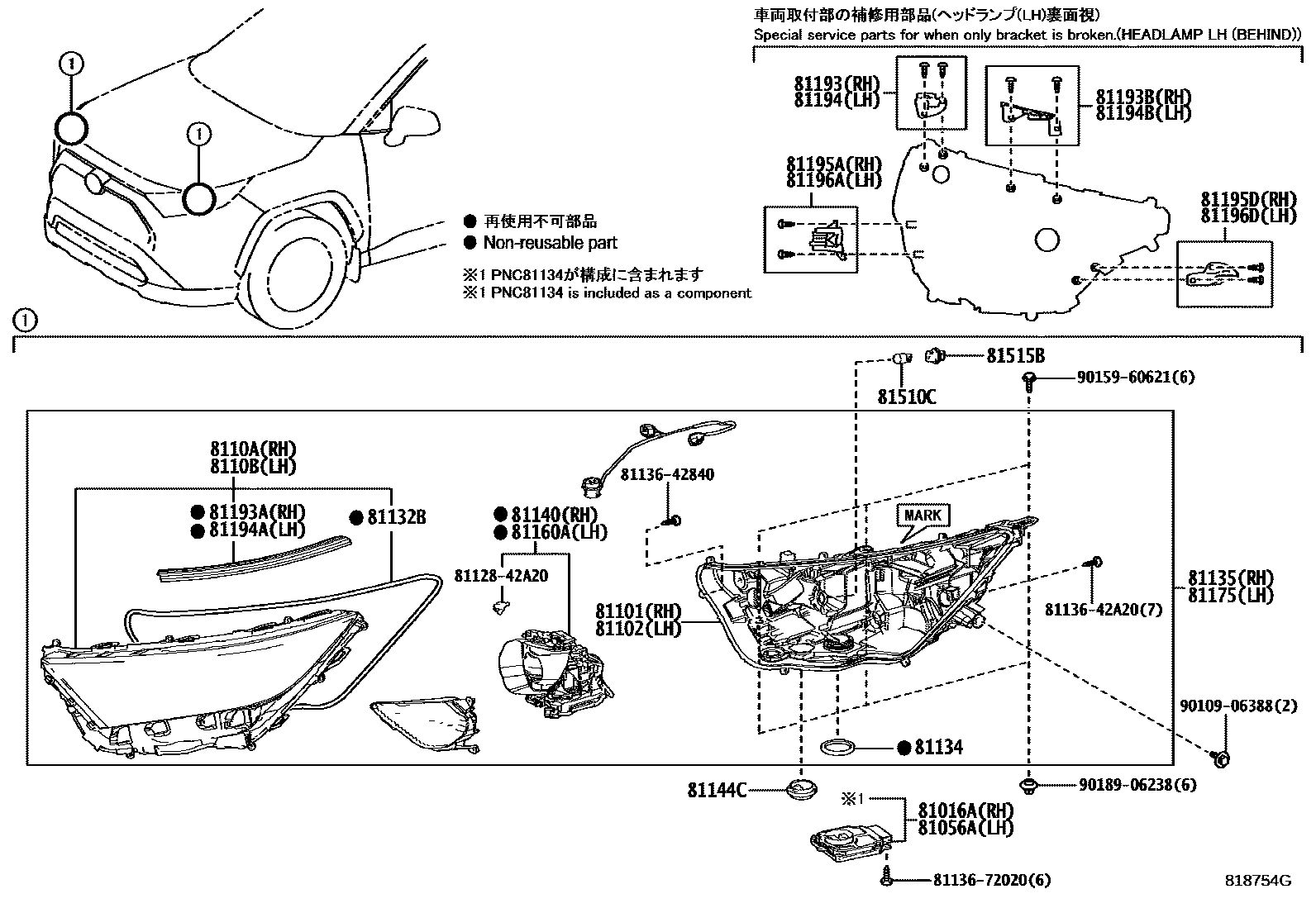

HEADLAMP

0001 1PROJECTOR & TURN SIGNAL=BULB 0002 1PROJECTOR:W(SIDE MARKER) 0005 1MULTI REFLECTOR&TURN SIGNAL=B0006 1MULTI REFLECTOR:W(SIDE MARKER0007 1PROJECTOR & TURN SIGNAL=LED 0009 1PROJECTOR & TURN SIGNAL=LED

81016ACOMPUTER SUB-ASSY, HEADLAMP, RH

main81016-42A20iAXAH52201811-201910

main81016-42A21iAXAH52; AXAH54..G,M202008-202112

KOREA SPEC

main81016-42E00iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC

main81016-42830iAXAA52..M201811-202007

KOREA SPEC

81056ACOMPUTER SUB-ASSY, HEADLAMP, LH

main81056-42A20iAXAH52201811-201910

main81056-42A21iAXAH52; AXAH54..G,M201910-202007

KOREA SPEC

main81056-42E00iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC

main81056-42830iAXAA52..M201811-202007

KOREA SPEC

81101HOUSING SUB-ASSY, HEADLAMP, RH

main8111B-42A20iAXAH52201811-202007

main8111B-42E00iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC,REFER TO PNC 81135; REFER TO PNC 81135

81102HOUSING SUB-ASSY, HEADLAMP, LH

main8115B-42A20iAXAH52201811-202007

main8115B-42E00iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC,REFER TO PNC 81175; REFER TO PNC 81175

8110ALENS SUB-ASSY, HEADLAMP, RH

main8110A-42A30iAXAH52; AXAH54..G,M202008-202101

KOREA SPEC

main8110A-42A33iAXAH52; AXAH54..G,M202101-202112

KOREA SPEC,REFER TO PNC 81135; REFER TO PNC 81135

main8110A-42E10iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC,REFER TO PNC 81135; REFER TO PNC 81135

main8110A-42840iAXAA52..M202008-202101

KOREA SPEC

main8110A-42842iAXAA52..M202101-202112

KOREA SPEC

8110BLENS SUB-ASSY, HEADLAMP, LH

main8110B-42A30iAXAH52201811-202007

main8110B-42A33iAXAH52; AXAH54..G,M202101-202112

KOREA SPEC,REFER TO PNC 81175; REFER TO PNC 81175

main8110B-42E10iAXAH52; AXAH54..G,M202210-202310

KOREA SPEC

main8110B-42840iAXAA52..M201811-202007

KOREA SPEC

main8110B-42842iAXAA52..M202101-202112

KOREA SPEC

81132BGASKET, HEADLAMP LENS

main81132-42830×2iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

81134GASKET, HEADLAMP

main81134-42830iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

81135UNIT ASSY, HEADLAMP, RH

main81130-42810iAXAA5#..G,M,V201811-202004

main81130-42811iAXAA5#..G,M,V202004-202007

main81130-42812iAXAA5#..G,M,V202101-202112

main81130-42820iAXAA5#,AXAH54..X201811-202004

main81130-42821iAXAA5#,AXAH54,AXAL54..X202004-202007

main81130-42822iAXAH54,AXAL54..X202101-202112

MARK=D

main81130-42A01iAXAH54,AXAL54..G,M202008-202101

main81130-42A02iAXAH54,AXAL54..G,M202101-202112

main81130-42D80iAXAA5#..M,V,X202210-202310

main81130-42D90iAXAA5#,AXAH54,AXAL54..G,P,S202210-202310

main81130-42E70iAXAH54,AXAL54..X202112-202210

main81130-42E80iAXAH54,AXAL54..M202112-202210

main81145-42A30iAXAH52201811-201910

main81145-42A31iAXAH52; AXAH54..G,M201910-202004

KOREA SPEC

main81145-42A32supersedes 81130-42A00iAXAH52; AXAH54..G,M202008-202101

KOREA SPEC

main81145-42A33iAXAH52; AXAH54..G,M202101-202112

KOREA SPEC,MARK = 2; MARK = 2

main81145-42E10iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC,MARK = K; MARK = K

main81145-42840iAXAA52..M201811-202004

KOREA SPEC

main81145-42841iAXAA52..M202008-202101

KOREA SPEC

main81145-42842iAXAA52..M202101-202112

KOREA SPEC

81140UNIT ASSY, HEADLAMP LED, RH

main81140-42A30iAXAH52201811-201910

main81140-42A31iAXAH52; AXAH54..G,M201910-202007

KOREA SPEC

main81140-42E10iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC,REFER TO PNC 81135; REFER TO PNC 81135

main81140-42840iAXAA52..M202008-202112

KOREA SPEC

81144CCOVER, HEADLAMP SOCKET

main81135-42830×2iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

81160AUNIT ASSY, HEADLAMP LED, LH

main81160-42A30iAXAH52201811-201910

main81160-42A31iAXAH52; AXAH54..G,M202008-202101

KOREA SPEC

main81160-42E10iAXAH52; AXAH54..G,M202112-202210

KOREA SPEC,REFER TO PNC 81175; REFER TO PNC 81175

main81160-42840iAXAA52..M201811-202007

KOREA SPEC

81175UNIT ASSY, HEADLAMP, LH

main81170-42810iAXAA5#..G,M,V201811-202004

main81170-42811iAXAA5#..G,M,V202004-202007

main81170-42812iAXAA5#..G,M,V202101-202112

main81170-42820iAXAA5#,AXAH54..X201811-202004

main81170-42821iAXAA5#,AXAH54,AXAL54..X202008-202101

main81170-42822iAXAA5#..X202101-202210

MARK=D

main81170-42A01iAXAH54,AXAL54..G,M202008-202101

main81170-42A02iAXAH54,AXAL54..G,M202101-202112

main81170-42D80iAXAA5#..M,V,X202310

main81170-42D90iAXAA5#,AXAH54,AXAL54..G,P,S202310

main81170-42E70iAXAH54,AXAL54..X202112-202210

main81170-42E80iAXAH54,AXAL54..M,X202310

main81185-42A30iAXAH52201811-201910

main81185-42A31iAXAH52; AXAH54..G,M201910-202004

KOREA SPEC

main81185-42A32supersedes 81170-42A00iAXAH52; AXAH54..G,M202004-202007

KOREA SPEC

main81185-42A33iAXAH52; AXAH54..G,M202101-202112

KOREA SPEC,MARK = 2; MARK = 2

main81185-42E10iAXAH52; AXAH54..G,M202310

KOREA SPEC

main81185-42840iAXAA52..M201811-202004

KOREA SPEC

main81185-42841iAXAA52..M202004-202007

KOREA SPEC

main81185-42842iAXAA52..M202101-202112

KOREA SPEC

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-42050iAXAA5#,AXAH5#,AXAL54201811-202007

81193APROTECTOR, HEADLAMP, RH

main81117-42830iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

main81117-42831iAXAH52; AXAH54..G202108-202209

KOREA SPEC

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-42060iAXAA5#,AXAH5#,AXAL54201811-202007

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-42050iAXAA5#,AXAH5#,AXAL54201811-202007

81194APROTECTOR, HEADLAMP, LH

main81157-42830iAXAA52..M;AXAH54..G,M; AXAH52202008-202108

KOREA SPEC

main81157-42831iAXAH52; AXAH54..G202108-202209

KOREA SPEC

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-42060iAXAA5#,AXAH5#,AXAL54201811-202007

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42050iAXAA5#,AXAH5#,AXAL54201811-202007

81195DRETAINER, HEADLAMP PROTECTOR, LOWER RH NO.2

main81195-42060iAXAA5#,AXAH5#,AXAL54201811-202007

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42050iAXAA5#,AXAH5#,AXAL54201811-202007

81196DRETAINER, HEADLAMP PROTECTOR, LOWER LH NO.2

main81196-42060iAXAA5#,AXAH5#,AXAL54201811-202007

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

12V 21W,AMBER; 12V 21W,AMBER,KOREA SPEC

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

main90075-60083×2iAXAA5#,AXAH54,AXAL54..G202008-202112

8112842A20NUT, HEADLAMP

main81128-42A20

8113642840PROTECTOR, HEADLAMP, NO.1 RH

main81136-42840

8113642A20PROTECTOR, HEADLAMP, NO.1 RH

main81136-42A20

8113672020PROTECTOR, HEADLAMP, NO.1 RH

main81136-72020

9010906388

main90109-06388

9015960621

main90159-60621

9018906238

main90189-06238

32 parts on this diagram · 6 diagrams in section
