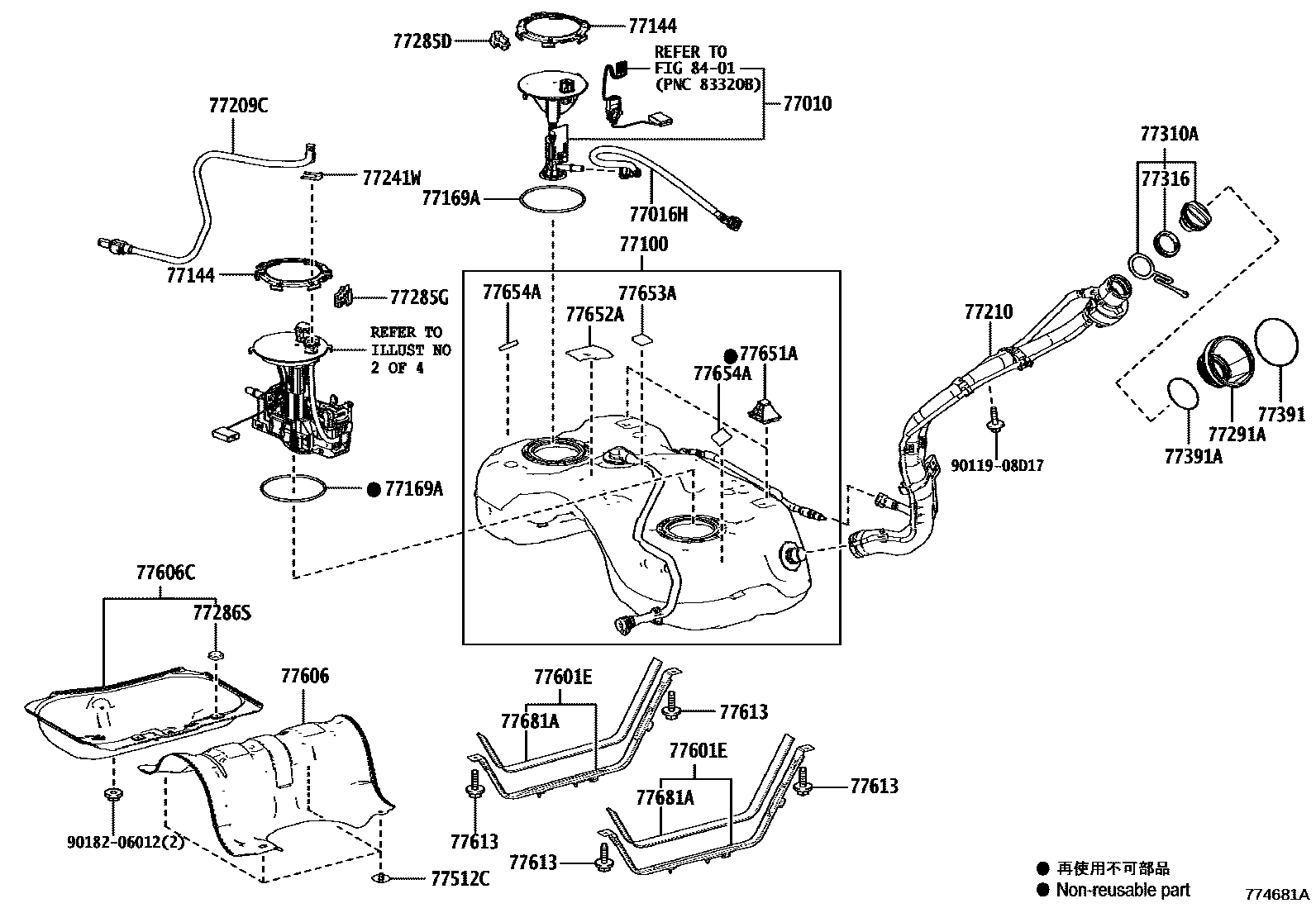

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FULE SUCTION TUBE(PUMP & GAGE0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL LID OPENER 0007 1FUEL LID OPENER

77010TUBE ASSY, FUEL TANK VENT

main77010-42060iAXAA5#201811-202007

77016HTUBE SUB-ASSY, FUEL RETURN VENT

main77016-42070iAXAA5#201811-202007

77100TANK ASSY, FUEL

main77001-42300iAXAA5#201811-202007

main77001-42320iAXAH5#201811-202002

main77001-42321iAXAH5#,AXAL54202310

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAXAA5#; AXAH5#,AXAL54202310

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iAXAA5#; AXAH5#,AXAL54201811-202007

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42210iAXAA5#201811-202007

main77209-42230iAXAH5#,AXAL54202310

77210PIPE ASSY, FUEL TANK FILLER

main77210-42180iAXAA5#201811-202007

main77210-42200iAXAH5#,AXAL54202210-202310

77241WCLIP, TUBE JOINT

main77241-33011iAXAH5#201811-202003

main77241-60550iAXAA5#202108-202210

77285DCLAMP, FUEL TUBE, NO.1

main77285-30350iAXAA5#; AXAH5#,AXAL54202310

77285GCLAMP, FUEL TUBE, NO.1

main77285-42240iAXAH5#,AXAL54201811-202007

77286SCUSHION, FUEL TANK PROTECTOR

main77286-12110×3iAXAA5#202008-202210

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-42060iAXAA5#,AXAH5#,AXAL54202210-202310

77310ACAP ASSY, FUEL TANK

main77300-53030iAXAA5#201811-202007

main77300-53040iAXAH5#,AXAL54202310

77316GASKET, FUEL TANK CAP

main77316-75020iAXAA5#,AXAH5#,AXAL54202008-202210

77391RING, FUEL INLET BOX

main77391-42010iAXAA5#,AXAH5#,AXAL54202008-202210

77391ARING, FUEL INLET BOX

main77391-12020iAXAA5#,AXAH5#,AXAL54201811-202007

77512CBRACKET, FUEL TANK

main77512-35140×4iAXAA5#202310

77601EBAND SUB-ASSY, FUEL TANK

main77601-42100×2iAXAA5#202008-202210

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-42030iAXAA5#201811-202007

main77606-42050iAXAH5#,AXAL54202210-202310

77606CPROTECTOR, FUEL TANK, NO.2

main77606-42040iAXAA5#201811-202007

77613BOLT, FUEL TANK BAND SET

main90119-10A05×4iAXAA5#; AXAH5#,AXAL54202008-202210

77651ACUSHION, FUEL TANK, NO.1

main77651-33060×2iAXAA5#201811-202007

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iAXAA5#202210-202310

main77652-42040iAXAH5#,AXAL54202210-202310

77653ACUSHION, FUEL TANK, NO.3

main77652-33060iAXAA5#201811-202007

77654ACUSHION, FUEL TANK, NO.4

main77652-47010×2iAXAA5#201811-202007

77681ASEAT, FUEL TANK BAND

main77681-42040iAXAH5#,AXAL54201811-202007

main77682-75010×2iAXAA5#202310

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908D17

main90119-08D17

9018206012

main90182-06012

29 parts on this diagram · 7 diagrams in section
