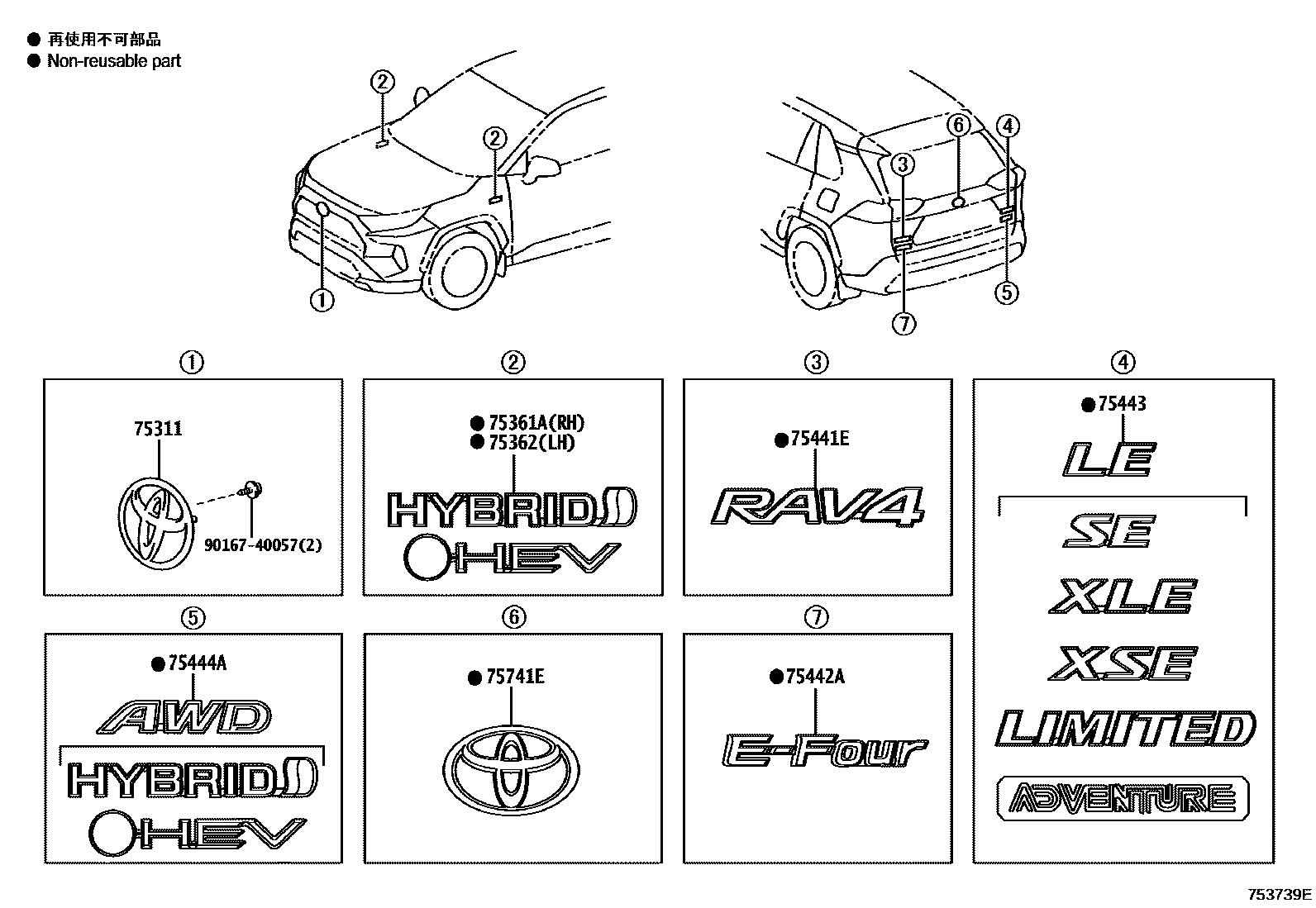

EMBLEM & NAME PLATE

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-33130iAXAA5#201811-202007

main53141-33140iAXAH5#,AXAL54201811-202007

main53141-42030iAXAA5#202310

75361APLATE, FRONT FENDER NAME, NO.1

main75361-42050iAXAH5#,AXAL54201811-202007

HYBRID

main75440-47010iAXAH52; AXAH54..G,M202411

HEV,KOREA SPEC,RH; HEV,RH

75362PLATE, FRONT FENDER NAME, NO.2

main75362-42050iAXAH5#,AXAL54201811-202007

HYBRID

main75440-47010iAXAH52; AXAH54..G,M202411

HEV,KOREA SPEC,LH; HEV,LH

75441EPLATE, BACK DOOR NAME, NO.1

main75431-42180iAXAA5#,AXAH5#,AXAL54..G,M,P,S,X202310

RAV4

main75431-42220iAXAA54..V201811-202007

RAV4

75442APLATE, BACK DOOR NAME, NO.2

main75444-42180iAXAH54..G,M202210-202310

E-FOUR,KOREA SPEC

75443PLATE, BACK DOOR NAME, NO.3

main75440-42110iAXAH54,AXAL54202411

HEV

main75443-42080iAXAA5#,AXAH54,AXAL54..X201811-202007

LE

main75443-42090iAXAA5#,AXAH5#,AXAL54..M202210-202310

XLE

main75443-42100iAXAA5#,AXAH54,AXAL54..G202008-202210

LIMITED

main75443-42110iAXAA54..V202310

ADVENTURE

main75443-42120iAXAH54,AXAL54..S202112-202210

SE

main75443-42130iAXAH54,AXAL54..P202210-202310

XSE

75444APLATE, BACK DOOR NAME, NO.4

main75440-42110iAXAH52; AXAH54..G,M202411

HEV; HEV,KOREA SPEC

main75444-42170iAXAA54..G,M,X201811-202007

AWD

main75445-42030iAXAH5#,AXAL54202210-202310

HYBRID

75741EEMBLEM, SYMBOL

main75403-42060iAXAH5#,AXAL54202008-202210

main90975-02070iAXAA5#202310

9016740057

main90167-40057

9 parts on this diagram · 1 diagram in section
