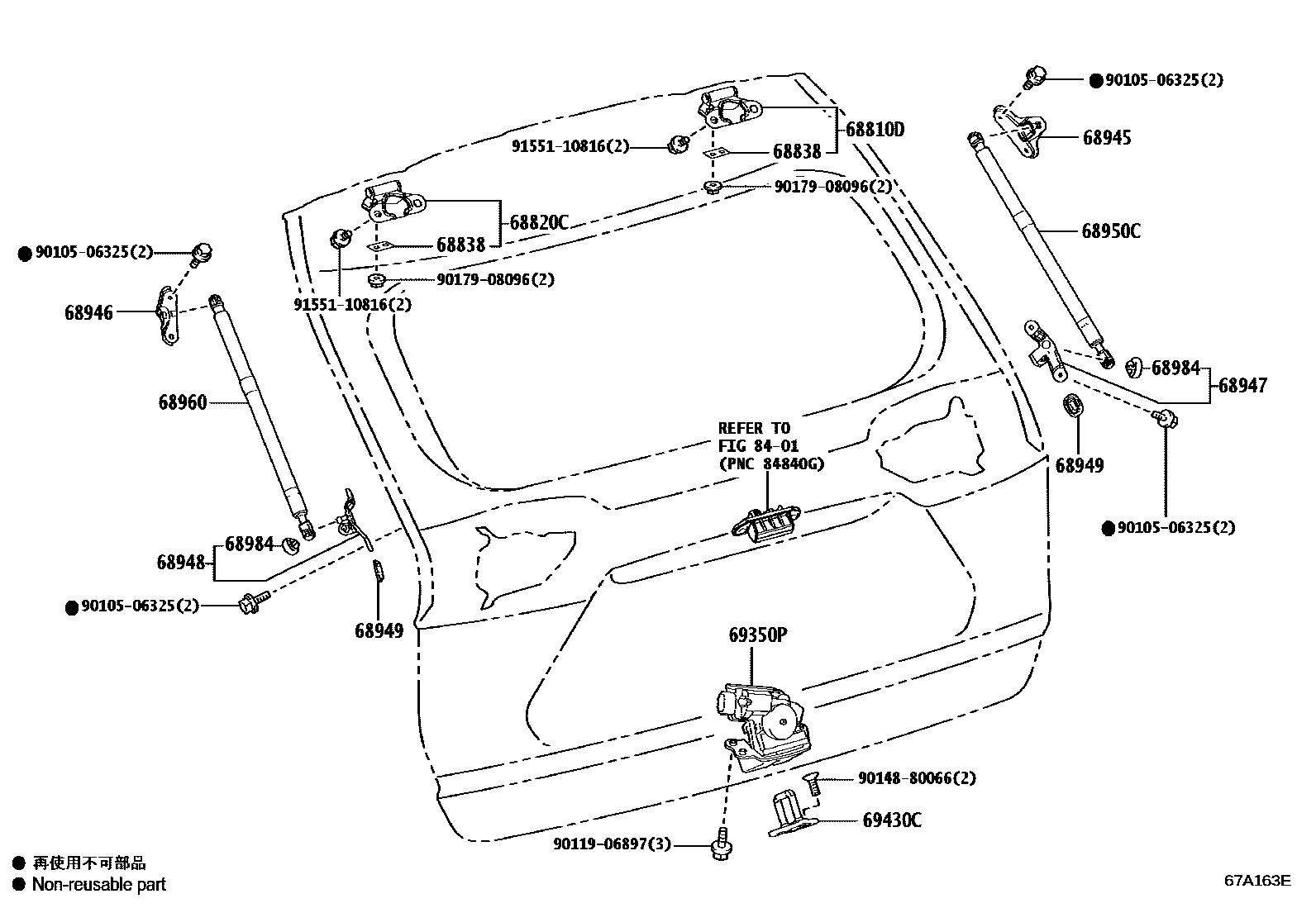

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
T=1.5
T=2.0
T=1.0
T=1.5
T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
main68945-42030supersedes 68945-42050iAXAA5#,AXAH54,AXAL54..G,V; AXAA5#,AXAH54,AXAL54..M201811-202007
POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
main68945-42031iAXAA5#,AXAH54,AXAL54..M,S; AXAH52;AXAA5#,AXAH54,AXAL54..G,P,V; AXAH54..M202206-202210
KOREA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION & *PBD; POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
main68946-42030supersedes 68946-42050iAXAA5#,AXAH54,AXAL54..G,V; AXAA5#,AXAH54,AXAL54..M201811-202007
POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
main68946-42031iAXAA5#,AXAH54,AXAL54..M,S; AXAH52;AXAA5#,AXAH54,AXAL54..G,P,V; AXAH54..M202210-202310
KOREA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION & *PBD; POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
HV EMOTIONAL PACKAGE; XLE PACKAGE
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
HV EMOTIONAL PACKAGE; XLE PACKAGE
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
HV EMOTIONAL PACKAGE; XLE PACKAGE
68949SEAL, BACK DOOR STAY BRACKET
HV EMOTIONAL PACKAGE; XLE PACKAGE
68950CSTAY ASSY, BACK DOOR, RH
XLE PACKAGE
XLE PACKAGE
HV EMOTIONAL PACKAGE
KOREA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION
68960STAY ASSY, BACK DOOR, LH
XLE PACKAGE
KOREA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION
KOREA SPEC&POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION
68984STOPPER, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION & *PBD; POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
main69350-42110iAXAA5#,AXAH54,AXAL54..M,S; AXAH52;AXAA5#,AXAH54,AXAL54..G,P,V; AXAH54..M202206-202208
POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION & *PBD; POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
main69350-42111iAXAA5#,AXAH54,AXAL54..M,S; AXAH52;AXAA5#,AXAH54,AXAL54..G,P,V; AXAH54..M202209-202210
POWER DOOR LOCK-AUTO LOCK(SPEED) & TWO OPERATION & *PBD; POWER DOOR LOCK-TWO OPERATION & POWER BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
9010506325
main90105-06325
9011906897
main90119-06897
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816
19 parts on this diagram · 2 diagrams in section
