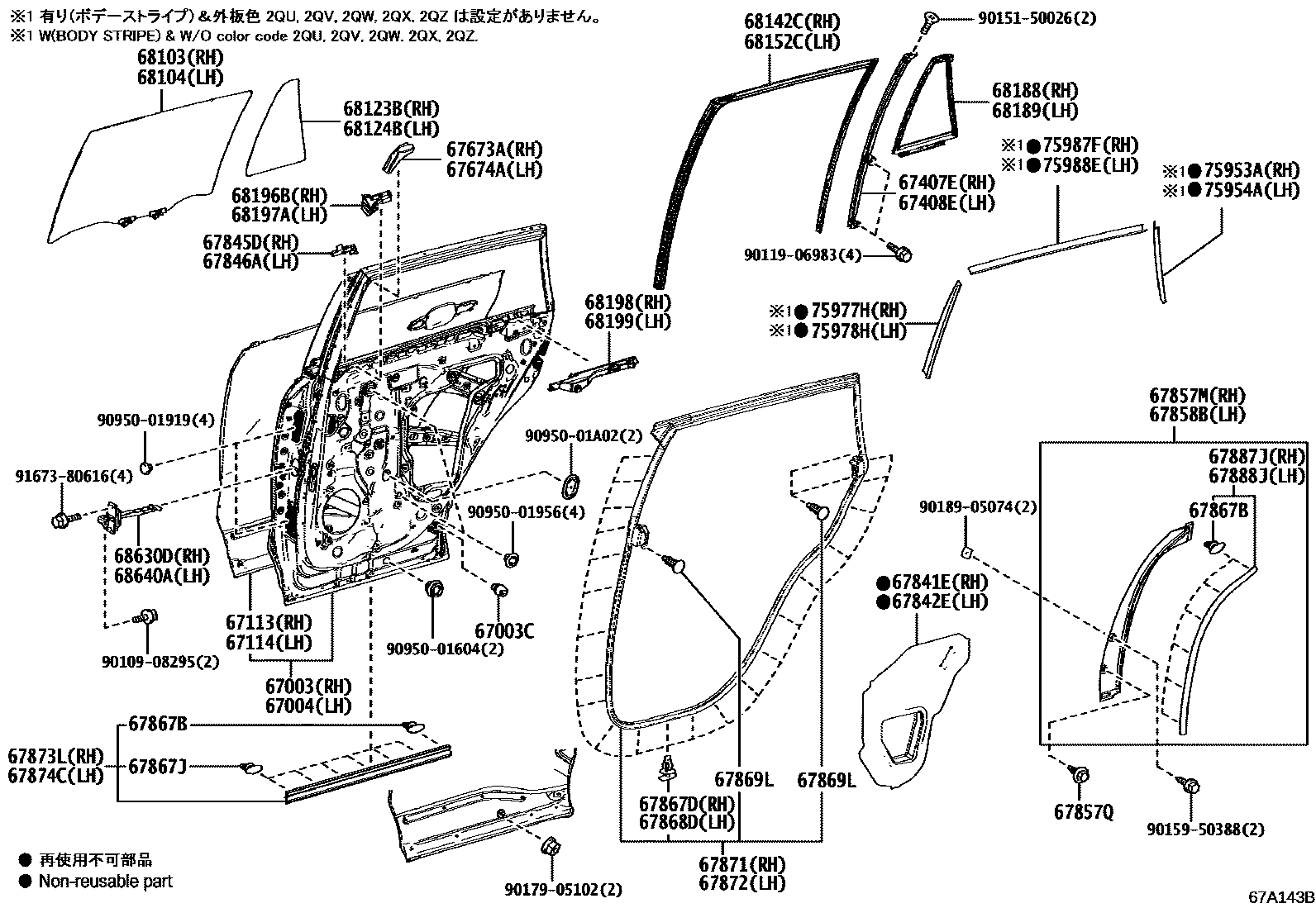

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-42190iAXAA5#,AXAH5#,AXAL54201811-202007

main67003-42191iAXAA5#,AXAH5#,AXAL54202102-202210

main67003-42200iAXAA5#,AXAH5#,AXAL54202101-202102

67003CCUSHION, REAR DOOR PANEL

main90541-09137×2iAXAA5#,AXAH5#,AXAL54202008-202210

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-42190iAXAA5#,AXAH5#,AXAL54201811-202007

main67004-42191iAXAA5#,AXAH5#,AXAL54202102-202210

main67004-42200iAXAA5#,AXAH5#,AXAL54202101-202102

67113PANEL, REAR DOOR, OUTER RH

main67113-42120iAXAA5#,AXAH5#,AXAL54201811-202007

67114PANEL, REAR DOOR, OUTER LH

main67114-42120iAXAA5#,AXAH5#,AXAL54201811-202007

67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-42050iAXAA5#,AXAH5#,AXAL54201811-202007

67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-42050iAXAA5#,AXAH5#,AXAL54201811-202007

67673AGARNISH, REAR DOOR FRAME, RH

main67673-42010iAXAA5#,AXAH5#,AXAL54202008-202210

67674AGARNISH, REAR DOOR FRAME, LH

main67674-42010iAXAA5#,AXAH5#,AXAL54201811-202007

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-42070iAXAA5#,AXAH5#,AXAL54201811-202007

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-42050iAXAA5#,AXAH5#,AXAL54202008-202210

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-42010iAXAA5#,AXAH5#,AXAL54202310

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-42010iAXAA5#,AXAH5#,AXAL54201811-202007

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-42100iAXAA5#,AXAH5#,AXAL54..G,M,X201811-202007

main67857-42110iAXAA54..V202210-202310

67857QCLIP, REAR DOOR PANEL PROTECTOR

main90467-06165-C3×2iAXAA5#,AXAH5#,AXAL54202210-202310

BLACK

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-42030iAXAA5#,AXAH5#,AXAL54..G,M,X201811-202007

main67858-42040iAXAA54..V202008-202210

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main53145-60030×14iAXAA5#,AXAH5#,AXAL54201811-202007

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150×22iAXAA5#,AXAH5#,AXAL54201811-202007

67867JCLIP, DOOR WEATHERSTRIP, RH(FOR REAR DOOR)

main67867-12150×12iAXAA5#,AXAH5#,AXAL54201811-202007

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×22iAXAA5#,AXAH5#,AXAL54201811-202007

67869LCLIP, REAR DOOR WEATHERSTRIP

main67869-26050×6iAXAA5#,AXAH5#,AXAL54201811-202007

67871WEATHERSTRIP, REAR DOOR, RH

main67871-42140iAXAA5#,AXAH5#,AXAL54201811-202007

67872WEATHERSTRIP, REAR DOOR, LH

main67872-42140iAXAA5#,AXAH5#,AXAL54201811-202007

67873LWEATHERSTRIP, REAR DOOR, NO.5 RH

main67873-42030iAXAA5#,AXAH5#,AXAL54202210-202310

67874CWEATHERSTRIP, REAR DOOR, NO.5 LH

main67874-42030iAXAA5#,AXAH5#,AXAL54202008-202210

67887JWEATHERSTRIP, ACCESS PANEL, NO.2 RH

main67887-42010iAXAA5#,AXAH5#,AXAL54202008-202210

67888JWEATHERSTRIP, ACCESS PANEL, NO.2 LH

main67888-42010iAXAA5#,AXAH5#,AXAL54201811-202007

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-42190iAXAH52; AXAH54..G,M202210-202310

KOREA SPEC

main68103-42200iAXAA5#,AXAH54,AXAL54202310

main68103-42250iAXAH52; AXAH54..G,M202008-202210

KOREA SPEC

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-42190iAXAH52; AXAH54..G,M202210-202310

KOREA SPEC

main68104-42200iAXAA5#,AXAH54,AXAL54202008-202210

main68104-42250iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-42190iAXAH52; AXAH54..G,M202210-202310

KOREA SPEC

main68123-42200iAXAA5#,AXAH54,AXAL54202310

main68123-42240iAXAH52; AXAH54..G,M202008-202210

KOREA SPEC

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-42190iAXAH52; AXAH54..G,M202210-202310

KOREA SPEC

main68124-42200iAXAA5#,AXAH54,AXAL54201811-202007

main68124-42240iAXAA52..M;AXAH54..G,M; AXAH52201811-202007

KOREA SPEC

68142CRUN, REAR DOOR GLASS, RH

main68142-42060iAXAA5#,AXAH5#201811-201903

main68142-42061iAXAA5#,AXAH5#,AXAL54202008-202210

68152CRUN, REAR DOOR GLASS, LH

main68152-42060iAXAA5#,AXAH5#201811-201903

main68152-42061iAXAA5#,AXAH5#,AXAL54202310

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-42070iAXAA5#,AXAH5#,AXAL54202310

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-42070iAXAA5#,AXAH5#,AXAL54202008-202210

68196BSEAL, REAR DOOR BELT, FRONT RH

main68196-42010iAXAA5#,AXAH5#,AXAL54201811-202007

68197ASEAL, REAR DOOR BELT, FRONT LH

main68197-42010iAXAA5#,AXAH5#,AXAL54202210-202310

68198SEAL, REAR DOOR BELT, REAR RH

main68198-42010iAXAA5#,AXAH5#,AXAL54201811-202007

68199SEAL, REAR DOOR BELT, REAR LH

main68199-42010iAXAA5#,AXAH5#,AXAL54201811-202007

68630DCHECK ASSY, REAR DOOR, RH

main68630-42050iAXAA5#,AXAH5#,AXAL54202310

68640ACHECK ASSY, REAR DOOR, LH

main68630-42050iAXAA5#,AXAH5#,AXAL54201811-202007

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-42010iAXAH54,AXAL54..P202112-202210

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-42010iAXAH54,AXAL54..P202112-202210

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-42050iAXAH54,AXAL54..P202112-202210

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-42050iAXAH54,AXAL54..P202112-202210

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-42060iAXAH54,AXAL54..P202112-202210

75988ESTRIPE, REAR DOOR, OUTSIDE LH

main75988-42060iAXAH54,AXAL54..P202210-202310

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9015950388

main90159-50388

9017905102

main90179-05102

9018905074

main90189-05074

9095001604

main90950-01604

9095001919

main90950-01919

9095001956

main90950-01956

9095001A02

main90950-01A02

9167380616

main91673-80616

58 parts on this diagram · 2 diagrams in section
