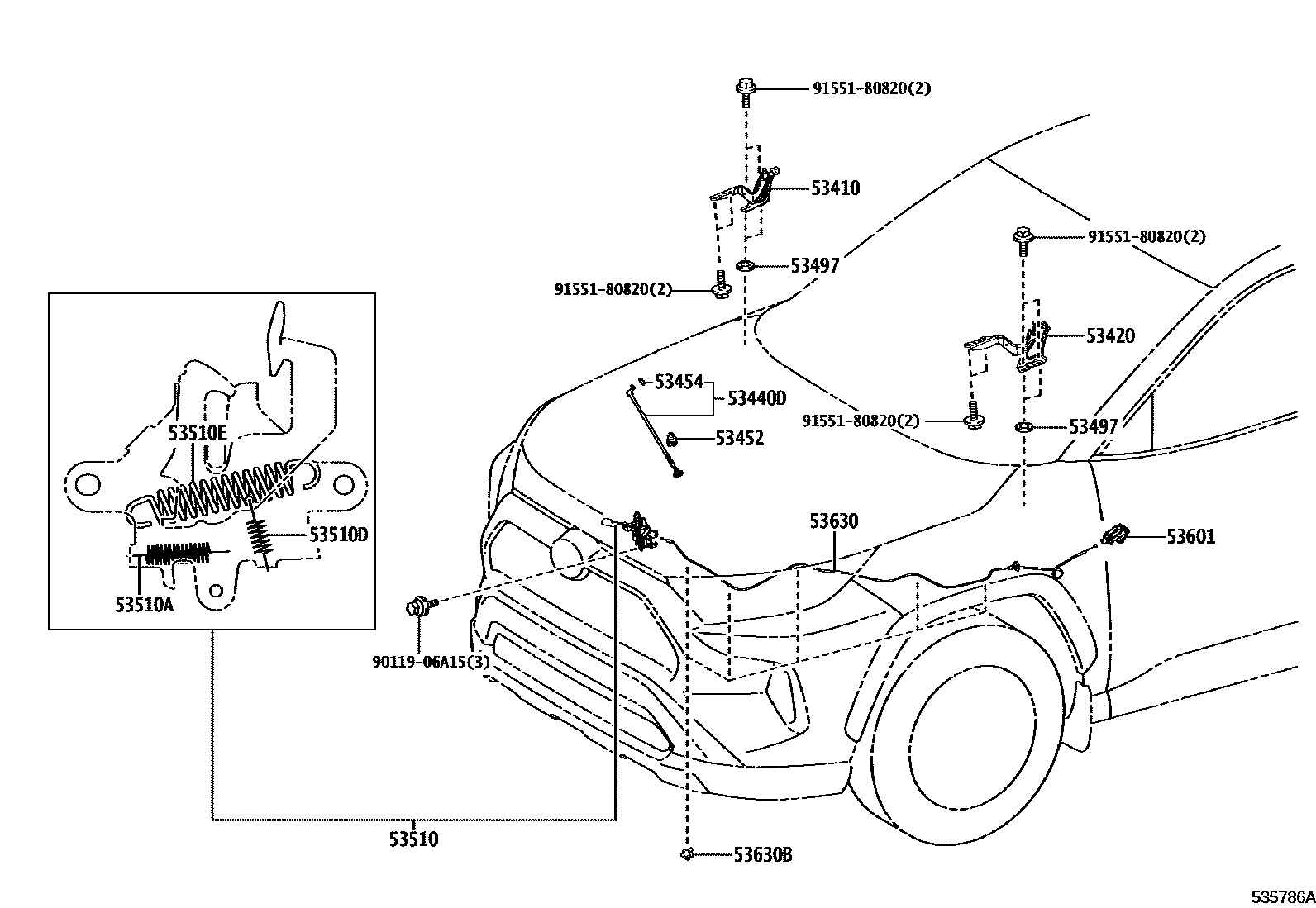

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-42140iAXAA5#,AXAH5#,AXAL54202008-202210

53420HINGE ASSY, HOOD, LH

main53420-42140iAXAA5#,AXAH5#,AXAL54202310

53440DSUPPORT ASSY, HOOD

main53440-42070iAXAA5#,AXAH5#,AXAL54202210-202303

main53440-42071iAXAA5#,AXAH5#,AXAL54202304-202310

53452HOLDER, HOOD STAY

main53452-12130iAXAA5#,AXAH5#,AXAL54202210-202310

53454CLIP, HOOD SUPPORT ROD

main90480-15025iAXAA5#,AXAH5#,AXAL54202008-202210

53497PAD, HOOD HINGE, NO.1

main53497-20070×2iAXAA5#,AXAH5#,AXAL54202008-202210

T=2.0

main53497-42010×2iAXAA5#,AXAH5#,AXAL54202210-202310

T=0.5

53510LOCK ASSY, HOOD

main53510-42120supersedes 53510-42130iAXAA54..V;AXAH5#,AXAL54..M,S,X; AXAH54..G202310

KOREA SPEC&DATA COMMUNICATION MODULE-19MC DCM(KOREA)

main53510-42130supersedes 53510-42120iAXAA52..X;AXAH54,AXAL54..M,X; AXAA54..X;AXAL54..G201811-202007

ANTI-THEFT SYSTEM-IMMOBILIZER & HORN

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXAA5#,AXAH5#,AXAL54201811-202007

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXAA5#,AXAH5#,AXAL54201811-202007

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-14085iAXAA5#,AXAH5#,AXAL54201811-202007

WD=1.4,CW=12

main90506-16077iAXAA5#,AXAH5#,AXAL54202102-202210

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAXAA54..V;AXAL54..X; AXAL54..G,M;AXAA5#,AXAH5#..G,M,X201811-202007

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#,4#

main53601-62010-C0iAXAA5#,AXAH5#,AXAL54..G,M; AXAA5#,AXAH54,AXAL54..V,X; AXAH54,AXAL54..P,S202310

BLACK,TRIM1#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-42140iAXAA5#,AXAH5#,AXAL54201811-202007

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×5iAXAA5#,AXAH5#,AXAL54201811-202007

9011906A15

main90119-06A15

9155180820

main91551-80820

15 parts on this diagram · 1 diagram in section
