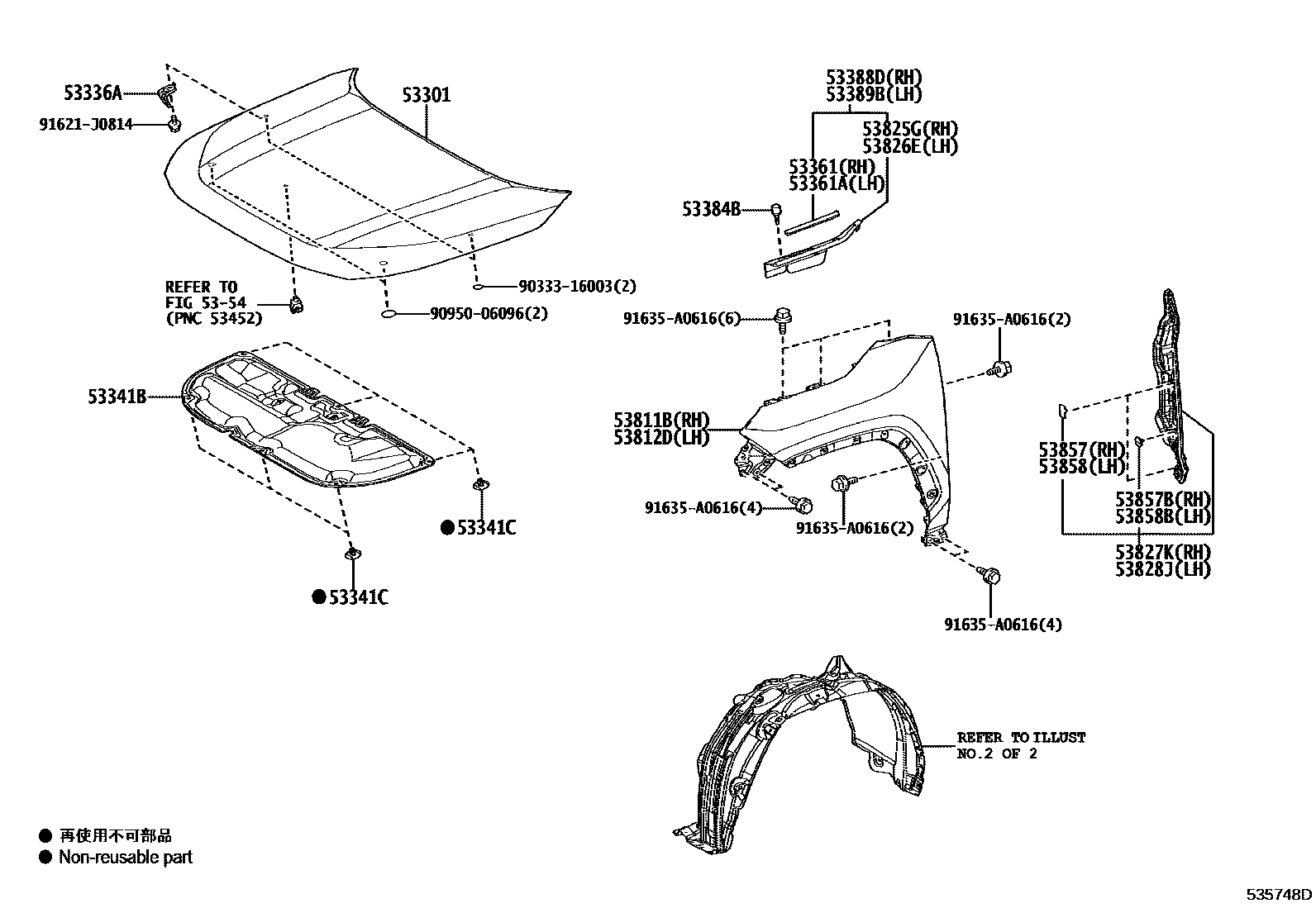

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-42150iAXAA5#,AXAH5#,AXAL54201811-202007

53336ABRACKET, HOOD STAY

main53336-42010iAXAA5#,AXAH5#,AXAL54201811-202007

53341BINSULATOR, HOOD

main53341-42100iAXAH5#,AXAL54201811-202007

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iAXAH5#,AXAL54201811-202007

53361WEATHERSTRIP, HOOD

main53361-42020iAXAA5#,AXAH5#,AXAL54201811-202007

53361AWEATHERSTRIP, HOOD

main53361-42020iAXAA5#,AXAH5#,AXAL54201811-202007

53384BCUSHION, HOOD, CENTER

main53384-22070×2iAXAA5#,AXAH5#,AXAL54201811-202007

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-42040iAXAA5#,AXAH5#,AXAL54201811-202007

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-42060iAXAA5#,AXAH5#,AXAL54201811-202007

5354HOOD LOCK & HINGE

→ Go to FIG 53-54

53811BPANEL, FRONT FENDER, RH

main53811-42330iAXAA5#,AXAH5#,AXAL54201811-202007

53812DPANEL, FRONT FENDER, LH

main53812-42360iAXAA5#,AXAH5#,AXAL54201811-202007

53825GPROTECTOR, FRONT FENDER, UPPER RH

main53825-42050iAXAA5#,AXAH5#,AXAL54201811-202007

53826EPROTECTOR, FRONT FENDER, UPPER LH

main53826-42030iAXAA5#,AXAH5#,AXAL54201811-202007

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-42060iAXAA5#,AXAH5#,AXAL54201811-202007

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-42080iAXAA5#,AXAH5#,AXAL54201811-202007

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iAXAA5#,AXAH5#,AXAL54201811-202007

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iAXAA5#,AXAH5#,AXAL54201811-202007

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iAXAA5#,AXAH5#,AXAL54201811-202007

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iAXAA5#,AXAH5#,AXAL54201811-202007

9033316003

main90333-16003

9095006096

main90950-06096

91621J0814

main91621-J0814

91635A0616

main91635-A0616

24 parts on this diagram · 2 diagrams in section
