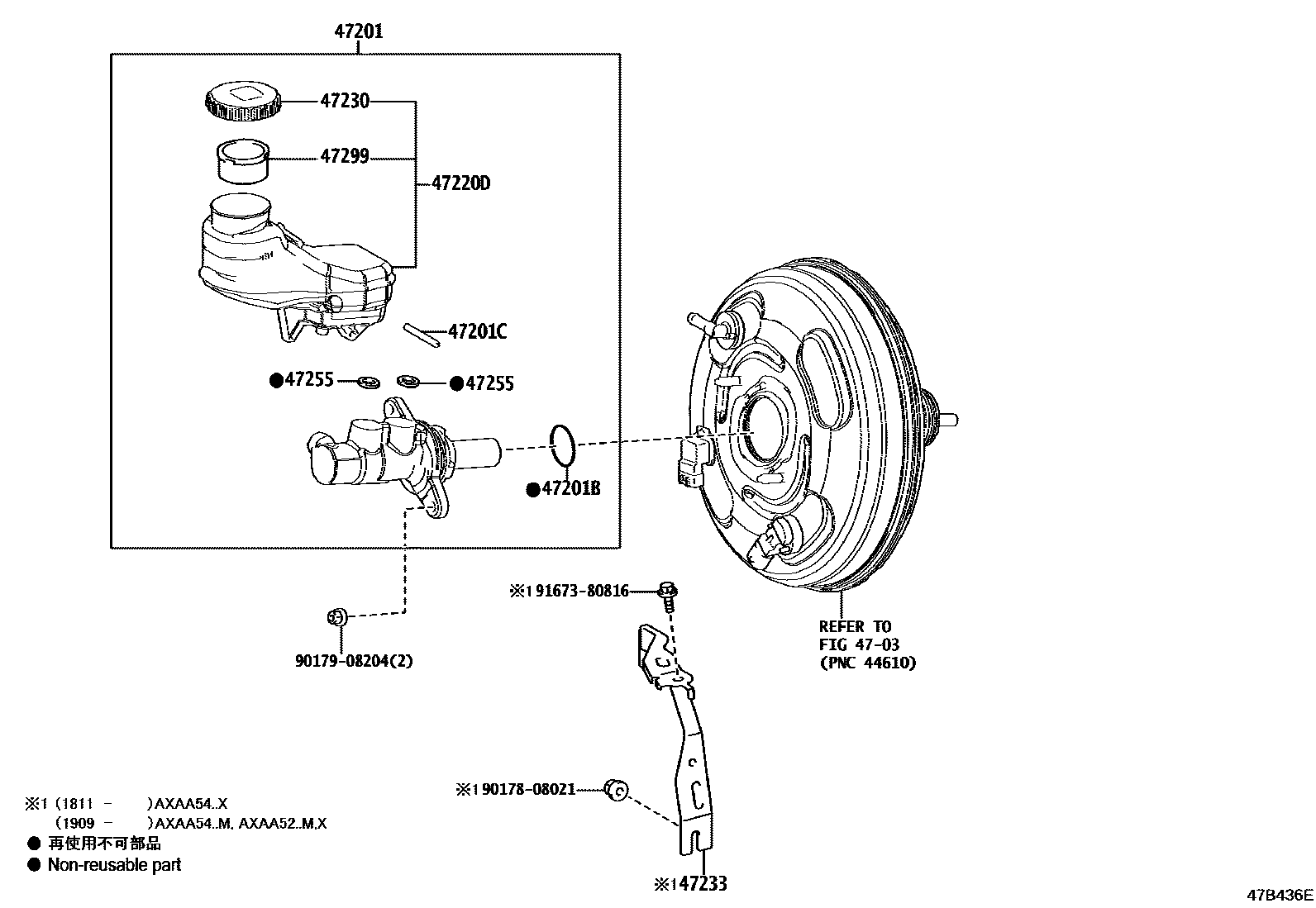

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-42440iAXAA5#201811-202007

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAXAA5#202210-202310

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAXAA5#202008-202210

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-42140iAXAH5#,AXAL54202008-202112

main47220-42170iAXAA5#202310

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iAXAH5#,AXAL54..G,M,X202112-202210

47233BRACKET, RESERVOIR

main47233-42040iAXAH5#,AXAL54202008-202112

main47233-42050iAXAA5#..M; AXAA52..M201909-202007

KOREA SPEC

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001×2iAXAA5#201811-202007

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAXAA5#201811-202007

9017808021

main90178-08021

9017908204

main90179-08204

9167380816

main91673-80816

12 parts on this diagram · 3 diagrams in section
