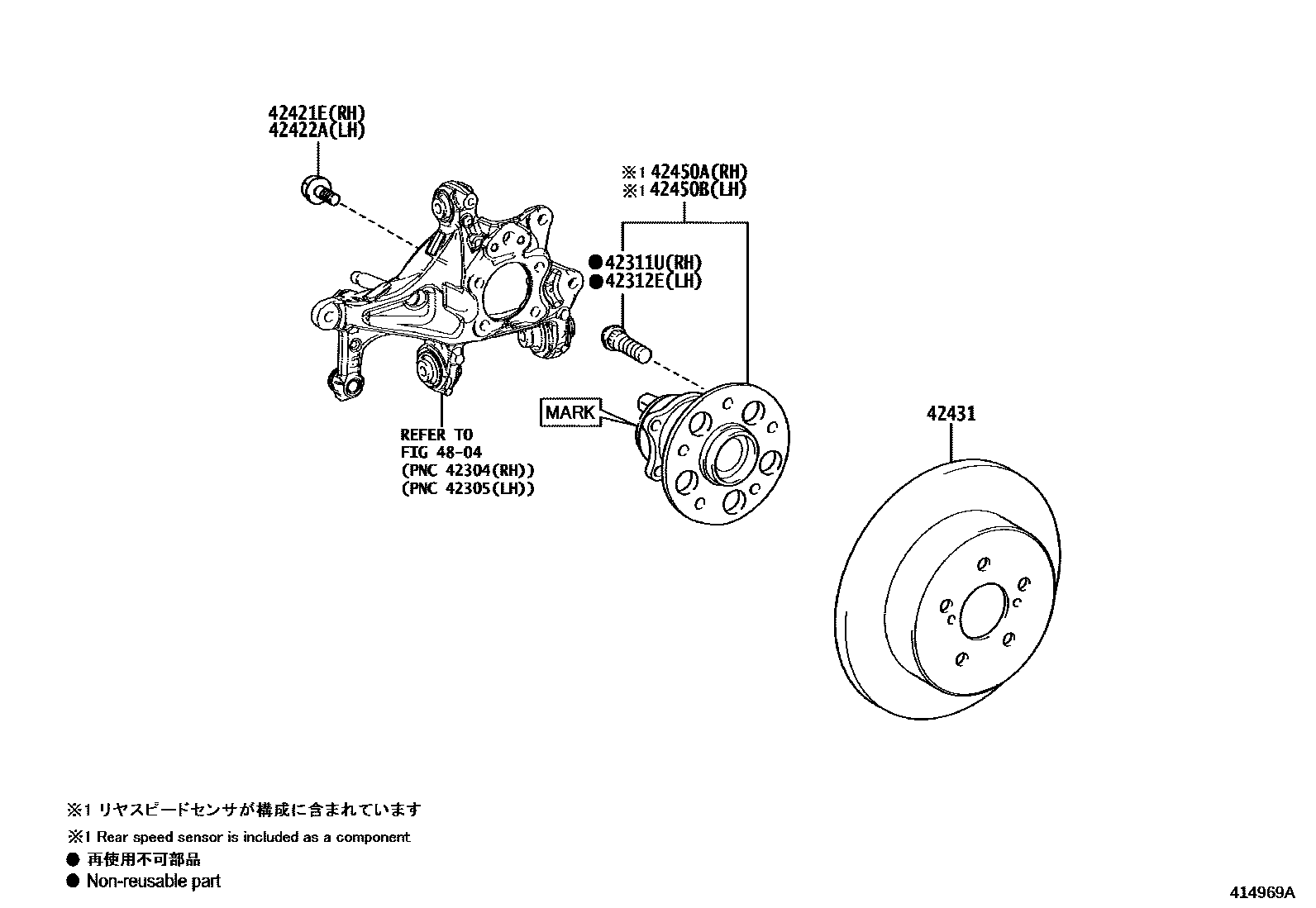

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAXAA5#,AXAH5#,AXAL54201811-202007

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAXAA5#,AXAH5#,AXAL54202008-202210

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12406×4iAXAA5#,AXAH5#,AXAL54201811-202007

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12406×4iAXAA5#,AXAH5#,AXAL54201811-202007

42431DISC, REAR

main42431-78010×2iAXAA5#,AXAH5#,AXAL54201811-202007

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42060iAXAA54,AXAH54,AXAL54202210-202309

main42410-47050iAXAA54,AXAH54,AXAL54202310

main42450-33080iAXAA52,AXAH52201811-202002

MARK=89544-33020

main42450-42060iAXAA52,AXAH52201811-202007

MARK=89544-12030

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42060iAXAA54,AXAH54,AXAL54201811-202007

main42410-47050iAXAA54,AXAH54,AXAL54202310

main42450-33080iAXAA52,AXAH52201811-202002

MARK=89544-33020

main42450-42060iAXAA52,AXAH52202008-202210

7 parts on this diagram · 3 diagrams in section
