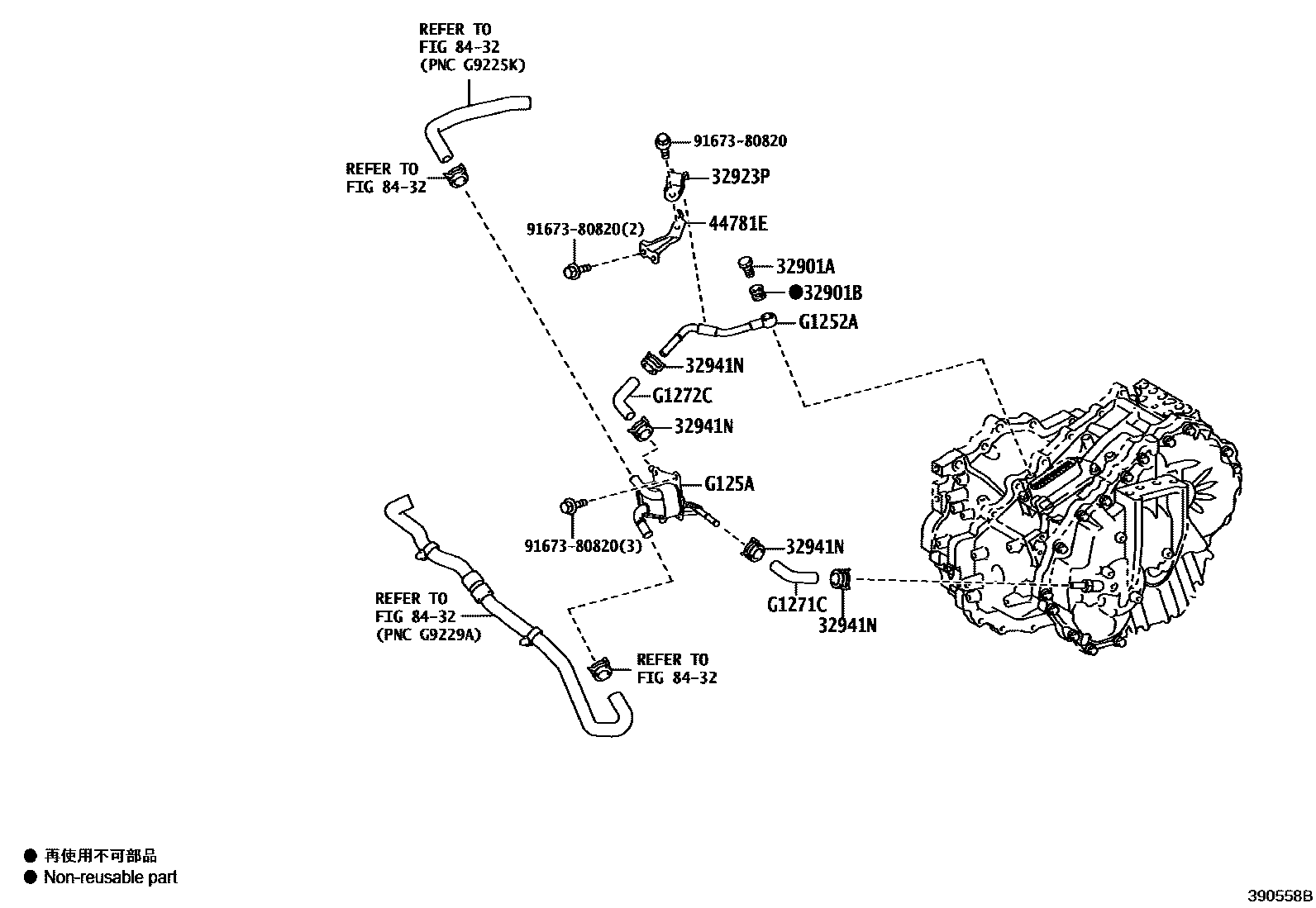

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iAXAH5#,AXAL54201811-202007

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iAXAH5#,AXAL54201811-202007

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iAXAH5#,AXAL54201811-202007

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004×4iAXAH5#,AXAL54201811-202007

44781EBRACKET, HOSE

main44781-33020iAXAH5#,AXAL54201811-202007

8432INVERTER COOLING

→ Go to FIG 84-32

G1252APIPE, MOTOR COOLING, NO.2

mainG125233010iAXAH5#,AXAL54201811-202007

G125ACOOLER, MOTOR COOLING

mainG125A42010iAXAH5#,AXAL54201811-202007

G1271CHOSE, MOTOR COOLING, NO.1

mainG127133010iAXAH5#,AXAL54201811-202007

G1272CHOSE, MOTOR COOLING, NO.2

mainG127233010iAXAH5#,AXAL54201811-202007

9167380820

main91673-80820

11 parts on this diagram · 1 diagram in section
