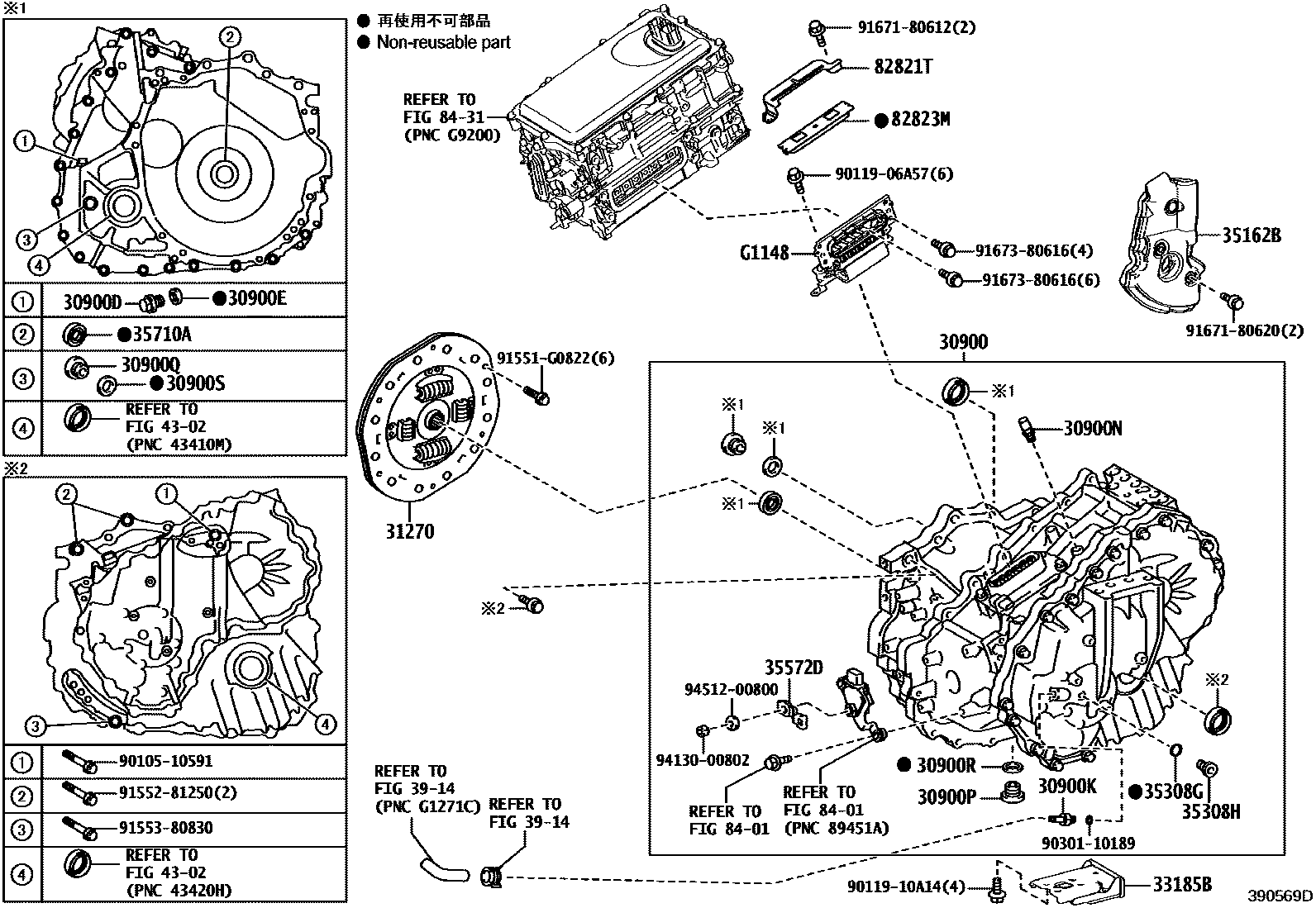

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900NPLUG, BREATHER(FOR TRANSAXLE)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
33185BBRACKET, TRANSAXLE UNDER STOPPER
35162BPROTECTOR, TRANSAXLE CASE
KOREA SPEC
35308GRING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER)
35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)
35572DLEVER, TRANSMISSION CONTROL SHAFT
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)
4302FRONT DRIVE SHAFT
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8401SWITCH & RELAY & COMPUTER
8431HEV INVERTER
G1148CABLE, MOTOR
9010510591
main90105-10591
9011906A57
main90119-06A57
9011910A14
main90119-10A14
9030110189
main90301-10189
91551G0822
main91551-G0822
9155281250
main91552-81250
9155380830
main91553-80830
9167180612
main91671-80612
9167180620
main91671-80620
9167380616
main91673-80616
9413000802
main94130-00802
9451200800
main94512-00800
35 parts on this diagram · 2 diagrams in section
