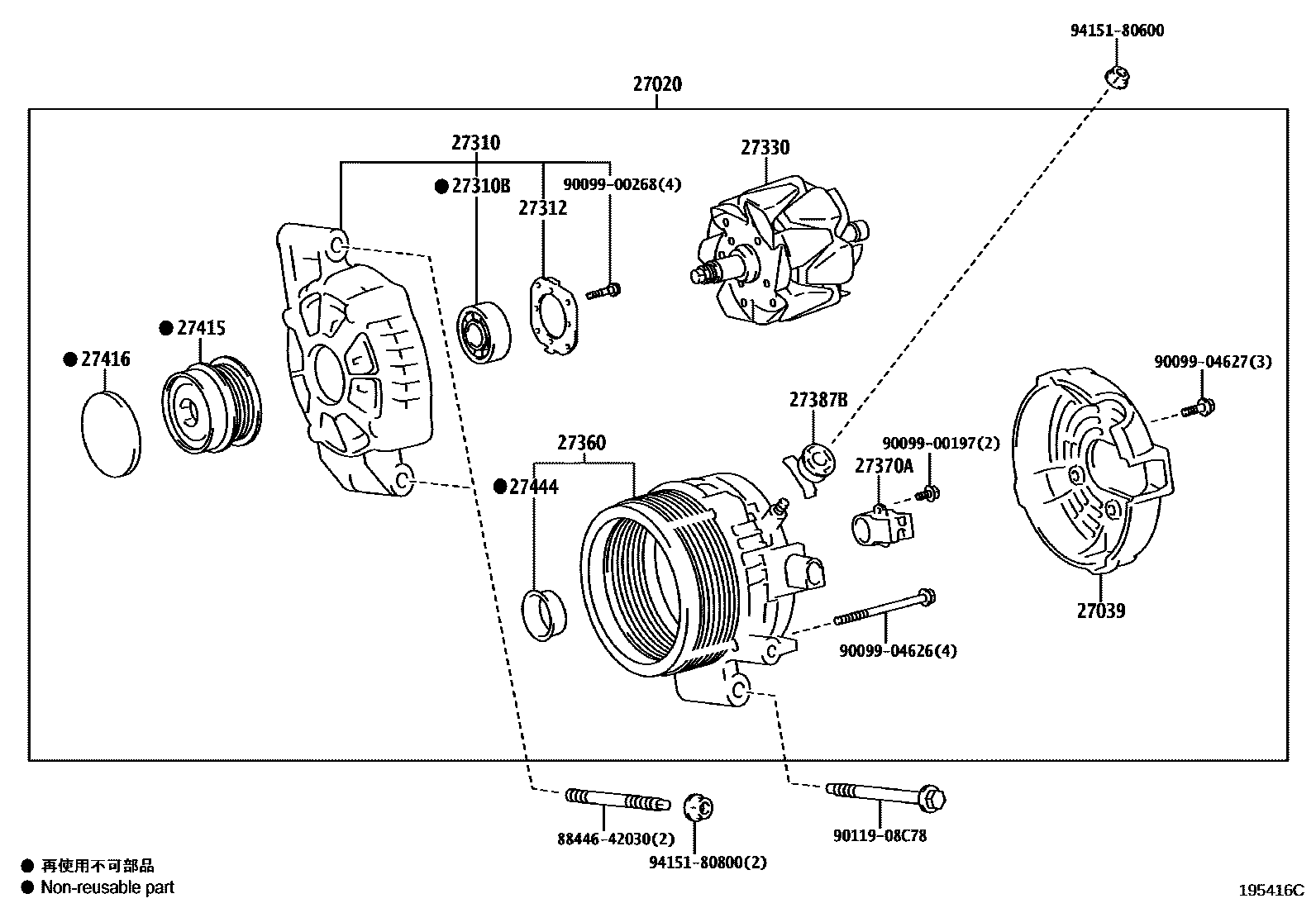

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
main27060-25030supersedes 27060-25010iA25AFKS..AXAA5#..G; A25AFKS..AXAA5#..G,V; A25AFKS..AXAA54..V; A25AFKS..AXAA54..X201811-202007
12V 130A; 12V 130A,*COS,W(STEERING HEATER&REAR SEAT HEATER); 12V 130A,ACCESSORY CONNECTOR-WITH(100W,120V); 12V 130A,COLD AREA SPEC,WITH(STEERING HEATER)
12V 150A; 12V 150A,COLD AREA SPEC,WITH(STEERING HEATER)
12V 150A,COLD AREA SPEC,WITH(STEERING HEATER)&ACCESSORY CONNECTOR-WITH(100W,120V)
27039COVER, ALTERNATOR REAR END
COLD AREA SPEC,WITH(STEERING HEATER)
27310FRAME ASSY, DRIVE END, ALTERNATOR
COLD AREA SPEC,WITH(STEERING HEATER)
COLD AREA SPEC,WITH(STEERING HEATER)&ACCESSORY CONNECTOR-WITH(100W,120V)
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
COLD AREA SPEC,WITH(STEERING HEATER)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
COLD AREA SPEC,WITH(STEERING HEATER)
main27330-37220supersedes 27330-47330iA25AFKS..AXAA5#..G; A25AFKS..AXAA5#..G,V; A25AFKS..AXAA54..V; A25AFKS..AXAA54..X201811-202007
*COS,W(STEERING HEATER&REAR SEAT HEATER); ACCESSORY CONNECTOR-WITH(100W,120V); COLD AREA SPEC,WITH(STEERING HEATER)
COLD AREA SPEC,WITH(STEERING HEATER)&ACCESSORY CONNECTOR-WITH(100W,120V)
27360COIL ASSY, ALTERNATOR
main27360-24130supersedes 27360-24150iA25AFKS..AXAA5#..G; A25AFKS..AXAA5#..G,V; A25AFKS..AXAA54..V; A25AFKS..AXAA54..X201811-202007
*COS,W(STEERING HEATER&REAR SEAT HEATER); ACCESSORY CONNECTOR-WITH(100W,120V); COLD AREA SPEC,WITH(STEERING HEATER)
COLD AREA SPEC,WITH(STEERING HEATER)&ACCESSORY CONNECTOR-WITH(100W,120V)
COLD AREA SPEC,WITH(STEERING HEATER)&ACCESSORY CONNECTOR-WITH(100W,120V)
27370AHOLDER ASSY, ALTERNATOR BRUSH
COLD AREA SPEC,WITH(STEERING HEATER)
27387BINSULATOR, ALTERNATOR TERMINAL
COLD AREA SPEC,WITH(STEERING HEATER)
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
27444PACKING, ALTERNATOR BEARING COVER
8844642030BOLT, IDLE PULLEY
main88446-42030
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904627
main90099-04627
9011908C78
main90119-08C78
9415180600
main94151-80600
9415180800
main94151-80800
20 parts on this diagram · 2 diagrams in section
