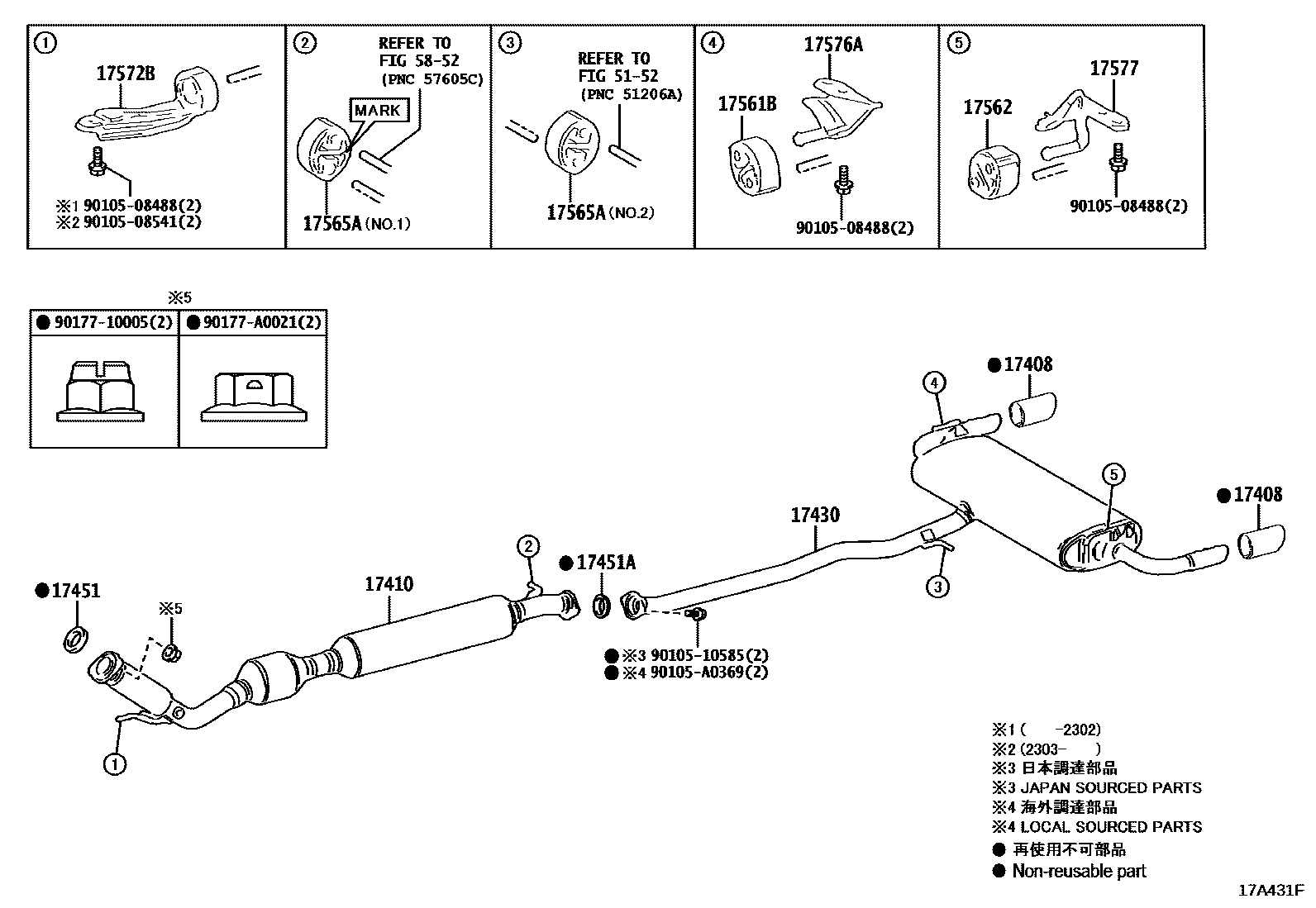

EXHAUST PIPE
17408BAFFLE SUB ASSY, EXHAUST TAILPIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/PB3/Y
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
(J)
(L)
17451AGASKET, EXHAUST PIPE, NO.2
(L)
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17565ASUPPORT, EXHAUST PIPE, NO.4
NO.1
NO.2
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
5152SUSPENSION CROSSMEMBER & UNDER COVER
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
9010508488
main90105-08488
9010508541
main90105-08541
9010510585
main90105-10585
90105A0369
main90105-A0369
9017710005
main90177-10005
90177A0021
main90177-A0021
19 parts on this diagram · 2 diagrams in section
