ENGINE OIL PUMP

1301CRANKSHAFT & PISTON

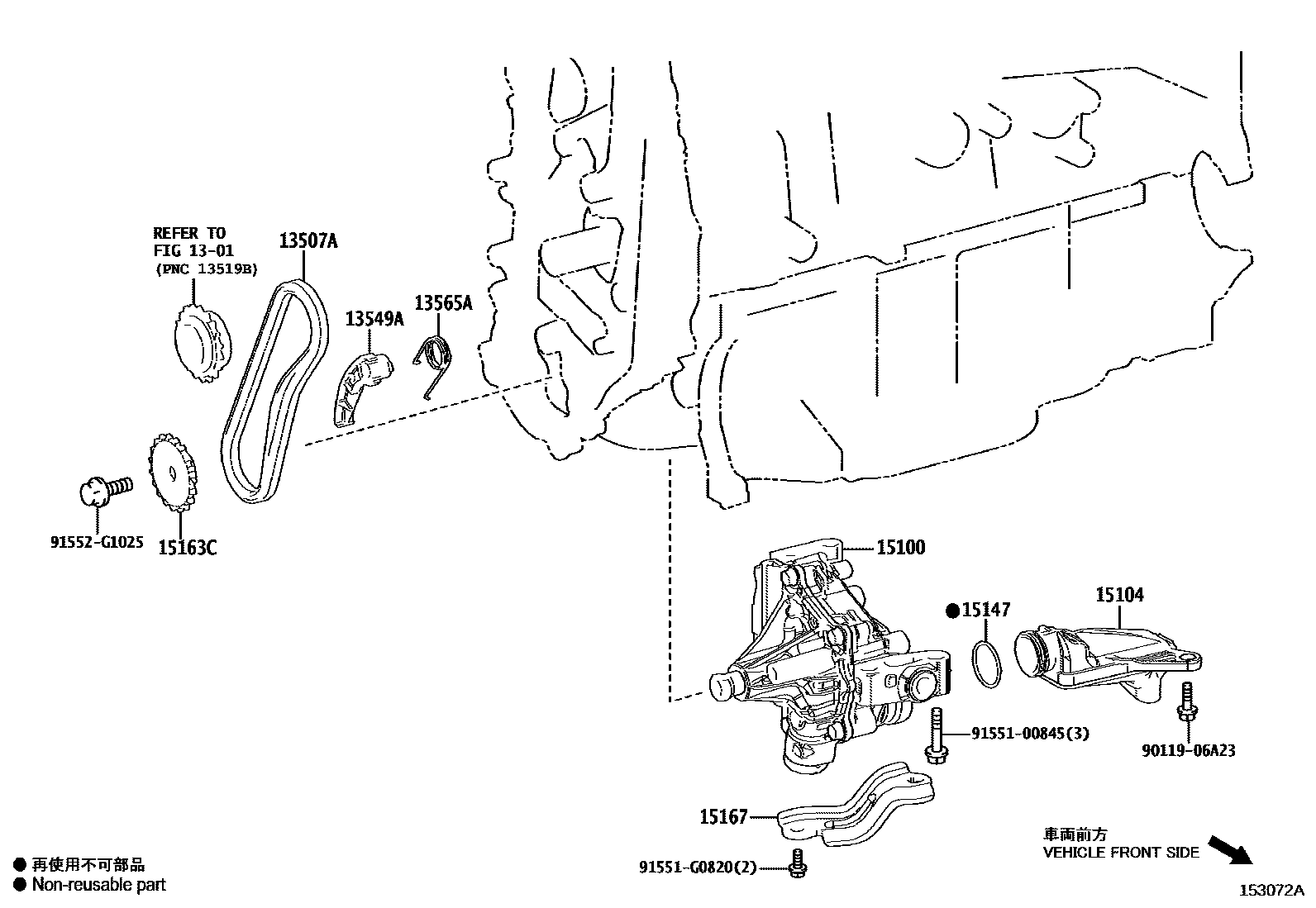

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

13549APLATE, CHAIN TENSIONER

main13549-25020iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

13565ASPRING, CHAIN DAMPER

main13565-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

15100PUMP ASSY, OIL

main15100-25032iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

15104STRAINER SUB-ASSY, OIL

main15104-25030iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

15147GASKET, OIL STRAINER

main15147-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25010iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

15167BRACKET, OIL PUMP

main15167-25011iA25#..AXAA5#,AXAH5#,AXAL54201811-202007

9011906A23

main90119-06A23

9155100845

main91551-00845

91551G0820

main91551-G0820

91552G1025

main91552-G1025

13 parts on this diagram · 1 diagram in section
