HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1AIR DUCT 0003 1SENSOR

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

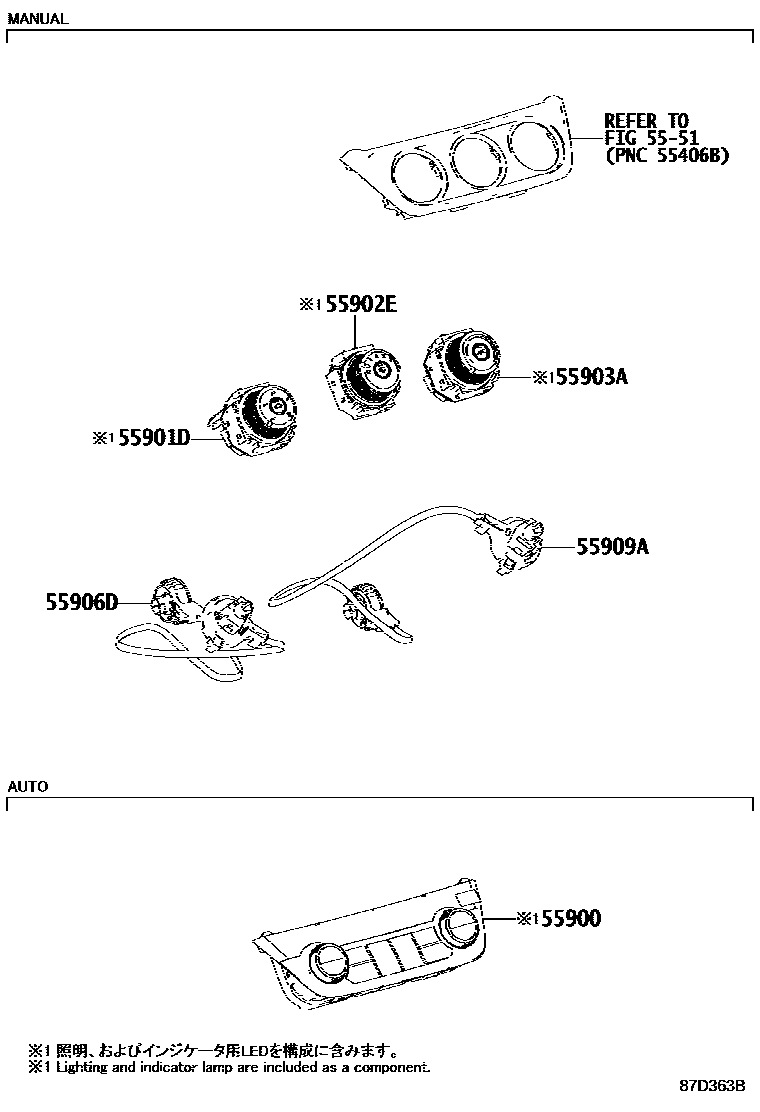

55900CONTROL ASSY, AIR CONDITIONER

main55900-42370iASA4#..LIMD,XLE201212-201510

main55900-42420iASA4#,AVA44..LIMD,SE,XLE201510-201810

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-42030iASA4#..LE201212-201510

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-42150iASA4#..LE201212-201510

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-42080iASA4#..LE201212-201510

55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2

main55906-26060iASA4#..LE201212-201510

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-26080iASA4#..LE201212-201510

7 parts on this diagram · 3 diagrams in section
