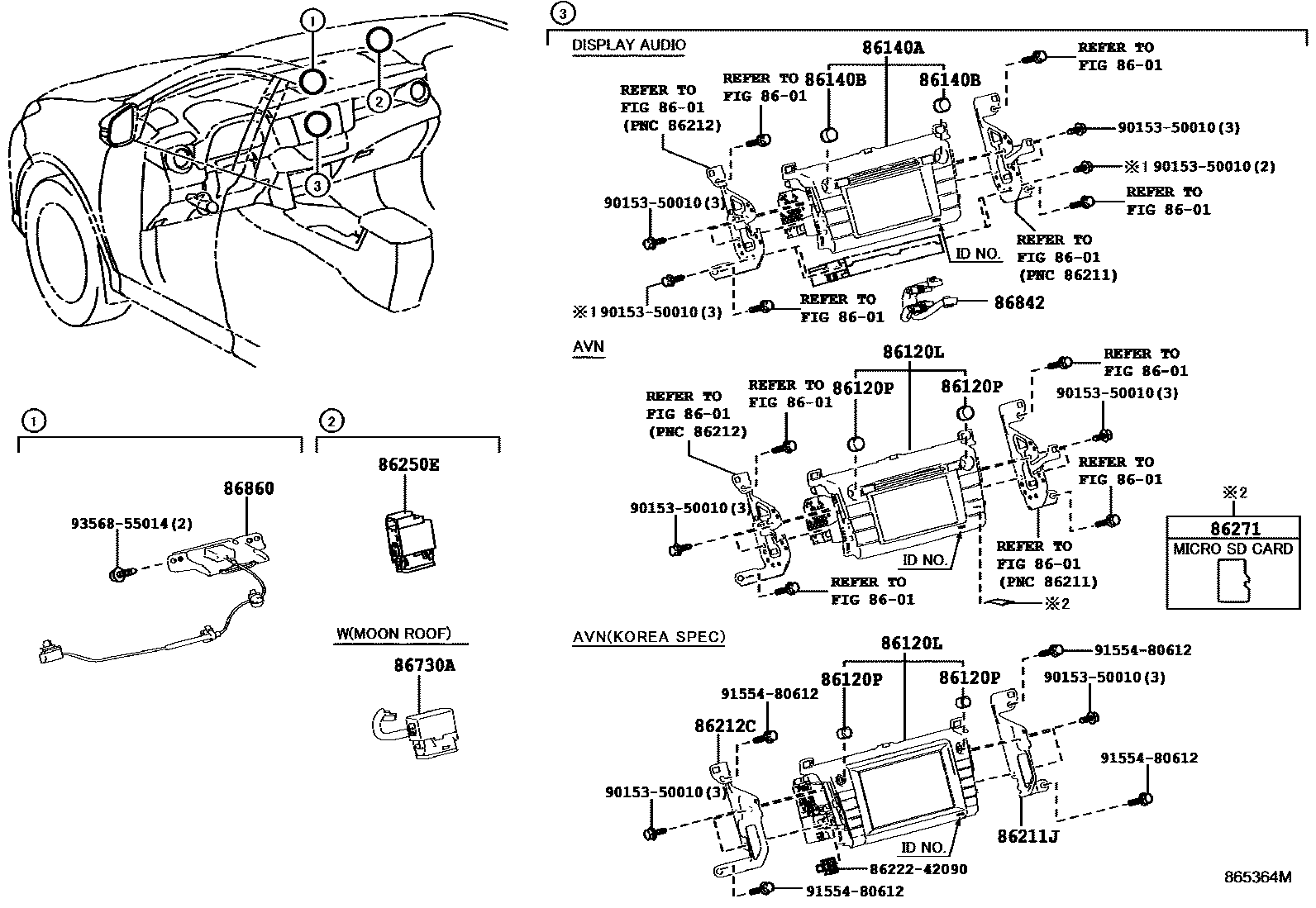

NAVIGATION & FRONT MONITOR DISPLAY
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
86120LRECEIVER ASSY, NAVIGATION
DENSO,ID=E8048,KOREA SPEC&AUDIO-AVN(CD&DVD&USB&*BT)&6SPEAKER
AISIN AW,ID100459,AUDIO-13MM AVN & ENTUNE
FUJITSU TEN,ID100575,AUDIO-6SPEAKER 7INCH AVN NA; FUJITSU TEN,ID100575,AUDIO-6SPEAKER 7INCH AVN XM NA
DENSO TEN,ID100868,AUDIO-6SPEAKER 7INCH AVN NA; DENSO TEN,ID100868,AUDIO-6SPEAKER 7INCH AVN XM NA
FUJITSU TEN,ID100576,AUDIO-JBL 7INCH AVN NA
DENSO TEN,ID100869,AUDIO-JBL 7INCH AVN NA; DENSO TEN,ID100869,AUDIO-JBL 7INCH AVN XM NA
86120PKNOB, NAVIGATION RECEIVER SWITCH
AUDIO-13MM AVN & ENTUNE
main90010-23050×2iASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE; ASA4#..LIMD,SE;AVA44..LIMD..USA201510-201810
AUDIO-6SPEAKER 7INCH AVN NA; AUDIO-6SPEAKER 7INCH AVN XM NA; AUDIO-JBL 7INCH AVN NA; AUDIO-JBL 7INCH AVN XM NA
KOREA SPEC&AUDIO-AVN(CD&DVD&USB&*BT)&6SPEAKER
AUDIO-13MM AVN & ENTUNE
86140ARECEIVER ASSY, RADIO & DISPLAY
FUJITSU TEN,ID100067; FUJITSU TEN,ID100067,AUDIO-*DA&USB&*BT&6SPEAKER
FUJITSU TEN,ID100068,AUDIO-*DX*DA&XM TUNER&USB&*BT&6SPEAKER
main86140-42110iASA4#,AVA44; ASA4#,AVA44..(LIMD,SE)..USA; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE; ASA4#,AVA44..LIMD..USA; ASA4#..LIMD,SE,XLE;AVA44..(LIMD,XLE)..USA; AVA44..LIMD..CND; AVA44..LIMD..USA201510-201809
FUJITSU TEN,ID100573; FUJITSU TEN,ID100573,AUDIO-6SPEAKER 7INCH AVN NA; FUJITSU TEN,ID100573,AUDIO-6SPEAKER 7INCH AVN XM NA; FUJITSU TEN,ID100573,AUDIO-6SPEAKER 7INCH AVN+ENTUNE; FUJITSU TEN,ID100573,AUDIO-JBL 7INCH AVN; FUJITSU TEN,ID100573,AUDIO-JBL 7INCH AVN NA; FUJITSU TEN,ID100573,AUDIO-JBL 7INCH AVN XM NA; FUJITSU TEN,ID100573,AUDIO-JBL 7INCH AVN+ENTUNE; FUJITSU TEN,ID100573,PUERTO RICO SPEC&AUDIO-JBL 7INCH AVN
main86140-42111iASA4#,AVA44; ASA4#,AVA44..(LIMD,SE)..USA; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE; ASA4#,AVA44..LIMD..USA; ASA4#..LIMD,SE,XLE;AVA44..(LIMD,XLE)..USA; AVA44..LIMD..CND; AVA44..LIMD..USA201809-201810
DENSO TEN,ID100874; DENSO TEN,ID100874,AUDIO-6SPEAKER 7INCH AVN NA; DENSO TEN,ID100874,AUDIO-6SPEAKER 7INCH AVN XM NA; DENSO TEN,ID100874,AUDIO-6SPEAKER 7INCH AVN+ENTUNE; DENSO TEN,ID100874,AUDIO-JBL 7INCH AVN; DENSO TEN,ID100874,AUDIO-JBL 7INCH AVN NA; DENSO TEN,ID100874,AUDIO-JBL 7INCH AVN XM NA; DENSO TEN,ID100874,AUDIO-JBL 7INCH AVN+ENTUNE; DENSO TEN,ID100874,PUERTO RICO SPEC&AUDIO-JBL 7INCH AVN
FUJITSU TEN,ID100325,AUDIO-13MM *DA(*DLX) & ENTUNE; FUJITSU TEN,ID100325,AUDIO-13MM *DA(*DLX) W(CD&USB&*BT&XM TUNER); FUJITSU TEN,ID100325,GUAM,SAIPAN,A.SAMOA,HAWAII SPEC&AUDIO-13MM *DA(*DLX) W(CD&USB&*BT&XM TUNER)
FUJITSU TEN,ID100483,KOREA SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT)
FUJITSU TEN,ID100577,KOREA SPEC&AUDIO-6SPEAKER DLX-DA KOREA
FUJITSU TEN,ID100574,AUDIO-6SPEAKER DLX-DA NA; FUJITSU TEN,ID100574,AUDIO-6SPEAKER DLX-DA XM NA
DENSO TEN,ID100878,AUDIO-6SPEAKER DLX-DA NA; DENSO TEN,ID100878,AUDIO-6SPEAKER DLX-DA XM NA
86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH
main90010-23050×2iASA4#,AVA44; ASA4#,AVA44..(LIMD,SE)..USA; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE; ASA4#,AVA44..LIMD..USA; ASA4#..LIMD,SE,XLE;AVA44..(LIMD,XLE)..USA; AVA44..LIMD..CND; AVA44..LIMD..USA201510-201810
AUDIO-6SPEAKER 7INCH AVN NA; AUDIO-6SPEAKER 7INCH AVN XM NA; AUDIO-6SPEAKER 7INCH AVN+ENTUNE; AUDIO-JBL 7INCH AVN; AUDIO-JBL 7INCH AVN NA; AUDIO-JBL 7INCH AVN XM NA; AUDIO-JBL 7INCH AVN+ENTUNE; PUERTO RICO SPEC&AUDIO-JBL 7INCH AVN
86211JBRACKET, RADIO RECEIVER, NO.1
AUDIO-AVN(CD&DVD&USB&*BT)&6SPEAKER
86212CBRACKET, RADIO RECEIVER, NO.2
AUDIO-AVN(CD&DVD&USB&*BT)&6SPEAKER
86250EMICROPHONE ASSY, AMPLIFIER
MOON ROOF-WITHOUT
86271DISC, DISC PLAYER
AUDIO-13MM AVN & ENTUNE,MICRO SD CARD
AUDIO-13MM AVN & ENTUNE,MICRO SD CARD
AUDIO-13MM AVN & ENTUNE,MICRO SD CARD
main86271-35013iASA4#,AVA44..(LIMD,SE)..USA; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE201510-201607
AUDIO-6SPEAKER 7INCH AVN NA,MICRO SD CARD; AUDIO-6SPEAKER 7INCH AVN XM NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN XM NA,MICRO SD CARD
main86271-35014iASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE; ASA4#..LIMD,SE;AVA44..LIMD..USA201607-201708
AUDIO-6SPEAKER 7INCH AVN NA,MICRO SD CARD; AUDIO-6SPEAKER 7INCH AVN XM NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN XM NA,MICRO SD CARD
main86271-35015iASA4#,AVA44..(LIMD,SE)..USA; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE201708-201807
AUDIO-6SPEAKER 7INCH AVN NA,MICRO SD CARD; AUDIO-6SPEAKER 7INCH AVN XM NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN XM NA,MICRO SD CARD
main86271-35021iASA4#,AVA44..(LIMD,SE)..USA; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE201808-201810
AUDIO-6SPEAKER 7INCH AVN NA,MICRO SD CARD; AUDIO-6SPEAKER 7INCH AVN XM NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN NA,MICRO SD CARD; AUDIO-JBL 7INCH AVN XM NA,MICRO SD CARD
86730AMICROPHONE ASSY, TELEPHONE
86842WIRE, NAVIGATION, NO.1
KOREA SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT)&EMV & NAVIGATION SYSTEM-WITH
86860ANTENNA ASSY, NAVIGATION
AUDIO-13MM *DA(*DLX) & ENTUNE; AUDIO-13MM *DA(*DLX) W(CD&USB&*BT&XM TUNER); AUDIO-13MM AVN & ENTUNE; KOREA SPEC&AUDIO-13MM *DA(*DLX) W(CD & USB & *BT)
main86860-42042iASA4#,AVA44; ASA4#,AVA44..(LIMD,SE,XLE)..USA; ASA4#,AVA44..LIMD,SE; ASA4#,AVA44..LIMD,SE,XLE; ASA4#,AVA44..LIMD..USA; ASA4#,AVA44..USA; ASA4#..LIMD,SE;AVA44..LIMD..USA201510-201810
AUDIO-6SPEAKER 7INCH AVN NA; AUDIO-6SPEAKER 7INCH AVN XM NA; AUDIO-6SPEAKER DLX-DA KOREA; AUDIO-6SPEAKER DLX-DA NA; AUDIO-6SPEAKER DLX-DA XM NA; AUDIO-JBL 7INCH AVN NA; AUDIO-JBL 7INCH AVN XM NA
8622242090FINISH, TAPE PLAYER
main86222-42090
9015350010
main90153-50010
9155480612
main91554-80612
9356855014
main93568-55014
16 parts on this diagram · 2 diagrams in section
