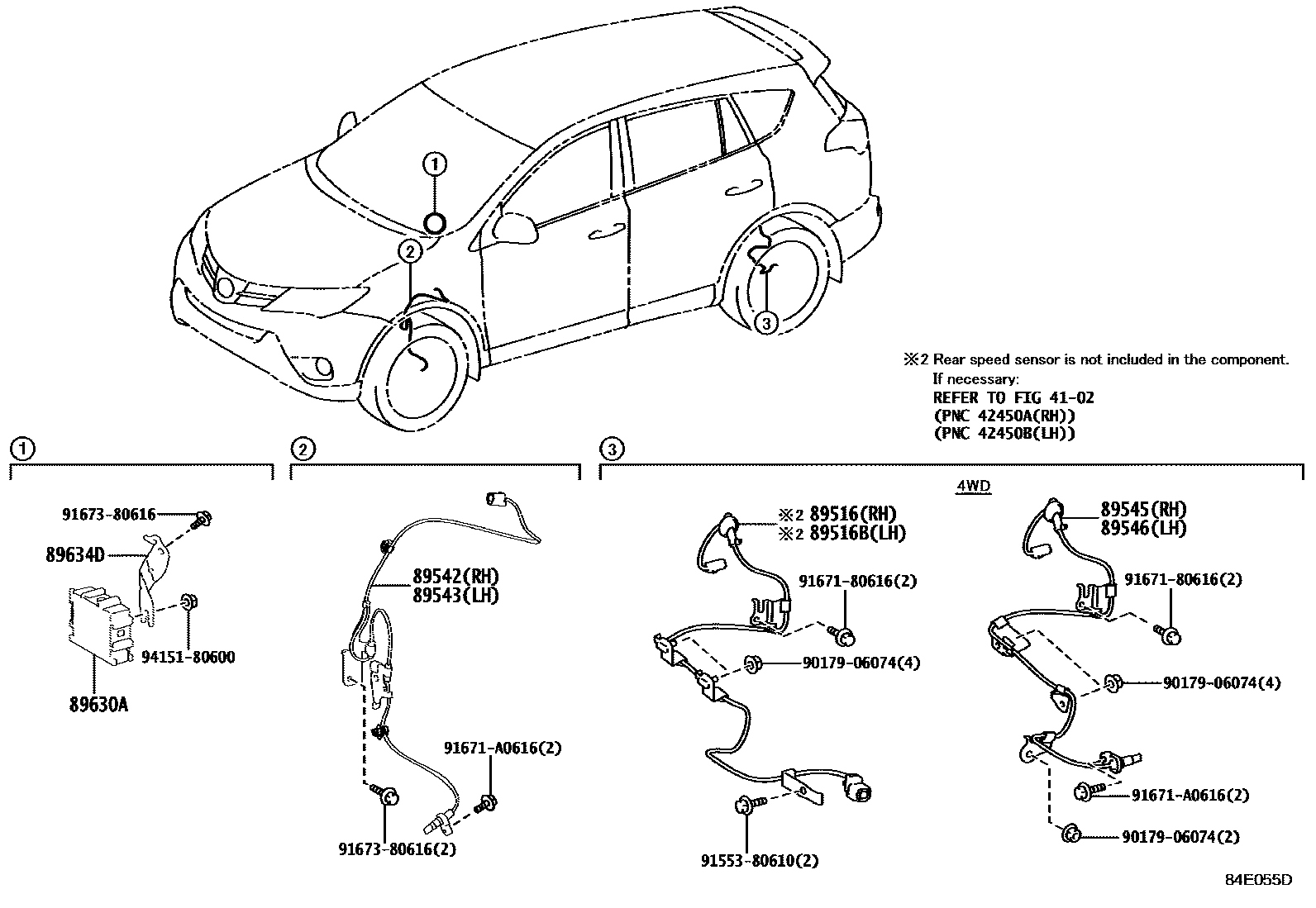

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

89516WIRE, SKID CONTROL SENSOR

main89516-42070iASA42201212-201506

main89516-78050iASA42201507-201510

89516BWIRE, SKID CONTROL SENSOR

main89516-42080iASA42201212-201506

main89516-78060iASA42201507-201510

89542SENSOR, SPEED, FRONT RH

main89542-42050iASA4#201212-201510

89543SENSOR, SPEED, FRONT LH

main89543-42050iASA4#201212-201510

89545SENSOR, SPEED, REAR RH

main89545-42050iASA44201212-201311

main89545-48070iASA44201311-201510

89546SENSOR, SPEED, REAR LH

main89546-42050iASA44201212-201311

main89546-48070iASA44201311-201510

89630ACOMPUTER ASSY, 4WD

main89630-42080iASA44201212-201310

main89630-42081iASA44201311-201504

P/N LABEL=8963042081

main89630-42082iASA44201510-201810

main89630-42110iASA44201504-201510

P/N LABEL=8963042110

89634DBRACKET, SKID CONTROL COMPUTER NO.3

main89634-42020iASA44201212-201510

9017906074

main90179-06074

9155380610

main91553-80610

9167180616

main91671-80616

91671A0616

main91671-A0616

9167380616

main91673-80616

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
