SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK(1/2) 0007 1ENGINE ROOM RELAY BLOCK(2/2) 0008 1COWL 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1STEERING 0013 1SEAT 0014 1DOOR,ROOF,FLOOR & BACK DOOR 0015 1DOOR,ROOF,FLOOR & BACK DOOR

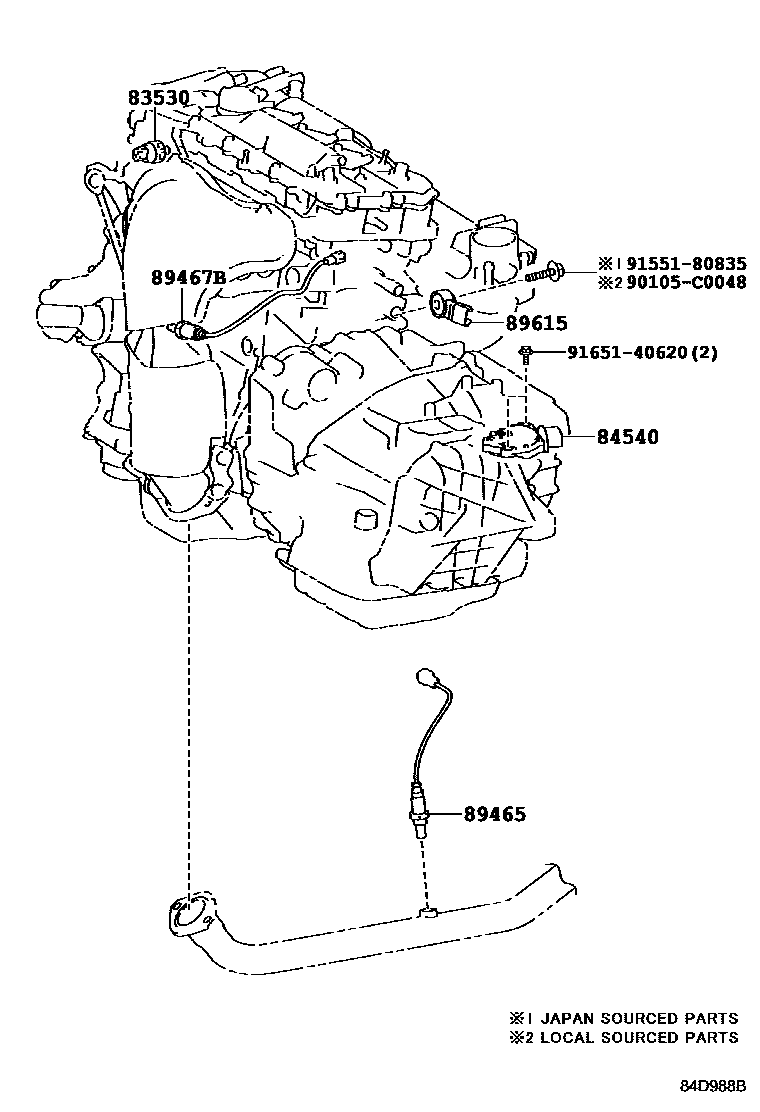

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iASA4#,AVA44201212-201810

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASA4#201212-201810

89465SENSOR, OXYGEN

main89465-42230iASA4#,AVA44201212-201810

89467BSENSOR, AIR FUEL RATIO

main89467-06200iAVA44201712-201810

MARK=89467-06200

main89467-0R060iASA4#201401-201510

(L),DENSO

main89467-0R060iASA4#201510-201810

MARK=89467-OR060

main89467-21020iASA4#201212-201401

main89467-21020iASA4#201510-201810

MARK 89467-28010

main89467-21020iASA4#201401-201510

(J),DENSO

main89467-48270iAVA44201712-201810

MARK=89467-48270

main89467-48270iAVA44201510-201712

89615SENSOR, KNOCK CONTROL

main89615-20090iASA4#,AVA44201212-201810

90105C0048

main90105-C0048

9155180835

main91551-80835

9165140620

main91651-40620

8 parts on this diagram · 15 diagrams in section
