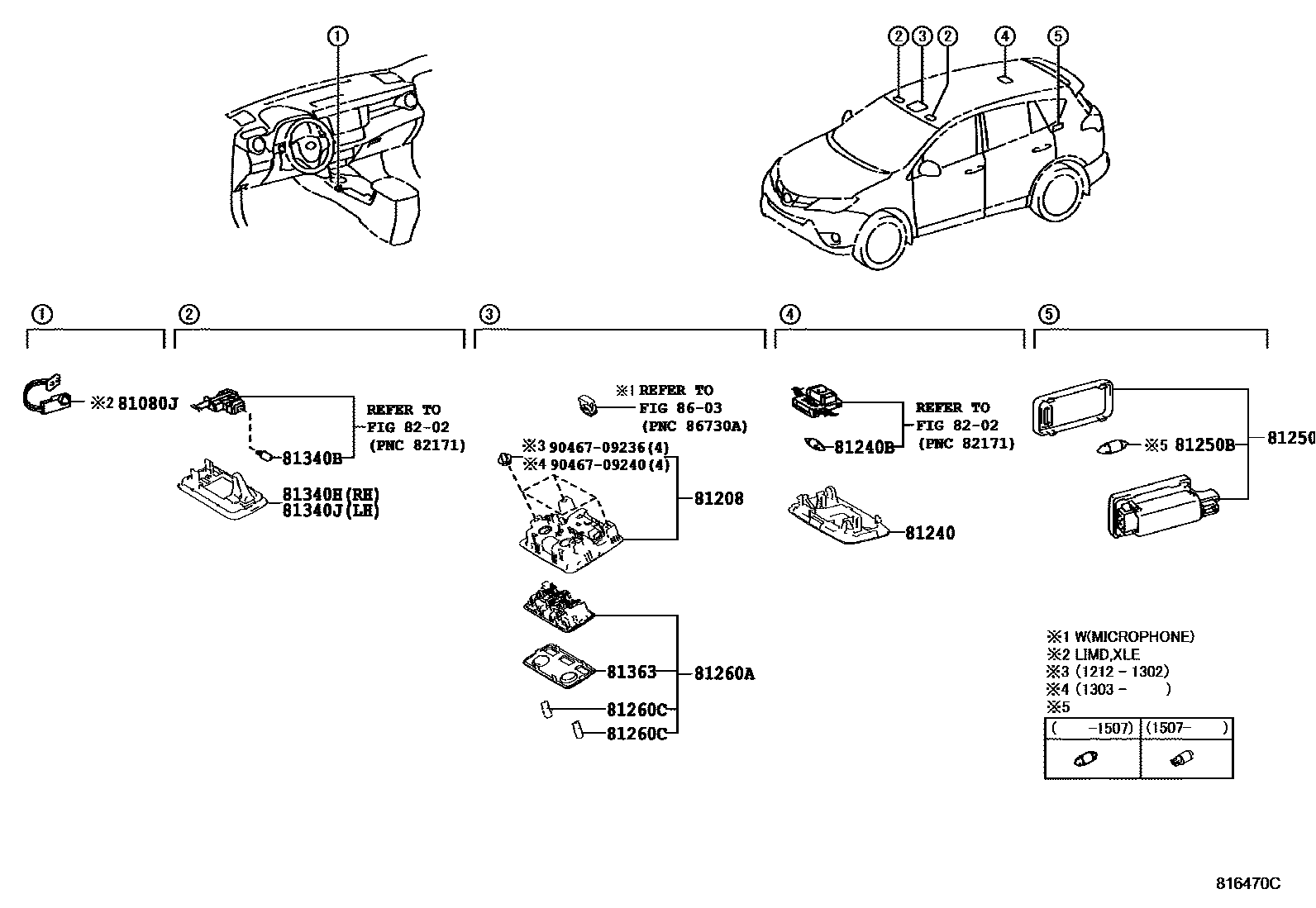

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81208LAMP SUB-ASSY, MAP
MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM2#
MOON ROOF-WITHOUT,LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM2#,3#
81240LAMP ASSY, ROOM, NO.1
LT.GRAY,TRIM2#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,3#,4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
81240BBULB, ROOM LAMP, NO.1
12V 8W
81250BBULB, ROOM LAMP, NO.2
12V 5W
12V 5W
81260ALAMP ASSY, MAP
LT.GRAY,TRIM1#,2#,3#,4#
LT.GRAY,TRIM1#,2#,4#
81260CBULB(FOR MAP LAMP)
12V 5W
81340BBULB (FOR VANITY LAMP)
12V 8W
81340HLAMP ASSY, VANITY, RH
81340JLAMP ASSY, VANITY, LH
81363LENS, ROOM LAMP, OUTER
8202WIRING & CLAMP
8603NAVIGATION & FRONT MONITOR DISPLAY
9046709236
main90467-09236
9046709240
main90467-09240
16 parts on this diagram · 3 diagrams in section
