REAR LICENSE PLATE LAMP

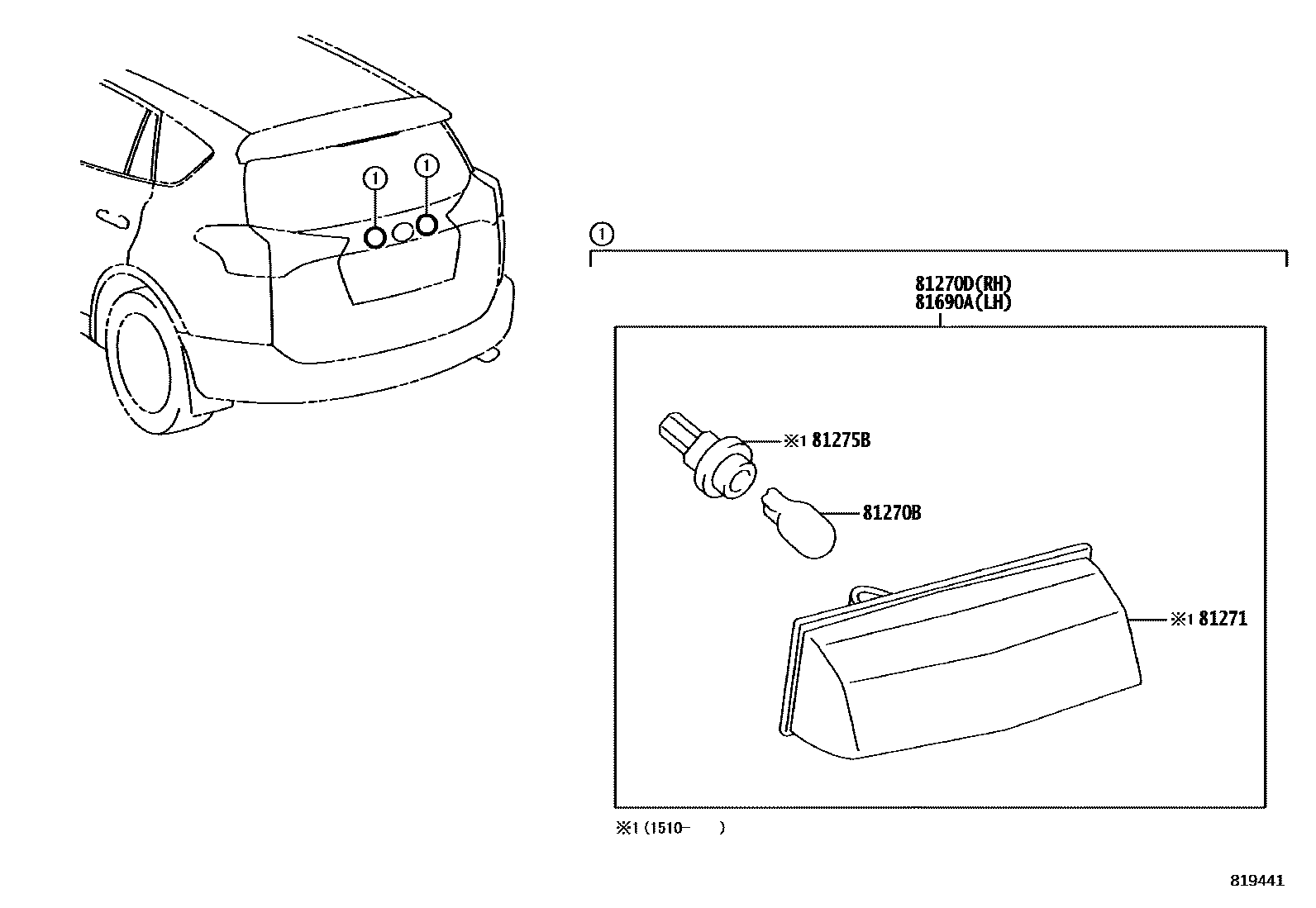

Parts diagram

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2i201212-201510

12V 5W

81270DLAMP ASSY, LICENSE PLATE, RH

main81204-42010i201212-201510

81271LENS, LICENSE PLATE LAMP

main81271-53011×2i201510-201810

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-99011×2i201510-201810

81690ALAMP ASSY, LICENSE PLATE, LH

main81204-42010i201212-201510

5 parts on this diagram · 1 diagram in section

REAR LICENSE PLATE LAMP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
