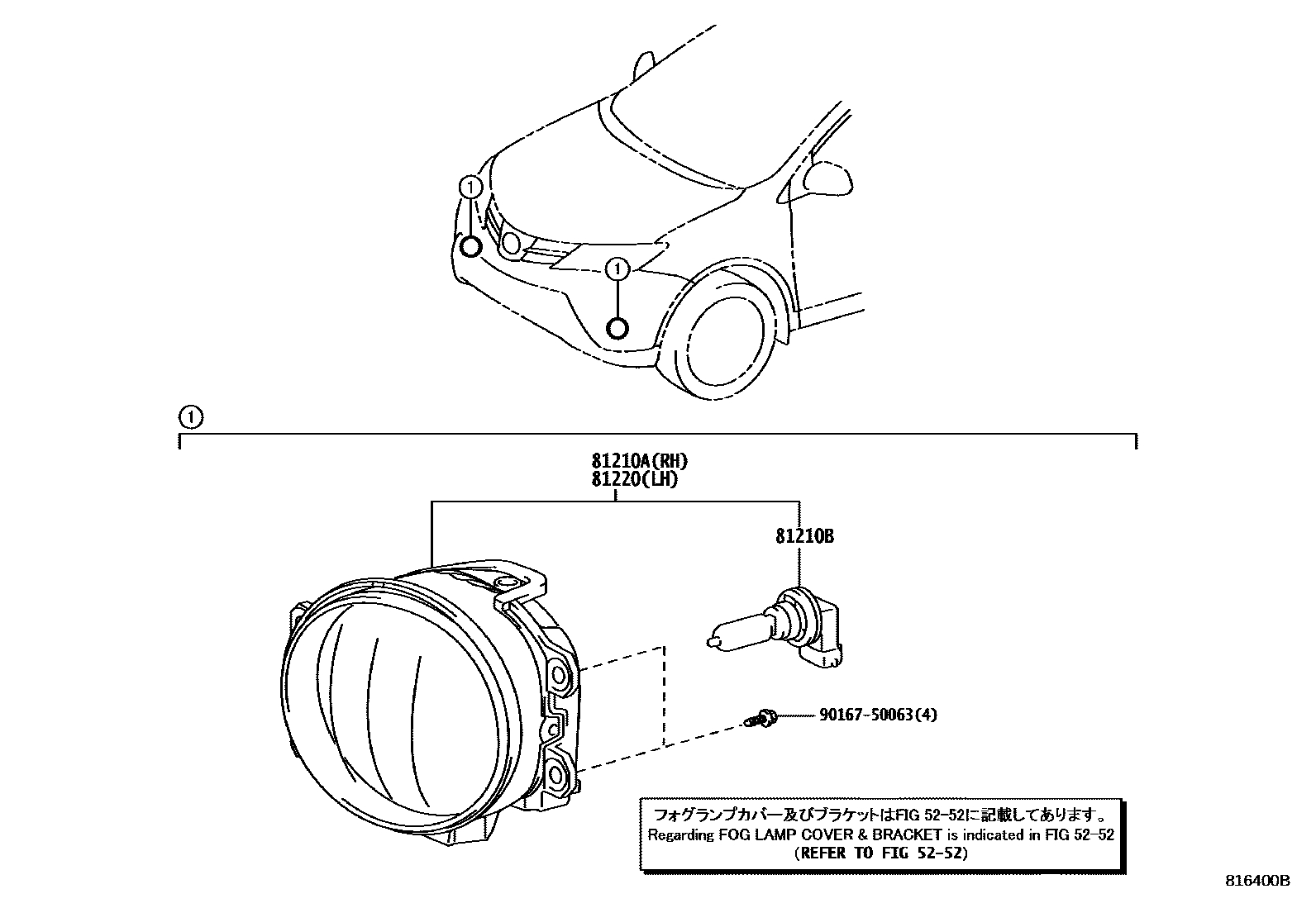

FOG LAMP

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

81210ALAMP ASSY, FOG, RH

main81210-47010iASA4#,AVA44..LIMD,SE,XLE; AVA44..XLE201510-201810

FRONT FOG LAMP-WITHOUT

main81210-60180iASA4#..LIMD,XLE201212-201411

main81210-60200iASA4#..LIMD,XLE201412-201510

81210BBULB, FOG LAMP

main90981-13090×2iASA4#..LIMD,XLE201212-201510

12V 19W

81220LAMP ASSY, FOG, LH

main81220-47010iASA4#,AVA44..LIMD,SE,XLE; AVA44..XLE201510-201810

FRONT FOG LAMP-WITHOUT

main81220-60100iASA4#..LIMD,XLE201212-201411

main81220-60120iASA4#..LIMD,XLE201412-201510

9016750063

main90167-50063

5 parts on this diagram · 2 diagrams in section
