HEADLAMP

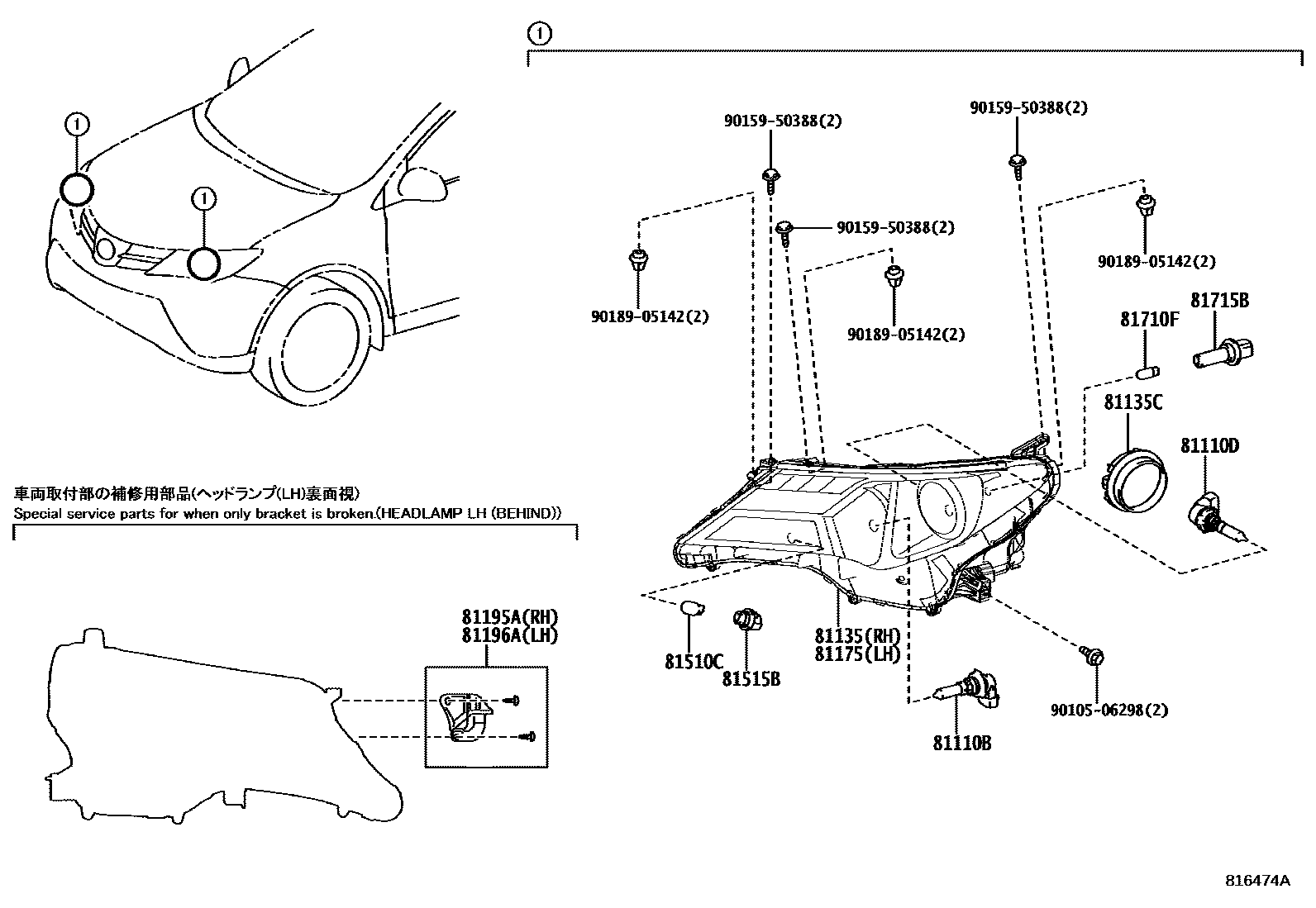

Parts diagram

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13092×2i201212-201510

12V 60W,HALOGEN

main90981-13102×2i201510-201810

12V 55W

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13092×2i201212-201510

12V 60W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-42590i201212-201305

main81130-42591i201305-201308

main81130-42592i201308-201510

main81130-42640i201510-201810

main81145-42670i201510-201810

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main81145-42680i201510-201708

KOREA SPEC&HEAD LAMP-LED

81135CCOVER, HEADLAMP BACK, NO.1

main81135-42520×2i201212-201510

81175UNIT ASSY, HEADLAMP, LH

main81170-42590i201212-201305

main81170-42591i201305-201308

main81170-42592i201308-201510

main81170-42640i201510-201810

main81185-42670i201510-201810

HEAD LAMP-LED; HEAD LAMP-LED, W(*AHB)

main81185-42680i201510-201708

KOREA SPEC&HEAD LAMP-LED

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-42010i201212-201510

main81195-42040i201510-201810

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-42010i201212-201510

main81196-42040i201510-201810

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15025×2i201510-201810

12V 28/8W,AMBER

main90981-15011×2i201510-201708

12V 21W,AMBER,KOREA SPEC&HEAD LAMP-LED

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60083×2i201212-201510

main90075-60028×2i201510-201708

KOREA SPEC&HEAD LAMP-LED

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11064×2i201212-201510

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main81138-22680×2i201212-201510

9010506298

main90105-06298

9015950388

main90159-50388

9018905142

main90189-05142

14 parts on this diagram · 3 diagrams in section
