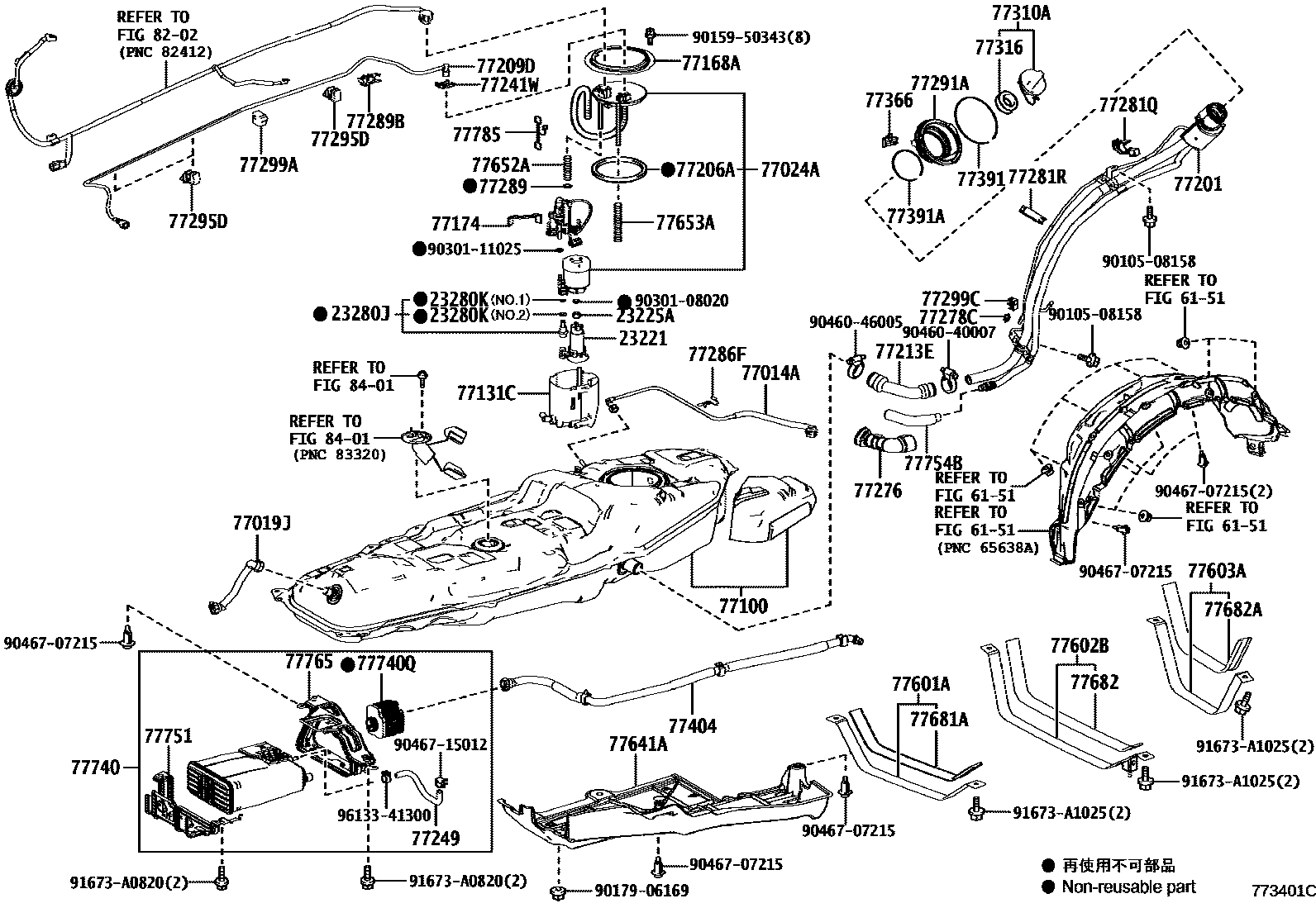

FUEL TANK & TUBE
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
6151SIDE MEMBER
77014ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.3
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77024APLATE SUB-ASSY, FUEL SUCTION
77100TANK ASSY, FUEL
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77249HOSE, FUEL EMISSION
77276PROTECTOR, FUEL HOSE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77281QCLAMP, FUEL FILLER, NO.1
77281RCLAMP, FUEL FILLER PIPE, NO.2
77286FCLAMP, FUEL TUBE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77295DGROMMET, FUEL TUBE
77299ACLAMP, FUEL TUBE, NO.5
77299CCLAMP (FOR FUEL FILLER PIPE)
77316GASKET, FUEL TANK CAP
77366SPRING, FUEL FILLER OPENING LID HINGE
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77682SEAT, FUEL TANK BAND, LH
77682ASEAT, FUEL TANK BAND, NO.2
77740CANISTER ASSY, CHARCOAL
77740QLEAK DETECTION PUMP SUB-ASSY, CHARCOAL CANISTER
77751BRACKET, CHARCOAL CANISTER BASE
77754BHOSE, CHARCOAL CANISTER OUTLET
77765PROTECTOR, CHARCOAL CANISTER
77785HARNESS, FUEL PUMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9010508158
main90105-08158
9015950343
main90159-50343
9017906169
main90179-06169
9030108020
main90301-08020
9030111025
main90301-11025
9046040007
main90460-40007
9046046005
main90460-46005
9046707215
main90467-07215
9046715012
main90467-15012
91673A0820
main91673-A0820
91673A1025
main91673-A1025
9613341300
main96133-41300
64 parts on this diagram · 8 diagrams in section
