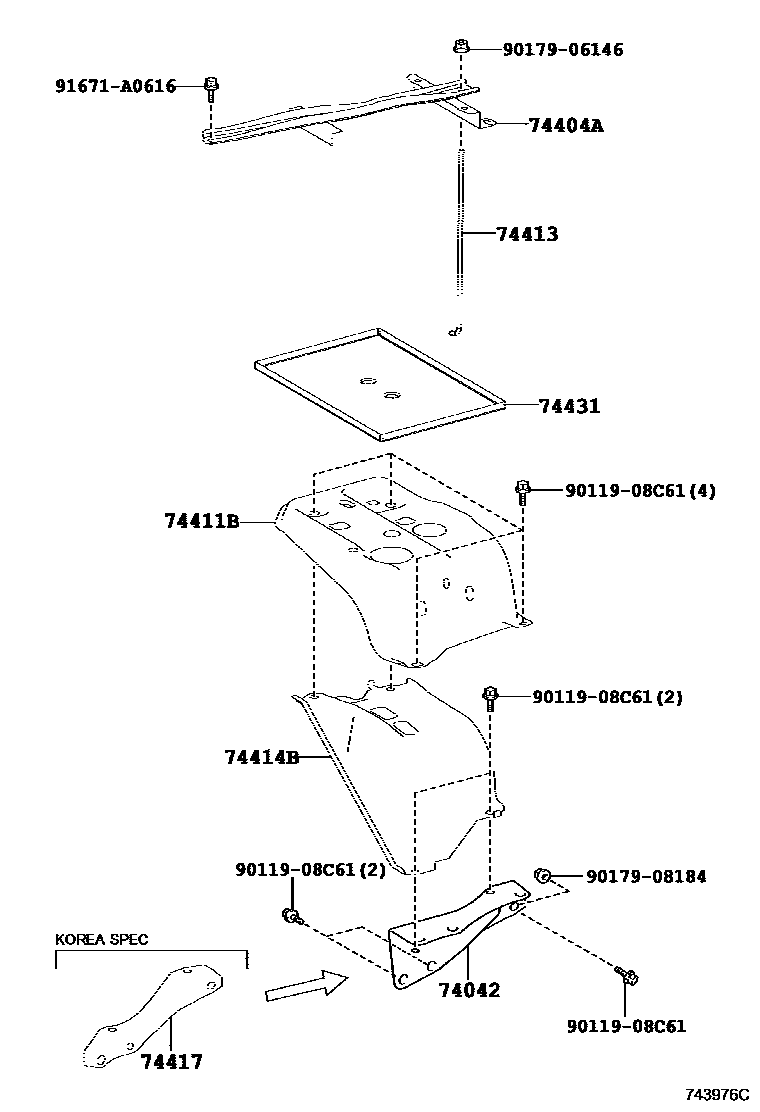

BATTERY CARRIER

0001 1 0002 1

74042BRACKET SUB-ASSY, BATTERY

main74401-78010iASA4#201410-201810

74404ACLAMP SUB-ASSY, BATTERY

main74404-42190iASA4#201212-201810

main74404-42250iAVA44201510-201810

74411BBRACKET, BATTERY, FRONT

main74411-42040iASA4#201212-201410

main74411-78020iASA4#201410-201810

74413BOLT, BATTERY CLAMP

main74451-10060iASA4#201212-201502

main74451-10061iASA4#201503-201810

sub74451-42030

74414BREINFORCEMENT, BATTERY BRACKET

main74414-42011iASA4#201212-201410

main74414-78020iASA4#201410-201810

74417BRACKET, BATTERY CARRIER

main74417-42030iASA4#201212-201410

74431TRAY, BATTERY

main74431-42140iASA4#201212-201810

9011908C61

main90119-08C61

9017906146

main90179-06146

9017908184

main90179-08184

91671A0616

main91671-A0616

11 parts on this diagram · 2 diagrams in section
